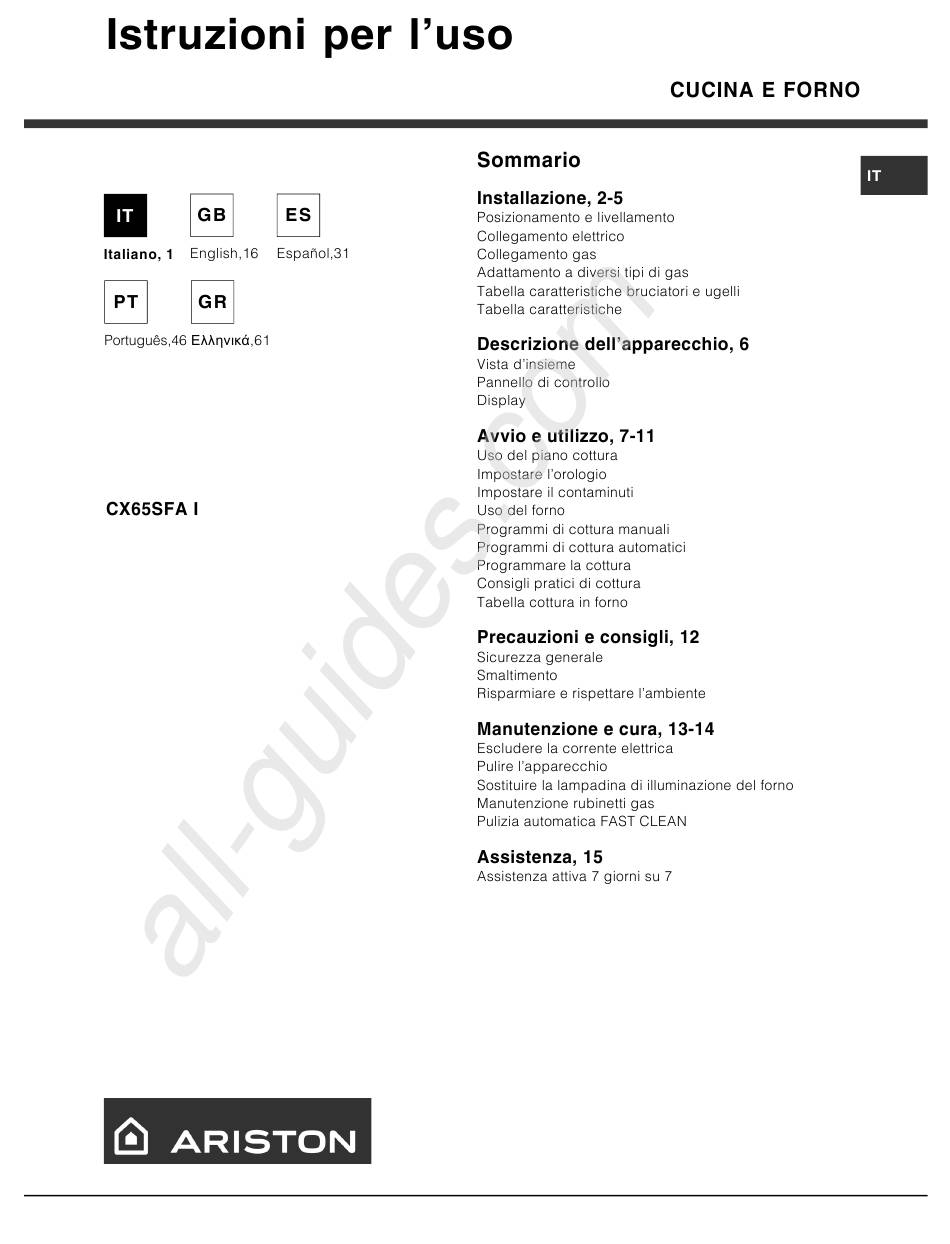

- Page 1 All manuals and user guides at all-guides.com...
- Page 2 All manuals and user guides at all-guides.com vedi figure vedi figura A vedi figura B...
- Page 3 All manuals and user guides at all-guides.com HOOD Min. vedi figura vedi figura vedi sotto vedi sotto vedi tabella Dati tecnici...
- Page 4 All manuals and user guides at all-guides.com vedi sotto vedi figura vedi tabella Caratteristiche bruciatori e ugelli...
- Page 5 All manuals and user guides at all-guides.com Tabella 1 Gas Liquido Gas Naturale TABELLA CARATTERISTICHE Dimensioni 32x43,5x40 cm Forno HxLxP Volume lt. 56 Dimensioni utili larghezza cm 42 del cassetto profondità cm 44 scaldavivande altezza cm 8,5 adattabili a tutti i tipi di gas indicati Bruciatori nella targhetta caratteristiche Tensione e...
- Page 6 All manuals and user guides at all-guides.com Coperchio in vetro Bruciatore a gas Piano di contenimento per eventuali trabocchi Griglia del piano di lavoro GUIDE Pannello di controllo di scorrimento dei ripiani posizione 5 Ripiano GRIGLIA posizione 4 posizione 3 Ripiano LECCARDA posizione 2 posizione 1...
- Page 7 All manuals and user guides at all-guides.com vedi figura Bruciatore ø Diametro Recipienti (cm) Rapido (R) 24 - 26 Semi Rapido (S) 16 - 20 Ausiliario (A) 10 - 14 Tripla Corona (TC) 24 - 26...
- Page 8 All manuals and user guides at all-guides.com vedi programmi di cottura vedi programmi di cottura...
- Page 9 All manuals and user guides at all-guides.com temperatura prestabilite C.O.P.® Cottura Ottimale Programmata freddo caldo...
- Page 10 All manuals and user guides at all-guides.com...
- Page 11 All manuals and user guides at all-guides.com Programmi Alimenti Peso Posizione dei ripiani Preriscaldamento Temperatura Durata (Kg) consigliata cottura (°C) (minuti) guide guide standard scorrevoli Multilivello* Pizza su 2 ripiani 2 e 4 220-230 20-25 Crostate su 2 ripiani/torte su 2 ripiani 2 e 4 30-35 Pan di spagna su 2 ripiani (su eccarda)
- Page 12 All manuals and user guides at all-guides.com vedi Programmi vedi Manutenzione e cura...
- Page 13 All manuals and user guides at all-guides.com cavità lampadina guarnizione coperchio vedi figura Questa operazione deve essere effettuata da un tecnico autorizzato dal costruttore.
- Page 14 All manuals and user guides at all-guides.com vedi Programmare la fine della pulizia automatica...
- Page 15 All manuals and user guides at all-guides.com...
- Page 16 All manuals and user guides at all-guides.com...
- Page 17 All manuals and user guides at all-guides.com see figure see figure A see figure B...
- Page 18 All manuals and user guides at all-guides.com HOOD Min. see figure see figure below see below see Technical data table...
- Page 19 All manuals and user guides at all-guides.com see below figure see Burner and nozzle specifications table...
-
Page 20: Energy Label
All manuals and user guides at all-guides.com Table 1 Liquid gas Natural gas Burner Diameter Thermal power Bypass Nozzle Capacity* Nozzle Capacity* (mm) kW (p.c.s.*) 1/100 1/100 1/100 Nominal Reduced (mm) (mm) (mm) Triple.ring (TC) 3.25 1.50 Rapid (Large) 3.00 0.70 Semi-rapid 1.90... - Page 21 All manuals and user guides at all-guides.com Glass cover* Gas burner Containment surface for spills Hob grid GUIDE RAILS Control panel for the sliding racks position 5 GRILL rack position 4 position 3 DRIPPING PAN rack position 2 position 1 Adjustable foot Adjustable foot THERMOSTAT...
- Page 22 All manuals and user guides at all-guides.com see figure Burner ø Cookware Diameter (cm) Fast (R) 24 - 26 Semi Fast (S) 16 - 20 Auxiliary (A) 10 - 14 Triple Crown (TC) 24 - 26...
- Page 23 All manuals and user guides at all-guides.com see Cooking Modes see Cooking Modes...
- Page 24 All manuals and user guides at all-guides.com temperature pre-set C.O.P.® Programmed Optimal Cooking preheated...
- Page 25 All manuals and user guides at all-guides.com...
- Page 26 All manuals and user guides at all-guides.com Cooking Foods W eight Rack position Preheating Recom m ended Cooking duration m odes (in kg) tem perature (m inutes) (°C) standard sliding guide guide rails rails M ultilevel* Pizzaon2racks 2and4 1and3 220-230 20-25 Pies on tworacks/cakes on2racks 2and4...
- Page 27 All manuals and user guides at all-guides.com see Cooking modes Care and Maintenance...
- Page 28 All manuals and user guides at all-guides.com Oven compartment Lamp Seal Glass door see diagram This procedure must be performed by a qualified technician authorised by the manufacturer.
- Page 29 All manuals and user guides at all-guides.com Programming the automatic cleaning end time...
- Page 30 All manuals and user guides at all-guides.com...
- Page 31 All manuals and user guides at all-guides.com...
- Page 32 All manuals and user guides at all-guides.com ver las figuras ver la figura A ver la figura B...
- Page 33 All manuals and user guides at all-guides.com HOOD Min. ver la figura ver la figura ver más adelante ver la tabla de Datos técnicos ver más adelante...
- Page 34 All manuals and user guides at all-guides.com ver la figura ver más adelante ver la tabla “Características de los quemadores e inyectores”...
-
Page 35: Energy Label
All manuals and user guides at all-guides.com Tabla 1 Gas Líquido Gas Natural Quemador Diámetro Potencia térmica By-pass inyector caudal* inyector caudal* (mm) kW (p.c.s.*) 1/100 1/100 1/100 (mm) (mm) (mm) Nominal Reducido Triple Corona 3.25 1.50 (TC) Rápido 3.00 0.70 (Grande)(R) Semi Rápido... - Page 36 All manuals and user guides at all-guides.com Tapa de vidrio* Quemador a gas Superficie de retención de posibles desbordes Parrilla de la superficie de trabajo GUÍAS de deslizamiento Panel de control de las bandejas posición 5 Bandeja PARRILLA posición 4 posición 3 Bandeja GRASERA posición 2...
- Page 37 All manuals and user guides at all-guides.com ver la figura Quemador ø Diámetro Recipientes (cm) Rápido (R) 24 - 26 Semi Rápido (S) 16 - 20 Auxiliar (A) 10 - 14 Corona Triple (TC) 24 - 26...
- Page 38 All manuals and user guides at all-guides.com ver programas de cocción programas de cocción...
- Page 39 All manuals and user guides at all-guides.com temperatura preestablecidas C.O.P.® Cocción Óptima Programada frío caliente...
- Page 40 All manuals and user guides at all-guides.com...
- Page 41 All manuals and user guides at all-guides.com Programas Alimentos Peso Posición de las bandejas Precalentamiento Temperatura Duración (Kg) aconsejada de la (°C) cocción (minutos) guías guías estándar deslizables Multinivel* Barbacoa* Gratin* Baja temperatura Pizza automática automático Tortas automático Carne automático...
- Page 42 All manuals and user guides at all-guides.com ver Programas ver Mantenimiento y cuidados...
- Page 43 All manuals and user guides at all-guides.com Horno Lampara Junta Vidrio ver la figura Esta operación la debe efectuar un técnico autorizado por el fabricante.
- Page 44 All manuals and user guides at all-guides.com ver Programar el final de la limpieza automática...
- Page 45 All manuals and user guides at all-guides.com...
- Page 46 All manuals and user guides at all-guides.com...
- Page 47 All manuals and user guides at all-guides.com ver figuras ver figura A ver figura B...
- Page 48 All manuals and user guides at all-guides.com HOOD Min. Esta distância deve ser de 700 mm. se as prateleiras forem de material inflamável vide a figura A empresa exime-se de qualquer responsabilidade se estas regras não forem o b e d e c i d a s . ver figura veja abaixo vide abaixo...
- Page 49 All manuals and user guides at all-guides.com vide abaixo ver figura ver tabela “Características dos queimadores e dos bicos”);...
- Page 50 All manuals and user guides at all-guides.com Tabela 1 Gás Líquido Gás Natural Queimador Diâmetro Potência térmica By-pass bico vazão* bico vazão* (mm.) kW (p.c.s.*) 1/100 1/100 1/100 (mm) (mm) (mm) Nominal Reduzida Tripla Coroa 3.25 1.50 (TC) Rápido 3.00 0.70 (Grande)(R) Semi Rápido...
- Page 51 All manuals and user guides at all-guides.com Tampa de vidro* Queimador a gás Plano de retenção dos eventuais vazamentos Grade do plano de trabalho GUIAS Painel de comandos de escorrimento das prateleiras posição 5 Prateleira da GRADE posição 4 posição 3 Prateleira da BANDEJA PINGADEIRA posição 2 posição 1...
- Page 52 All manuals and user guides at all-guides.com vide a figura Queimador ø Diâmetro Recipientes (cm) Rápido (R) 24 - 26 Semi Rápido (S) 16 - 20 Auxiliar (A) 10 - 14 Coroa Tripla (TC) 24 - 26...
- Page 53 All manuals and user guides at all-guides.com veja os Programas...
- Page 54 All manuals and user guides at all-guides.com temperatura predefinidas C.O.P.® Cozedura Óptima Programada frio quente MULTINÍVEL...
- Page 55 All manuals and user guides at all-guides.com...
- Page 56 All manuals and user guides at all-guides.com Programas Alimentos Peso Posição das prateleiras Pré-aquecimento Temperatura Duração (Kg) aconselhada (c°) cozedura (minutos) Guias Guias padrão corrediças Multinível Pizza em2 prateleiras 2 e 4 1 e 3 220-230 20-25 Tortas doces emduasprateleiras/bolosemduas prateleiras 2 e 4 1 e 3 30-35...
- Page 57 All manuals and user guides at all-guides.com vide os Programas vide Manutenção e cuidados...
- Page 58 All manuals and user guides at all-guides.com Compartimento do forno Lãmpada Juntado Vidro...
- Page 59 All manuals and user guides at all-guides.com vide Programar o fim da limpeza automática...
- Page 60 All manuals and user guides at all-guides.com...
- Page 61 All manuals and user guides at all-guides.com...
- Page 62 All manuals and user guides at all-guides.com...
- Page 63 All manuals and user guides at all-guides.com HOOD Min.
- Page 64 All manuals and user guides at all-guides.com...
- Page 65 All manuals and user guides at all-guides.com Ðßíáêáò 1 ÕãñáÝñéï Öõóéêü áÝñéï ÊáõóôÞñáò ÄéÜìåôñï ÈåñìéêÞ éó÷ýò Áêñïöýóéï ðáñï÷Þ* Áêñïöýóéï ðáñï÷Þ By Pass ò (mm) kW (p.c.s.*) 1/100 1/100 1/100 Ïíïìáóôé ÌåéùìÝ (mm) (mm) (mm) êÞ íï ÔñéðëÞ 3.25 1.50 Êïñþíá (ÔC) Ôá÷ýò...
- Page 66 All manuals and user guides at all-guides.com Γυάλινο καπάκι* Καυστήρας αερίου Επιφάνεια συγκράτησης ενδεχόμενης υπερχείλισης Πλέγμα πάγκου εργασίας ΟΔΗΓΟΙ Πίνακας ελέγχου ολίσθησης των επιπέδων θέση 5 Επίπεδο ΠΛΕΓΜΑΤΟΣ θέση 4 θέση 3 Επίπεδο ΛΙΠΟΣΥΛΛΕΚΤΗ θέση 2 θέση 1 Ποδαράκι ρύθμισης Ποδαράκι...
- Page 67 All manuals and user guides at all-guides.com ÊáõóôÞñáò ø ÄéÜìåôñïò Óêåõþí (cm) Ôá÷ýò (R) Çìé-ôá÷ýò (S) Åöåäñéêüò (Á) ÔñéðëÞ Êïñþíá (ÔC)
- Page 68 All manuals and user guides at all-guides.com...
- Page 69 All manuals and user guides at all-guides.com...
- Page 70 All manuals and user guides at all-guides.com...
- Page 71 All manuals and user guides at all-guides.com ÐñïãñÜììáôá Ôñüöéìá ÂÜñïò ÈÝóç ôùí åðéðÝäùí ÐñïèÝñìáíóç Ðñïôåéíüìåíç ÄéÜñêåéá èåñìïêñáóßá øçóßìáôïò óôÜíôáñ óõñüìåíïé (Kg) (ëåðôÜ) ïäçãïß ïäçãïß (°C) ÐïëëáðëÜ Ðßôóá óå 2 èÝóåéò 2 êáé 4 1 êáé 3 Íáé 220-230 20-25 åðßðåäá* ÊñïóôÜôåò...
- Page 72 All manuals and user guides at all-guides.com...
- Page 73 All manuals and user guides at all-guides.com...
- Page 74 All manuals and user guides at all-guides.com...
- Page 75 All manuals and user guides at all-guides.com...
- Page 76 All manuals and user guides at all-guides.com...
