energy. That electrical energy is used to charge the
battery of your OPTIMIZER Smart Mini IPG.
6.5

Removal and Installation of the Plug Adapter

Your Vesta Charger system includes an AC Adapter installed with
a U.S. Plug Adapter. If a different Plug Adapter is required, the AC
Adapter allows the option of removing and installing a different
Plug Adapter.
6.5.1
To remove the Plug Adapter from the AC Adapter,
perform the following steps:
Push
Upwards to
Unlock and
Remove
Plug
Adapter

Removal of the Plug Adapter

1. Grasp the AC Adapter in your hand and place
your thumb on the ridged area below the plug
prongs of the Plug Adapter.
2. Using your thumb, push up on the Plug Adapter
to unlock it from the AC Adapter. See Figure 5.
3. Slide the Plug Adapter upwards to remove it from
the AC Adapter.

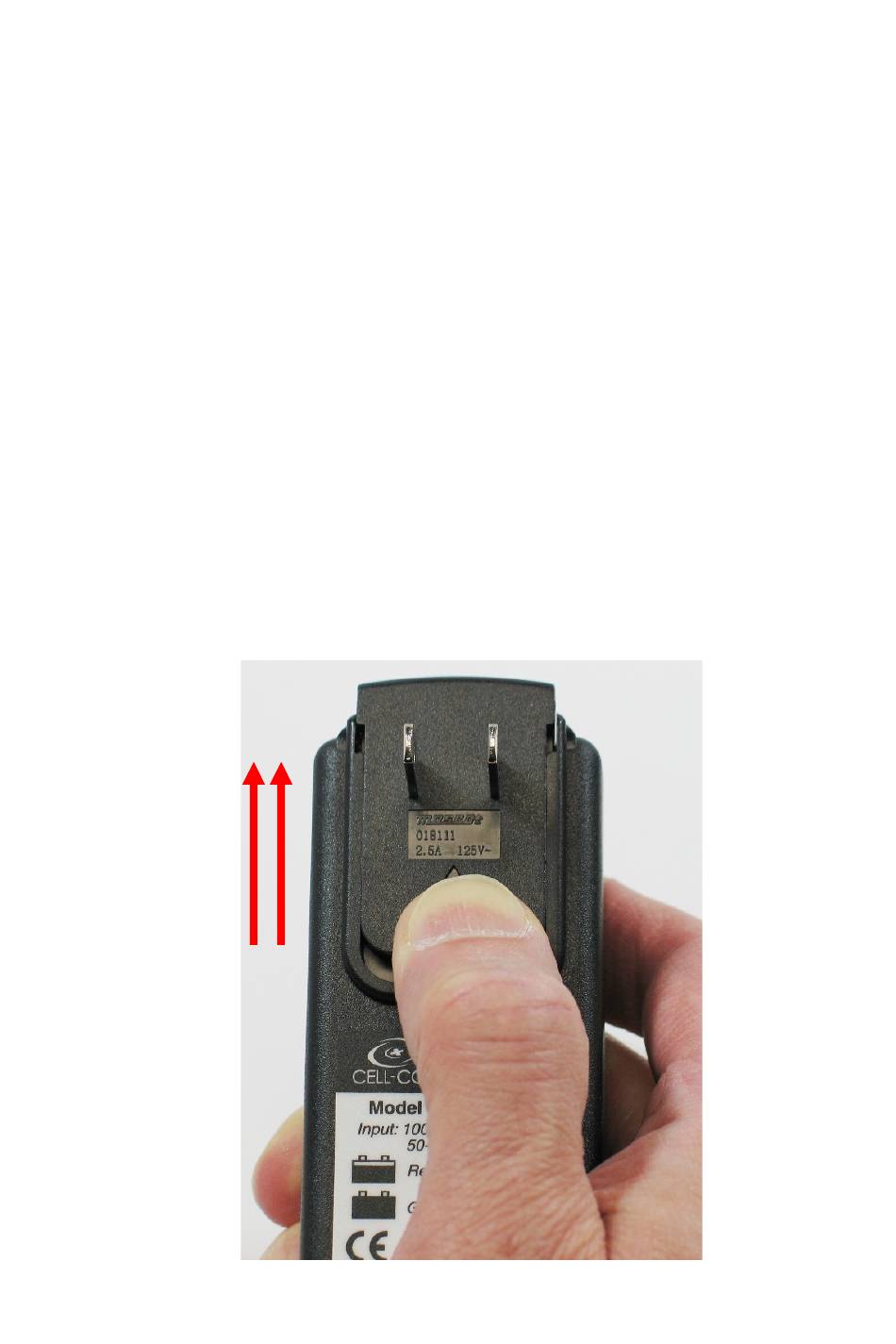

Figure 5: Removing the Plug Adapter
