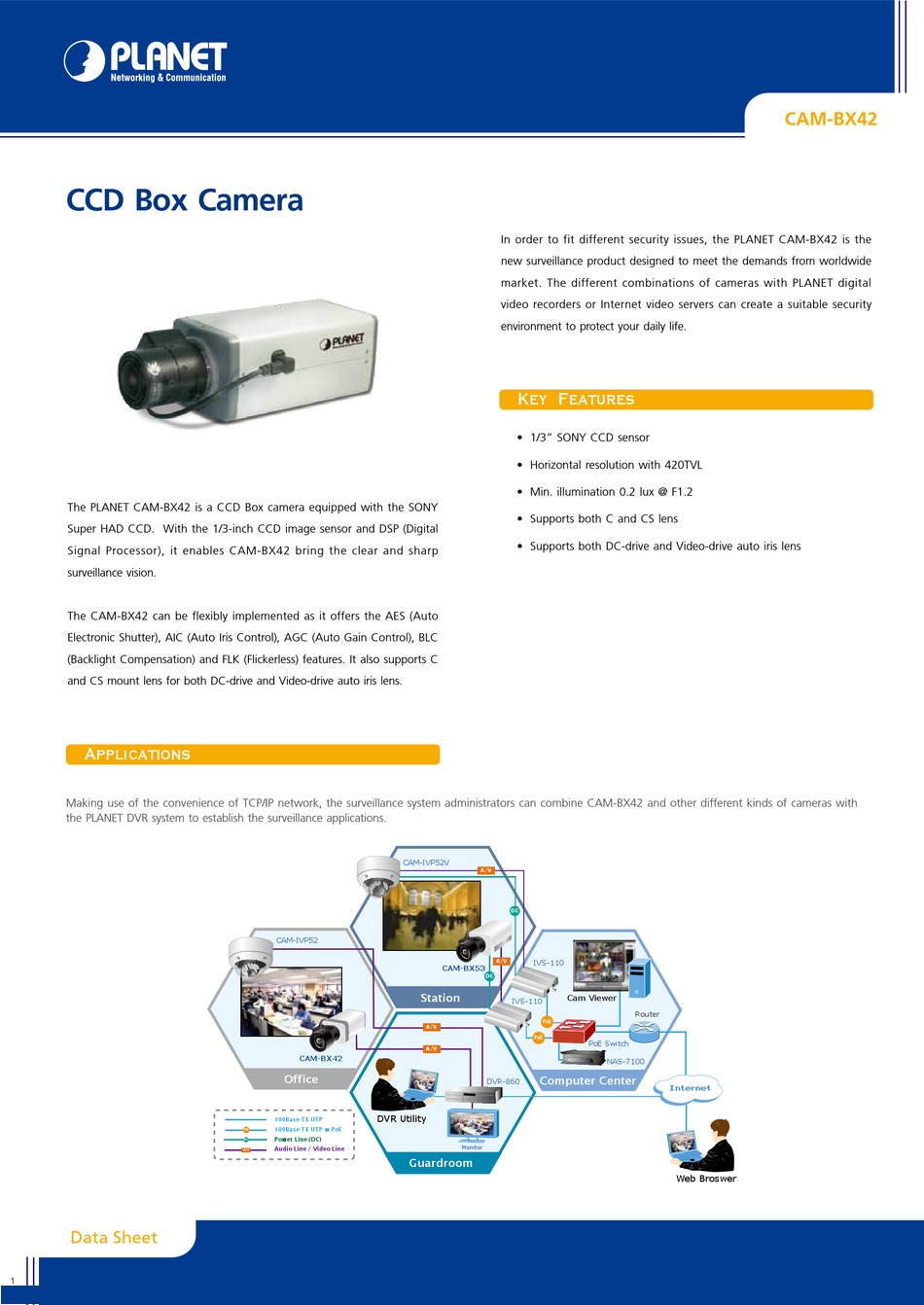

Planet CAM-BX42 Datasheet

CCD Box Camera
The PLANET CAM-BX42 is a CCD Box camera equipped with the SONY
Super HAD CCD. With the 1/3-inch CCD image sensor and DSP (Digital
Signal Processor), it enables CAM-BX42 bring the clear and sharp
surveillance vision.
The CAM-BX42 can be flexibly implemented as it offers the AES (Auto
Electronic Shutter), AIC (Auto Iris Control), AGC (Auto Gain Control), BLC
(Backlight Compensation) and FLK (Flickerless) features. It also supports C
and CS mount lens for both DC-drive and Video-drive auto iris lens.
Applications
Making use of the convenience of TCP/IP network, the surveillance system administrators can combine CAM-BX42 and other different kinds of cameras with
the PLANET DVR system to establish the surveillance applications.

Data Sheet

1
CAM-IVP52V
CAM-IVP52
CAM-BX42
Office
DVR Utility
100Base-TX UTP
100Base-TX UTP w PoE
PoE
Power Line (DC)
DC
Audio Line / Video Line
A/V
Guardroom
In order to fit different security issues, the PLANET CAM-BX42 is the
new surveillance product designed to meet the demands from worldwide
market. The different combinations of cameras with PLANET digital
video recorders or Internet video servers can create a suitable security
environment to protect your daily life.
Key Features
• 1/3" SONY CCD sensor
• Horizontal resolution with 420TVL
• Min. illumination 0.2 lux @ F1.2
• Supports both C and CS lens
• Supports both DC-drive and Video-drive auto iris lens
A/V
DC
A/V
IVS-110
CAM-BX53
DC
Station
Cam Viewer
IVS-110
PoE
A/V
PoE
PoE Switch
A/V
Computer Center
DVR-860
Monitor
Router
NAS-7100
Internet
Web Broswer
CAM-BX42
