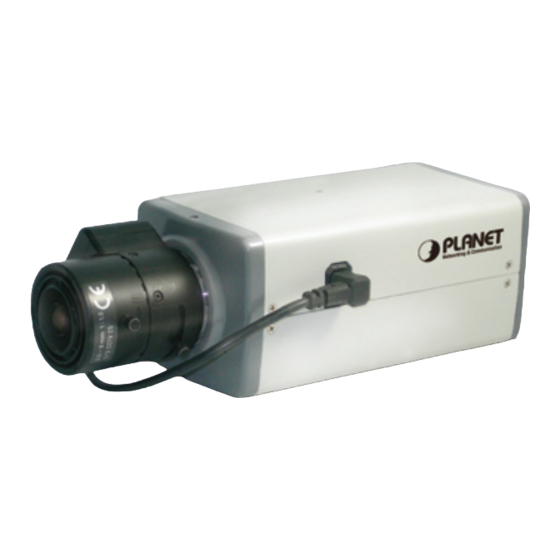

Planet 420TVL Quick Installation Manual

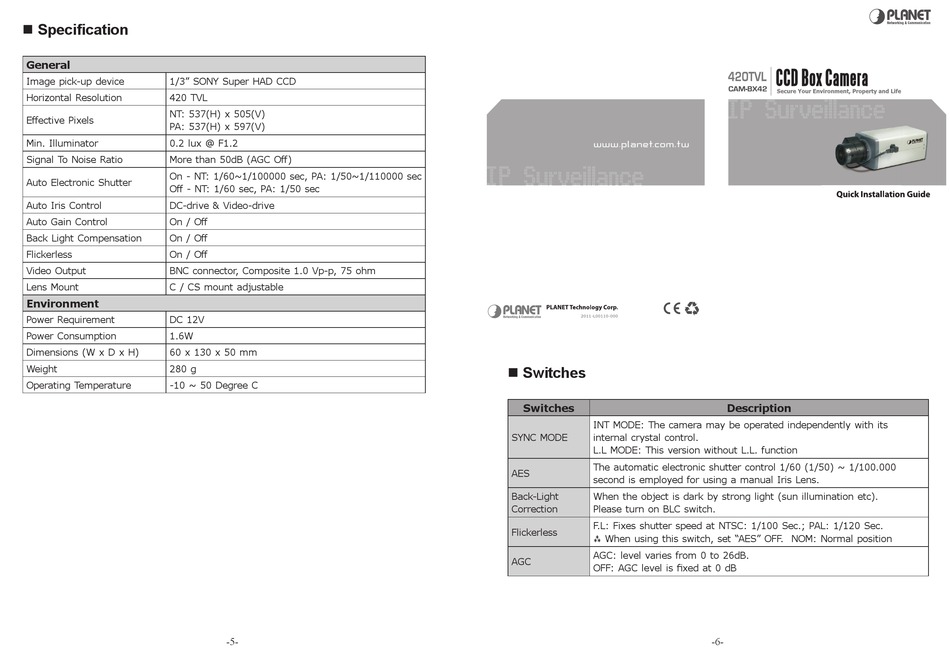

n Specification
General
Image pick-up device 1/3" SONY Super HAD CCD
Horizontal Resolution 420 TVL
NT: 537(H) x 505(V)
Effective Pixels
PA: 537(H) x 597(V)
Min. Illuminator 0.2 lux @ F1.2
Signal To Noise Ratio More than 50dB (AGC Off)
On - NT: 1/60~1/100000 sec, PA: 1/50~1/110000 sec
Auto Electronic Shutter
Off - NT: 1/60 sec, PA: 1/50 sec
Auto Iris Control DC-drive & Video-drive
Auto Gain Control On / Off
Back Light Compensation On / Off
Flickerless On / Off
Video Output BNC connector, Composite 1.0 Vp-p, 75 ohm
Lens Mount C / CS mount adjustable
Environment
Power Requirement DC 12V
Power Consumption 1.6W
Dimensions (W x D x H) 60 x 130 x 50 mm
Weight 280 g
Operating Temperature -10 ~ 50 Degree C
-5-
n Switches
Switches
INT MODE: The camera may be operated independently with its
SYNC MODE internal crystal control.
L.L MODE: This version without L.L. function
The automatic electronic shutter control 1/60 (1/50) ~ 1/100.000
AES
second is employed for using a manual Iris Lens.
Back-Light When the object is dark by strong light (sun illumination etc).
Correction Please turn on BLC switch.
F.L: Fixes shutter speed at NTSC: 1/100 Sec.; PAL: 1/120 Sec.
Flickerless
ù When using this switch, set "AES" OFF. NOM: Normal position
AGC: level varies from 0 to 26dB.
AGC
OFF: AGC level is fixed at 0 dB
Description
-6-
