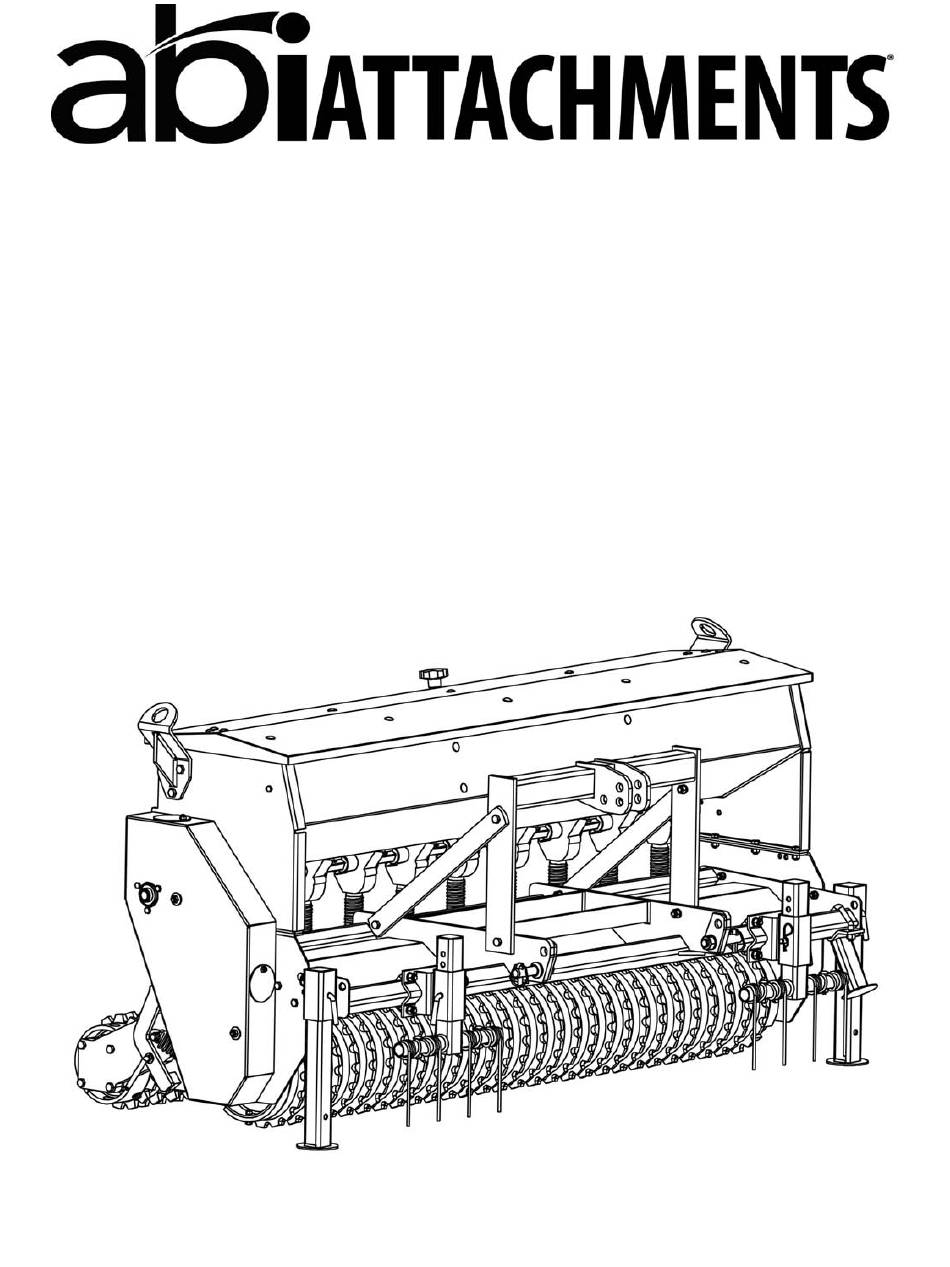

Operator's Manual

COMMAND SEEDER

Full-width primary seeder

ASR74CSTRL

(serial #328120 & above)

The operator's manual is a technical service guide and must always accompany the machine.

Manual 980-396B

January 2017

Table of Contents

Summary of Contents for ABI Attachments ASR74CSTRL

Page 1 Operator’s Manual COMMAND SEEDER Full-width primary seeder ASR74CSTRL (serial #328120 & above) The operator’s manual is a technical service guide and must always accompany the machine. Manual 980-396B January 2017...
Page 2: Signal Words
SAFETY Take note! This safety alert symbol found throughout this manual is used to call your attention to instructions involving your personal safety and the safety of others. Failure to follow these instructions can result in injury or death. This symbol means: ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Page 3 INDEX 1 - GENERAL INFORMATION 1.01 - General 1.02 - Warranty Information 1.03 - Model and Serial Number ID 2 - SAFETY PRECAUTIONS 2.01 - Preparation 2.02 - Starting and Stopping 2.03 - Messages and Signs 3 - OPERATION 3.01 - Operational Safety 3.02 - Pre-Operational Check 3.03 - Attaching to the Tractor 3.04 - General Instructions for Use...
Page 4: General Information
’ OMMAND EEDER PERATOR ANUAL 1 - GENERAL INFORMATION Thank you and congratulations for having chosen our implement. Your new Command Seeder is a technologically advanced machine constructed of high quality, sturdy components that will fulfill your working expectations. The Command Seeder is the ideal machine for commercial contractors and anywhere the combination of lower labor costs and a professionally finished job is essential.
Page 5: Model And Serial Number Id
’ OMMAND EEDER PERATOR ANUAL 1.03 - Model and Serial Number ID Attached to the frame is an ID plate showing the model and the serial number. Record your implement model and serial number in the space provided below. ABI needs this information to give you prompt, efficient service when you order parts.
Page 6: Safety Precautions
’ OMMAND EEDER PERATOR ANUAL 2 - SAFETY PRECAUTIONS Safety is the primary concern in the design and manufacture of our products. Unfortunately our efforts to provide safe equipment can be wiped out by a single careless act of an operator. In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of...
Page 7: Starting And Stopping
’ OMMAND EEDER PERATOR ANUAL 2.02 - Starting and Stopping 1. Be sure that no one is near the machine prior to engaging or while the machine is working. 2. Be sure the tractor is in “Neutral” before starting engine. 3.
Page 8 ’ OMMAND EEDER PERATOR ANUAL Fig. 2 - Safety decals; replace immediately if damaged. left side right side Red reflective decal left side right side ABI A AFETY RECAUTIONS TTACHMENTS...
Page 9: Operational Safety
’ OMMAND EEDER PERATOR ANUAL 3 - OPERATION The Command Seeder is a primary full width seeder ideal for seeding a wide variety of grasses in lawns, golf courses, parks, sports fields and hay fields. Seeds are precisely metered and placed at the ideal depth for proper seed germination. Engineered for tractors ranging from 25 to 70 HP, the Command Seeder has a working width of 74”.
Page 10 ’ OMMAND EEDER PERATOR ANUAL 5. Always stop the tractor, set brake, shut off the tractor engine, remove the ignition key, lower implement to the ground and allow rotating parts to come to a complete stop before dismounting tractor. Never leave equipment unattended with the tractor running.
Page 11: Pre-Operational Check
’ OMMAND EEDER PERATOR ANUAL 3.02 - Pre-Operational Check Although the machine usually arrives set up, ready to use, it is important to check certain aspects of the machine before using it. Adjustments are normally necessary in order to adapt the Command Seeder to work under a given condition. CAUTION: Stand clear of bands when cutting as they could be under sufficient tension to cause them to fly loose.
Page 12 ’ OMMAND EEDER PERATOR ANUAL DANGER: Failure to ensure a secure coupling of the implement to the tractor can cause injury and damage to the implement or tractor. If necessary, wheel weights, front tractor weights and/or tire ballast should be used to improve stability. Be sure that the tractor tire pressure is correct.
Page 13 ’ OMMAND EEDER PERATOR ANUAL The lower hitch pins (see fig. 3) may be put in either of 2 positions (upper or lower) depending on the tractor. Secure the two arms with the lynch pins. Tighten the tractor arms side movement with either the sway chains or blocks to limit side swing to 2”-3”. Connect the top link, locking it in place with the top hitch pin.
Page 14: Hopper Adjustment
’ OMMAND EEDER PERATOR ANUAL Before beginning seeding, make sure that the rear cultipacker locking pins have been removed (see fig. 5). Also remove any obstacles present on the ground, particularly large stones. Slowly lower the three point hitch and the seeder to the ground. Proceed slowly until you have become familiar with the machine.
Page 15 ’ OMMAND EEDER PERATOR ANUAL Fig. 7 1. seed cup 2. gear support 3. drive shaft bushing 4. seed cup regulation lever A secondary regulation is the lever located on the side of each cup housing. This controls the position of the gate inside the seed cup (top, middle, bottom and clean out). The positioning of this lever is determined by the size and shape of the material being dispersed (see fig.
Page 16 ’ OMMAND EEDER PERATOR ANUAL The output of seed differs greatly depending on their size, density, dampness, and shape. Other output factors depend on the conditions in which the machine is operating such as, in slick conditions where the cultipacker may slip. Table 1 lists the distribution rate in pounds per acre for various seeds that may be used.
Page 17 ’ OMMAND EEDER PERATOR ANUAL 3. Make sure the seed cups are not plugged with leaves, grass or other obstacles and that the seed cup regulation levers are all adjusted to the same opening position. 4. Remove the seed tubes from the lower bar and attach bags to the ends to allow the material to be collected.
Page 18 ’ OMMAND EEDER PERATOR ANUAL 4. Remove the seed tubes from the lower bar and attach bags to the ends to allow the material to be collected. 5. Move the calibration handle located in the rear of the hopper to a position between 0.5 and 6.
Page 19 ’ OMMAND EEDER PERATOR ANUAL 9. Checking that all shielding is on the machine and securely in place. 10. Making sure the proper attire is worn. Avoiding loose fitting clothing which can become entangled. Wearing sturdy, tough-soled work shoes and protective equipment for eyes, hands, ears and head.
Page 20: Working Speed
’ OMMAND EEDER PERATOR ANUAL 3.09 - Test Run After the first 200-300 feet it is important to stop and raise the machine. Lower the machine, turn off the tractor engine and remove the key. At this point make sure the Command Seeder is performing correctly. Check for loose bolts or nuts.
Page 21 ’ OMMAND EEDER PERATOR ANUAL 3.13 - Transporting CAUTION: All operations of transport are to be done without the Command Seeder working and respecting all local traffic rules and regulations. During transport or when the machine is lifted from the ground, it is advisable to adjust the tractor lift arms in order to be able to raise the machine 14”...
Page 22 TABLE 5 - COMMAND SEEDER - TECHNICAL FEATURES Command Seeder for tractors with a category 1 three point hitch. Model Working width Overall width Weight lb. Hopper # Seed cups Chains capacity cu. ft. ASR74CSTRL 25-70 74” 80” 1,008 ASA 50 ABI A PERATION TTACHMENTS...
Page 23: Maintenance Safety
’ OMMAND EEDER PERATOR ANUAL 4 - MAINTENANCE DANGER: Stop engine, lock parking brake and remove key before performing any service or maintenance. Never rely on the tractor lift system. Install blocks or stands under the implement deck to prevent it from falling. Always use personal protection devices, such as glasses or gloves when performing maintenance.
Page 24 ’ OMMAND EEDER PERATOR ANUAL 14. Unauthorized modifications to the machine may impair the function and/or safety of the machine and reduce its life. If equipment has been altered in any way from the original design, the manufacturer does not accept any liability for injury or warranty. 4.02 - Service The following illustrations show lubrication points.
Page 25 ’ OMMAND EEDER PERATOR ANUAL Whenever the hopper is used for fertilizer spreading it is extremely important to carefully clean out the hopper and wash the machine with hot water. Do not forget that fertilizer is highly corrosive and should be not left in the hopper any longer than necessary.
Page 26 ’ OMMAND EEDER PERATOR ANUAL 5 - REPAIR PROCEDURES CAUTION: It is not recommended that untrained individuals perform any repair work. The following operations are detailed for qualified personnel only. 5.01 - Chain Case and Chain Replacement To remove the chain do the following: 1.
Page 27: Suggested Spare Parts
’ OMMAND EEDER PERATOR ANUAL Fig. 11 - Chain assembly. A. Loosely place B. Place chains on central C. Attach the top chain both chains on top double sprocket and then tensioner spring to the and bottom sprockets, assemble to the bolt, bolt (#7) and the bottom insert bushing on bolt ensure sprockets are...
Page 28 ’ OMMAND EEDER PERATOR ANUAL 5.04 - Storage After seasonal use it is important to perform the following for prolonged storage: 1. Lower the stand (see fig. 5) and remove the machine from the tractor. 2. Block the rear cultipacker by inserting the two locking pins secured with hairpin cotters.
Page 29: Troubleshooting
’ OMMAND EEDER PERATOR ANUAL 6 - TROUBLESHOOTING WARNING: Be sure tractor engine is off, parking brake is locked, and key is removed before making any adjustments. PROBLEM POSSIBLE CAUSE SOLUTION Uneven seed Seed cups might be Check for plugging in seed cup. distribution.
Page 30: Warranty
WARRANTY...
Page 31: Parts Manual
Parts Manual COMMAND SEEDER Full-width primary seeder ASR74CSTRL (serial #328120 & above) Parts Manual 0117 ABI ASRT-074, 328120+ (US).lwp ASRT-074 Ver. B Printed on January 10, 2017...
Page 32 ’ OMMAND EEDER HREE OINT ITCH PERATOR ANUAL ASR74CSTRL ABI A ARTS ANUAL TTACHMENTS 0117...
Page 33 ’ OMMAND EEDER HREE OINT ITCH PERATOR ANUAL ASR74CSTRL Ref. Part # Description Qty. 000-5550 Hitch pin 000-5351 Washer lock Ø20 Z 000-5542 Nut HH M20-1.50 C6 MD Z 008-4772 Three point hitch 008-8560 Top hitch support 000-7716 Bolt HH M12-1.75x45 C8.8 Z F 000-1077 Washer lock Ø12 Z...
Page 34 ’ OMMAND EEDER ISCHARGE UPPORT PERATOR ANUAL ASR74CSTRL ABI A ARTS ANUAL TTACHMENTS 0117...
Page 35 ’ OMMAND EEDER ISCHARGE UPPORT PERATOR ANUAL ASR74CSTRL Ref. Part # Description Qty. 048-8880 Discharge support 74” 003-3176 Bolt HH M10-1.50x25 C8.8 Z F 000-1280 Washer lock Ø10 Z 000-1279 Nut HH M10-1.50 C6 TK Z 048-8890 Wind guard 001-5012 Bolt HH M08-1.25x20 C8.8 Z F...
Page 36 ’ OMMAND EEDER ANELS PERATOR ANUAL ASR74CSTRL S #328120 & ERIAL ABOVE ABI A ARTS ANUAL TTACHMENTS 0117...
Page 37 ’ OMMAND EEDER ANELS PERATOR ANUAL ASR74CSTRL S #328120 & ERIAL ABOVE Ref. Part # Description Qty. 048-8510 Frame 74” 008-8530 Right side panel 008-8540 Left side panel 003-3176 Bolt HH M10-1.50x25 C8.8 Z F 000-1278 Bolt HH M10-1.50x30 C8.8 Z F 000-1280 Washer lock Ø10 Z...
Page 38 ’ OMMAND EEDER ULTIPACKER PERATOR ANUAL ASR74CSTRL ABI A ARTS ANUAL TTACHMENTS 0117...
Page 39 ’ OMMAND EEDER ULTIPACKER PERATOR ANUAL ASR74CSTRL Ref. Part # Description Qty. 048-8640 Rear cultipacker 74” 008-8645 Cultipacker ring, cast iron 008-8646 Cultipacker semi-ring, cast iron 008-8650 End ring with hole 008-8651 End ring without hole 008-8658 Plastic cap 008-8588...
Page 40 ’ OMMAND EEDER RONT ULTIPACKER PERATOR ANUAL ASR74CSTRL S #328120 & ERIAL ABOVE ABI A ARTS ANUAL TTACHMENTS 0117...
Page 41 ’ OMMAND EEDER RONT ULTIPACKER PERATOR ANUAL ASR74CSTRL S #328120 & ERIAL ABOVE Ref. Part # Description Qty. 048-8580 Front cultipacker 74” 008-8589 Cultipacker ring, cast iron 008-4481 End ring 004-6543 Bolt HH M08-1.25x30 C8.8 Z F 001-5230 Washer flat Ø08 W 001-1328 Nut PT M08-1.25 C6 TK Z...
Page 42 ’ OMMAND EEDER RANSMISSION PERATOR ANUAL ASR74CSTRL S #328120 & ERIAL ABOVE ABI A ARTS ANUAL TTACHMENTS 0117...
Page 43 ’ OMMAND EEDER RANSMISSION PERATOR ANUAL ASR74CSTRL S #328120 & ERIAL ABOVE Ref. Part # Description Qty. 008-8860 Chain case cover 008-4596 Access cover 009-1384 Nut ES M08-1.25 TK Z 003-0157 Washer fender Ø10 Z 001-5237 Nut ES M10-1.50 TN Z...
Page 44 ’ OMMAND EEDER RANSMISSION HAINS PERATOR ANUAL ASR74CSTRL S #328120 & ERIAL ABOVE ABI A ARTS ANUAL TTACHMENTS 0117...
Page 45 ’ OMMAND EEDER RANSMISSION HAINS PERATOR ANUAL ASR74CSTRL S #328120 & ERIAL ABOVE Ref. Part # Description Qty. 008-8856 Chain ASA 50x50 008-8857 Chain ASA 50x66 000-9726 Spring, tensioner 003-8614 Bolt HH M10-1.50x40 C8.8 Z F 009-0150 Nut HH M10-1.50 C6 MD Z 000-1280 Washer lock Ø10 Z...
Page 46 & S ’ OMMAND EEDER OPPER ISTRIBUTION YSTEM PERATOR ANUAL ASR74CSTRL ABI A ARTS ANUAL TTACHMENTS 0615...
Page 47 & S ’ OMMAND EEDER OPPER ISTRIBUTION YSTEM PERATOR ANUAL ASR74CSTRL Ref. Part # Description Qty. 048-8730 Hopper 74” 008-4287 Hopper support 008-4284 Lifting hook 048-8750 Hopper lid 74” 048-8754 Lid support 74” 008-4310 Plastic knob 018-4302 Hopper hinge, right...
Page 48 ’ ONVEYORS PERATOR ANUAL ASR74CSTRL ABI A ARTS ANUAL TTACHMENTS 0715...
Page 49 ’ ONVEYORS PERATOR ANUAL ASR74CSTRL Ref. Part # Description Qty. 008-8740 Seed conveyor 008-8742 Fixing plate, seed conveyor 009-9138 Seed conveyors, complete ABI A ARTS ANUAL TTACHMENTS 0715...
Page 50 ’ OMMAND EEDER ECALS PERATOR ANUAL ASR74CSTRL ABI A ARTS ANUAL TTACHMENTS 0117...
Page 51 ’ OMMAND EEDER ECALS PERATOR ANUAL ASR74CSTRL Ref. Part # Description Qty. 950-213B Decal “DANGER - Replace shield” 950-486B Decal “DANGER - Moving parts hazard” 950-342B Decal “DANGER - Crushing hazard” 950-343B Decal “WARNING - Falling hazard” 950-417B Decal “CAUTION - Read operator’s manual”...
Page 52 1320 3rd. Street Osceola, IN 46561 877.788.7253 ABIattachments.com...
