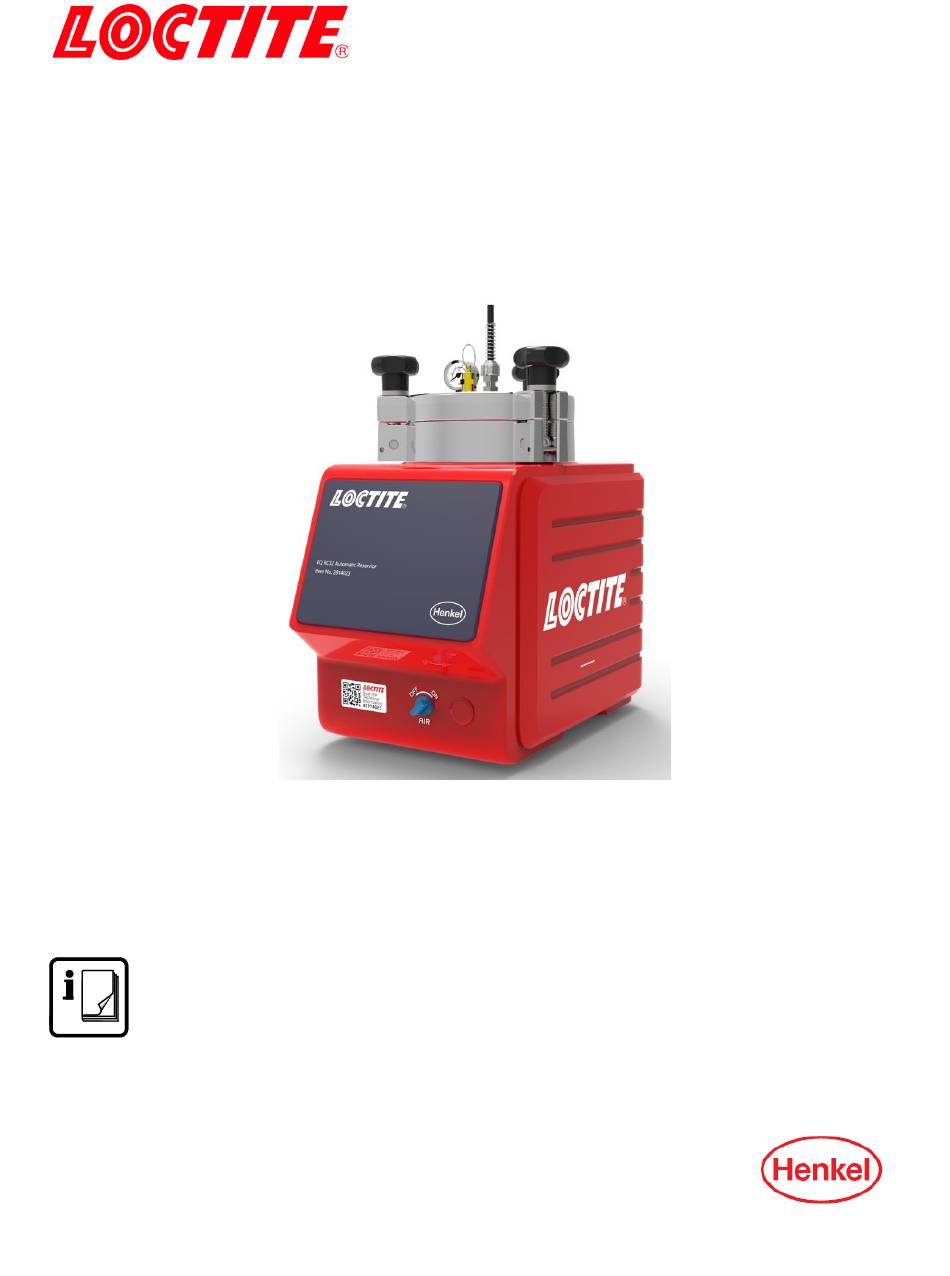

- Page 1 EQ RC32 Automatic Reservoir SP IDH 2814023 Operating Manual...
-
Page 2: Table Of Contents
Table of Contents Please Observe the Following ....................3 Emphasized Sections ......................3 For Your Safety ........................3 Unpacking and Inspection ....................3 Packing List ........................... 4 Features ..........................4 Field of Application (Intended use) ................... 4 Description ........................... 5 2.1 Theory of Operation ........................ -
Page 3: Please Observe The Following
Please Observe the Following Emphasized Sections Warning! Refers to safety regulations and requires safety measures that protect the operator or other persons from injury or danger to life. Caution! Emphasizes what must be done or avoided so that the unit or other property is not damaged. -
Page 4: Packing List
Integrated solenoid vent valve. Field of Application (Intended use) The Loctite EQ RC32 Automatic Reservoir SP is equipped with a single point low level sensor that sends an empty signal to a Loctite brand controller and is typically integrated into a dispensing system that consist of a dispensing valve and one of these controllers. -
Page 5: Description
Description 2.1 Theory of Operation The original LOCTITE® bottle is inserted into the EQ RC32 Automatic Reservoir SP. The closed reservoir is supplied with regulated, pressurized air from the LOCTITE® controller 97102, 97152 or RC15. As long as the dispensing valve is open, pneumatic pressure on the surface of the fluid in the original LOCTITE®... -
Page 6: Control Panel (Front & Back Of Controller)
2.2 Operating Elements and Connections 1. Air Pressure ON/OFF Switch 6. Reservoir Lid 2. Tank Pressure Gauge 7. Pneumatic Connection P in 3. Valve Pressure Relief 8. Low Level connector XS2 4. Reservoir/Feedline Fitting 9. Low Level Sensor 5. Reservoir Locking Knob x 3 10. -
Page 7: Technical Data
Technical Data Dimensions (L x H x W): 214x363x366 mm Total weight: Kg (lbs.) 4 (8.8) Internal control voltages: 24VDC Pneumatic Supply: Clean, dry air not to exceed 116 psi (8bar). and filtered with a maximum of 10 micron. Pneumatic hose size: External dia. -
Page 8: Installation
Installation Before using the equipment for the first time check it carefully for signs of external damage. If any shipping damage is found DO NOT USE THE EQUIPMENT – return it to your supplier immediately. 4.1 Environmental and Operating Conditions Keep product feedline as short as possible. -
Page 9: Filling And Refilling The Product Reservoir
Connect dispensing valve. 4.3 Filling and Refilling the Product Reservoir Warning! Never fill the product directly into the reservoir! The pneumatic and safety devices would become clogged and therefore ineffective! Warning! Before loosening the reservoir locking knobs (6), the EQ RC32 Automatic Reservoir must be depressurized (pressure-free)! When dispensing cyanoacrylate and an empty signal is shown, refill the product reservoir immediately, since air in the product line results in curing of the product! -
Page 10: Operation
The reservoir is depressurized when the depressurizing valve (1) is in “OFF” position and pressure gauge (2) indicates no pressure. • Loosen the reservoir locking knobs (5) and remove lid (6). • Check that there is no condensed moisture at the bottle or the sensor surface. -
Page 11: Adjust The Lebel Sensor
5.2 Adjust the Level Sensor Notice: The level sensor is set in manufacturing and can be adjusted according to the type of product used, the size of the bottle, and orientation of the basket with spacers if required. If small bottles are used the supplied Bottle spacer disc can be placed in the base of the reservoir to raise the height of the bottle to reduce the residual adhesive in the bottle when low level is used. -
Page 12: Application Hints
Application Hints As with all adhesives, performance depends on conditions of use. Suggestions or recommendations contained herein are for guidance only since actual conditions of use are outside the supplier’s control. 6.1 Shutdown for Longer Periods of Non-use (>recommended idle time) •... -
Page 13: Troubleshooting
Product reservoir is empty. (Section 4.3) Product reservoir is not Set the depressurizing valve to switched on. pressurize. No product. Controller 97102: Press Reservoir (product Controller 97152: Press reservoir) is not active. Controller RC15: Press Product reservoir defect. Henkel Service. -
Page 14: Care And Maintenance
Care and Maintenance 8.1 Care -Occasionally the O-ring at the reservoir lid should be lubricated with silicone grease. This will prolong the life of the O-ring. Notice: Clean hands after application of grease to ensure surfaces to be bonded are clean. -Clean the sensor surface as required. -
Page 15: Accessories And Spare Parts
Accessories and Spare Parts Item Description IDH# Spare Parts Reservoir/tube Tank Fitting, ¼ inch NPT x ¼ inch Tubing 360636 Tank Cord, 2 m 147521 ¼ inch O.D. Black PE Teflon Lined feedline Tubing (33 feet length) 142646 Reservoir Lid O-ring 478505 Pressure Safety Relief Valve 360462... -
Page 16: Warranty
Henkel, the use of products, parts or attachments which are not manufactured by Henkel, no claim shall be allowed. No Products shall be returned to Henkel for any reason without prior written approval from Henkel. Products shall be returned freight prepaid, in accordance with instructions from Henkel. -
Page 17: Declaration Of Conformity
THIS SECTION SETS FORTH EXCLUSIVELY ALL OF LIABILITY FOR HENKEL TO THE PURCHASER IN CONTRACT, IN TORT OR OTHERWISE IN THE EVENT OF DEFECTIVE PRODUCTS. WITHOUT LIMITATION OF THE FOREGOING, TO THE FULLEST EXTENT POSSIBLE UNDER APPLICABLE LAWS, HENKEL EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER FOR... - Page 18 Deutchland www.equipment.loctite.com ® and ™ designate trademarks of Henkel Corporation or its affiliates. ® = registered in the U.S. and elsewhere. © Henkel Corporation. All rights reserved. Data in this operation manual is subject to change without notice. Manual P/N: n/a, Rev A, Date: 10/18/2021...
