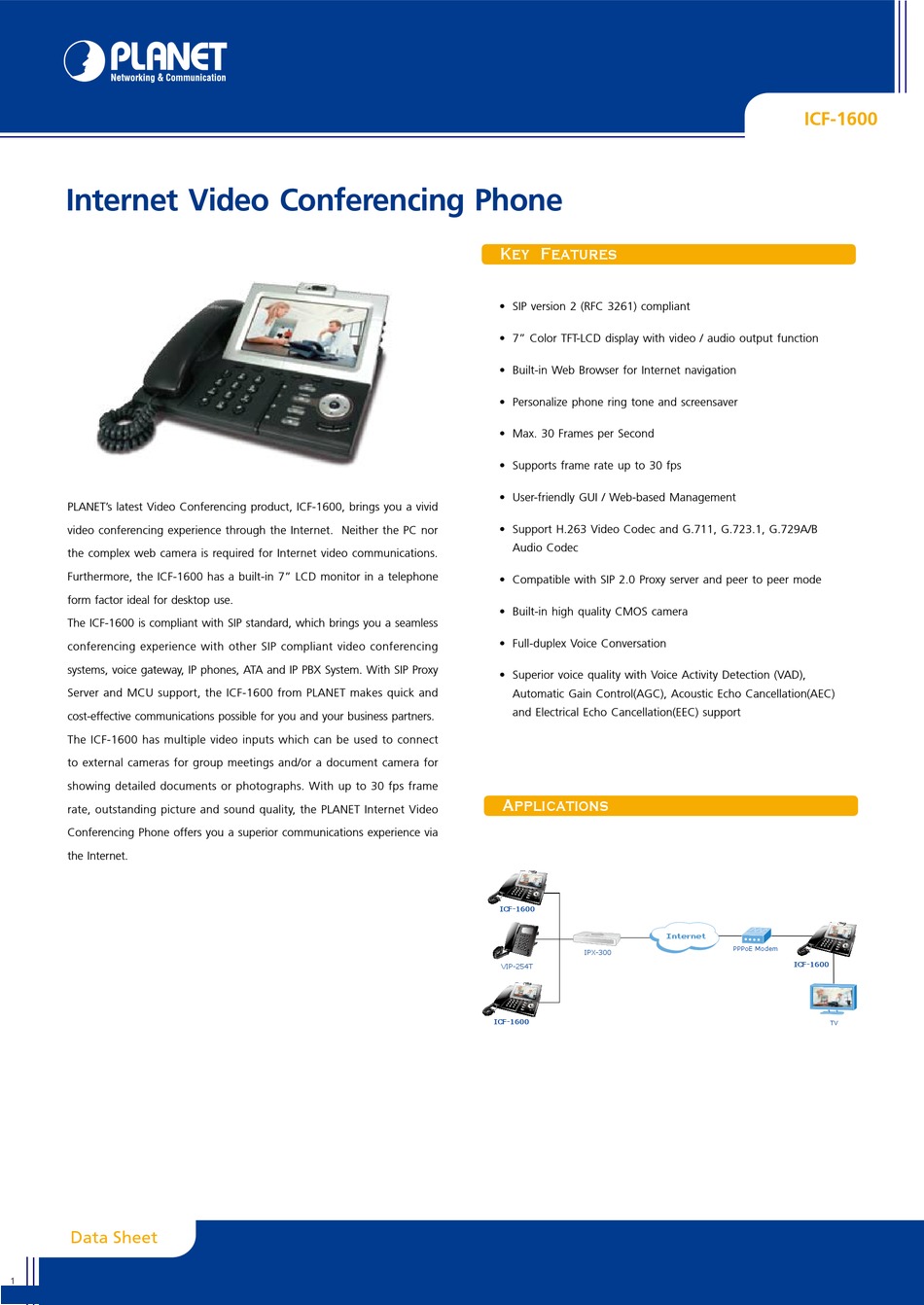

Planet ICF-1600 Datasheet

Internet Video Conferencing Phone
PLANET's latest Video Conferencing product, ICF-1600, brings you a vivid
video conferencing experience through the Internet. Neither the PC nor
the complex web camera is required for Internet video communications.
Furthermore, the ICF-1600 has a built-in 7" LCD monitor in a telephone
form factor ideal for desktop use.
The ICF-1600 is compliant with SIP standard, which brings you a seamless
conferencing experience with other SIP compliant video conferencing
systems, voice gateway, IP phones, ATA and IP PBX System. With SIP Proxy
Server and MCU support, the ICF-1600 from PLANET makes quick and
cost-effective communications possible for you and your business partners.
The ICF-1600 has multiple video inputs which can be used to connect
to external cameras for group meetings and/or a document camera for
showing detailed documents or photographs. With up to 30 fps frame
rate, outstanding picture and sound quality, the PLANET Internet Video
Conferencing Phone offers you a superior communications experience via
the Internet.

Data Sheet

1
Key Features
• SIP version 2 (RFC 3261) compliant
• 7" Color TFT-LCD display with video / audio output function
• Built-in Web Browser for Internet navigation
• Personalize phone ring tone and screensaver
• Max. 30 Frames per Second
• Supports frame rate up to 30 fps
• User-friendly GUI / Web-based Management
• Support H.263 Video Codec and G.711, G.723.1, G.729A/B
Audio Codec
• Compatible with SIP 2.0 Proxy server and peer to peer mode
• Built-in high quality CMOS camera
• Full-duplex Voice Conversation
• Superior voice quality with Voice Activity Detection (VAD),
Automatic Gain Control(AGC), Acoustic Echo Cancellation(AEC)
and Electrical Echo Cancellation(EEC) support
Applications
ICF-1600
Internet
IPX-300
VIP-254T
ICF-1600
ICF-1600
PPPoE Modem
ICF-1600
TV
