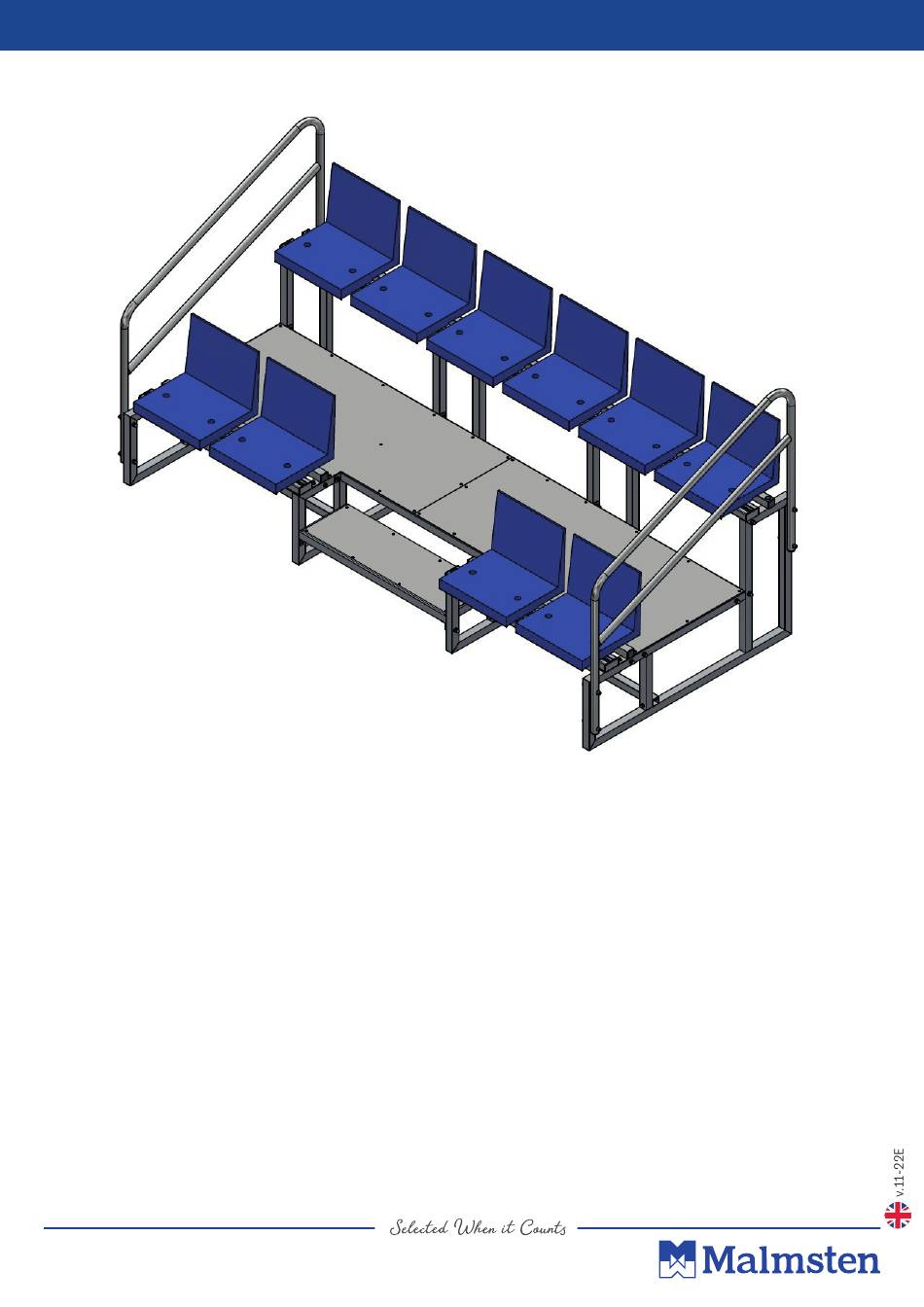

- Page 1 Art. No. 1514014 Water Polo Team Bench (1514014) Assembly Instructions Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
-
Page 2: Tools And Equipment Required
RECOMMENDED SAFETY CLOTHING (to be worn during the installation and maintenance) Steel toe work boots Working gloves Frame 02 Bottom seat frame Frame 03 Supporting profile Frame 04 Handrail Frame 05 Angle bracket Frame 06 Aluminum connector Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com... - Page 3 Hex socket cap screw with low head DIN 6912 M10x60 Hex socket cap Seat frame screw with low head DIN 6912 M10x65 Hex socket cap screw DIN 912 M10x90 Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 4 Certain bolts can benefit from retightening and sometimes the additional application of a product like Loctite. Loctite, is like a glue, and will lock permanently the bolts in its position. Loctite can be purchased in most hardware stores. Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 5 DIN 125 A10,5 washer (17) – 10 pcs See Det. B4 DIN 127 A10 washer (19) – 5 pcs DIN 1587 M10 cap nut (22) – 5 pcs See Det. B2, B3 Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 6 DIN 125 A10,5 washer (17) – 10 pcs DIN 127 A10 washer (19) – 5 pcs DIN 1587 M10 cap nut (22) – 5 pcs See Det. C4 See Det. C2, C3 Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 7 DIN 6912 M10x60 (25) – 4 pcs DIN 125 A10,5 washer (17) – 8 pcs DIN 127 A10 washer (19) – 4 pcs DIN 1587 M10 cap nut (22) – 4 pcs See Det. D Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 8 DIN 1587 M8 cap nut (21) – 4 pcs See Det. F After that cover up all mounting holes by: hole plug fi20 (35) – 4 pcs See Det. G Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 9 DIN 6912 M10x60 (25) – 4 pcs DIN 125 A10,5 washer (17) – 8 pcs DIN 127 A10 washer (19) – 4 pcs DIN 1587 M10 cap nut (22) – 4 pcs See Det. I Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 10 DIN 125 A10,5 washer (17) – 8 pcs DIN 127 A10 washer (19) – 4 pcs DIN 1587 M10 cap nut (22) – 4 pcs See Det. J, K Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 11 DIN 6912 M10x60 (25) – 2 pcs DIN 125 A10,5 washer (17) – 4 pcs DIN 127 A10 washer (19) – 2 pcs DIN 1587 M10 cap nut (22) – 2 pcs See Det. L Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 12 DIN 6912 M8x60 (24) – 4 pcs DIN 125 A8,4 washer (16) – 8 pcs DIN 127 A8 washer (18) – 4 pcs DIN 1587 M8 cap nut (21) – 4 pcs See Det. M Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 13 Next put it on the main frame and place additional rectangular nut M8 into the groove of the profile to be used later! Rectangular nut M8 (15) – 20 pcs Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 14 DIN 6912 M8x60 (24) – 6 pcs DIN 9021 8,4 washer (28) – 12 pcs DIN 127 A8 washer (18) – 6 pcs DIN 1587 M8 cap nut (21) – 6 pcs See Det. S Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 15 DIN 127 A10 washer (19) – 4 pcs DIN 1587 M10 cap nut (22) – 4 pcs Cover the ends of the pipe by: Plug fi35 (34) – 2 pcs See Det. U Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 16 Cover the ends of the pipe by: Plug fi35 (34) – 2 pcs See Det. W Maintenance and Service For any queries regarding product, spare parts or problems please contact: Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
- Page 17 Storage and usage shall be so that no unauthorized person or child can acci- dently be injured by a falling or tilting bench. THIS IS NOT A TOY ! Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
-
Page 18: Terms Of Warranty
IV. TERMS OF WARRANTY General Provisions 1.1 M. MALMSTEN AB (the “Manufacturer”) provides the limited warranty (the “Warranty”) to the purchaser of the Equipment. Warranty is only valid in the facility in which the Equipment was originally installed. The Warranty is valid from the time of the final acceptance of the building or from the date of delivery and to the timeline listed below, under the terms and conditions stated below. - Page 19 1.4. The manufacturer or distributor will offer a solution to the problem within 7 days. After the claim is accepted, both parties will agree on a suitable term of repairs. Malmsten AB • www.malmsten.com +46 44 28 71 00 • info@malmsten.com...
