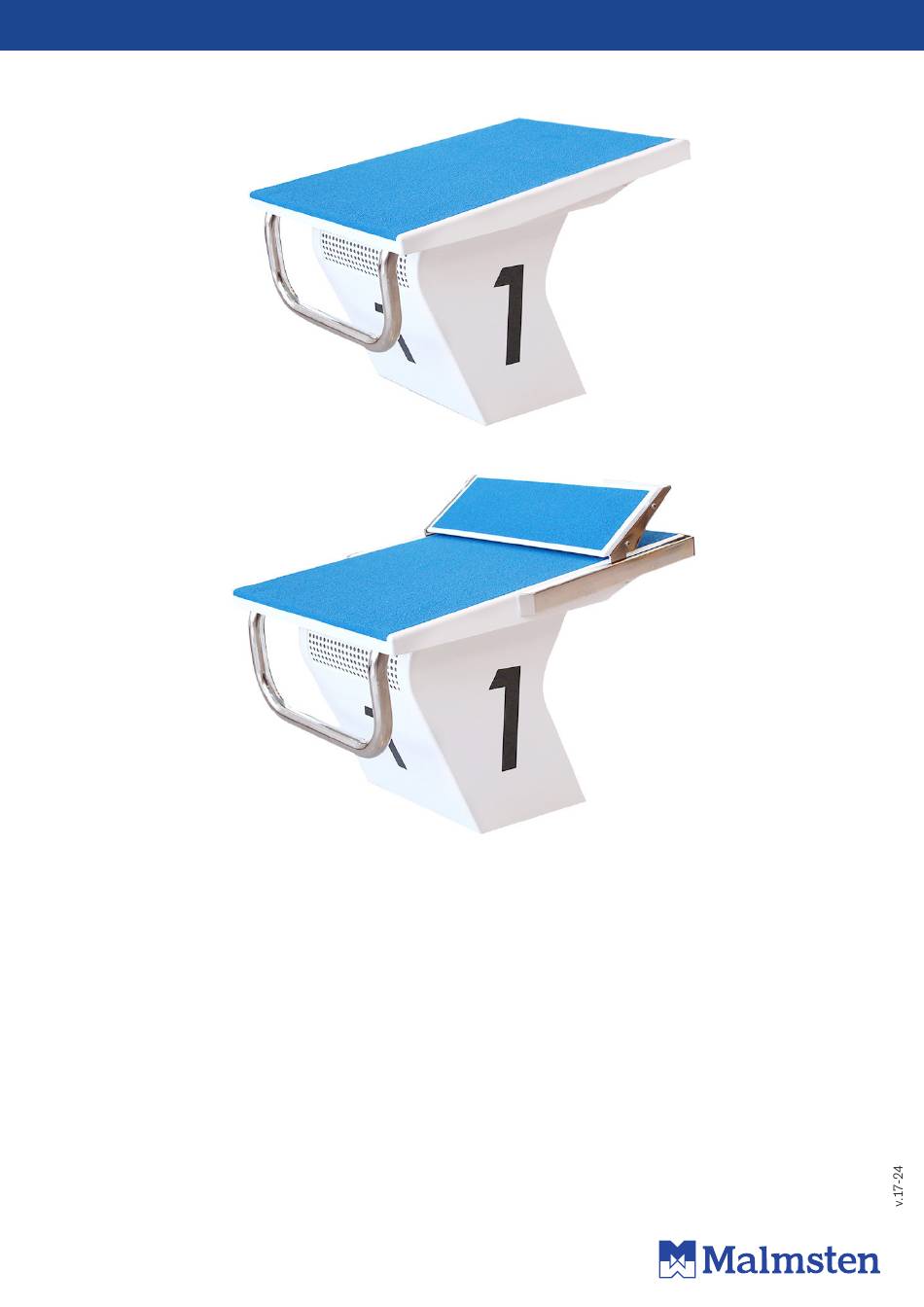

- Page 1 Art. No. 2011002, 2011003 Starting Block PRO (2011002) or Starting Block PRO with Track Start (2011003) Assembly Instructions...
-
Page 2: Tools And Equipment Required
TOOLS AND EQUIPMENT REQUIRED Flat spanner 10 Flat spanner 17 www.malmsten.com Art. No. 2011002, 2011003 Hammer drill Measuring tape Stainless steel threaded rods with washers and nuts Adhesive anchors ASSEMBLY INSTRUCTIONS 2011002, 2011003 TOOLS AND EQUIPMENT RECCOMENDED (OPTIONAL) Blankets, soft lining or protection tiles (velour surface) - Page 3 Art. No. 2011002, 2011003 Step 1 – preparations Prepare the tools and put on your necessary safety clothing Cover the floor with blankets / soft lining / protection tiles in order to prevent eventual product or floor damages Unpack the product and lay it down safely on the prepared floor Check carefully if any of the delivered items are damaged or missing (a list of components can be found above) Step 2 –...
- Page 4 Art. No. 2011002, 2011003 Assembling the start track If you do not have the start track you might skip this point. Use 4 pcs of the M6x20 bolts (10) and plastic washers (13) to connect both rails (8; 9) to the top:...
-
Page 5: Terms Of Warranty
1. General provisions 1.1 M. MALMSTEN AB (the “Manufacturer”) provides the limited warranty (the “Warranty”) to the purchaser of the Equipment. Warranty is only valid in the facility in which the Equipment was originally installed. The Warranty is valid from the time of the final acceptance of the building or from the date of delivery and to the timeline listed below, under the terms and conditions stated below. - Page 6 Art. No. 2011002, 2011003 1.5 The information about warranty claims should include the serial number (printed on the upper right corner of the crossbar – see picture below), description of the issue and date of discovering of the defect.
- Page 7 Art. No. 2011002, 2011003 LOCATION OF THE SERIAL NUMBER(S) There are 3 serial numbers on this product A- Located on base of the starting platform B- Located on the inside of the top with anti-slip sand C- Located on the Track-Start Please make sure you will use a proper one when making a warranty claim.
