Summary of Contents for OCEANAIRE OWC6012QC

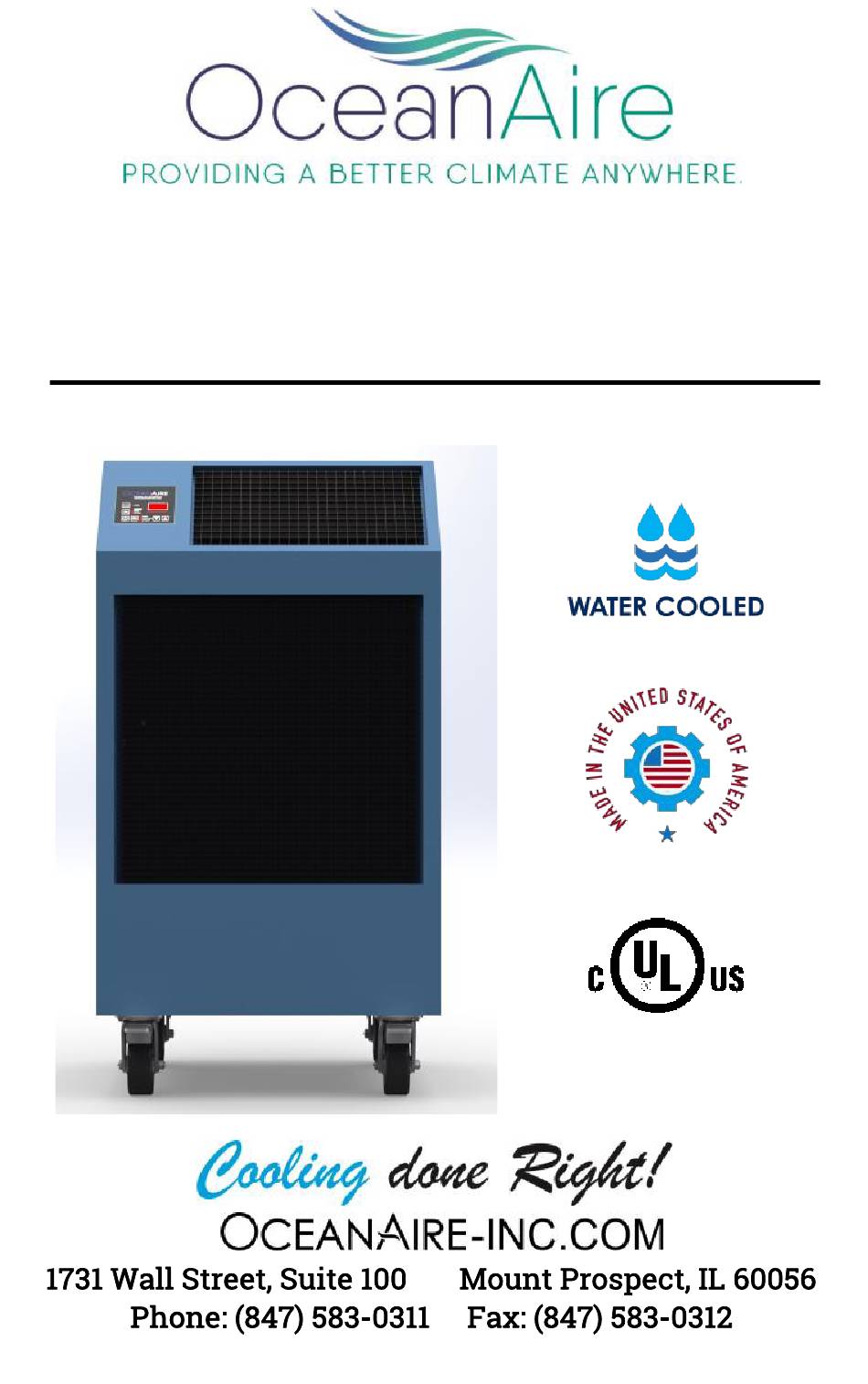

- Page 1 OWC6012-6032-6034QC 5 Ton Deluxe Portable Water-Cooled Cooler With Quick Connect ENGINEERING, INSTALLATION AND SERVICE MANUAL EISM-OWC60QC 10012021...
-
Page 2: Table Of Contents
FORWARD This manual provides the user with basic details for the installation and operation of the Oceanaire OWC60QC’s spot coolers. It is recommended to read and fully understand the instructions outlined within this manual, before operating the unit. As with all commercial air conditioning equipment, it is recommended to have the OWC60QC sized and installed by a licensed specifying engineer and contractor, in accordance with all local and state codes. -
Page 3: General Information

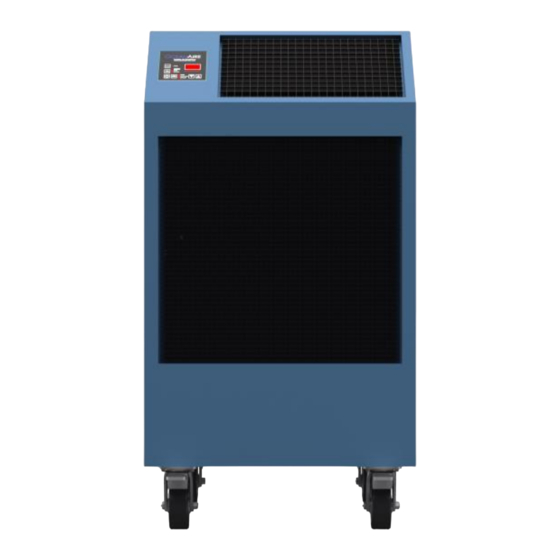

GENERAL INFORMATION The OceanAire OWC60QC model is a portable water-cooled air conditioner designed for permanent or temporary spot cooling applications. The entire air conditioning unit has been built in an attractive sheet metal cabinet, equipped with heavy-duty casters for mobility. All OWC60QC models come with a 10-foot power cord for electrical connection and added mobility in service. -
Page 4: Product Data And Specifications
SPECIFICATIONS OWC60 QC MODEL: OWC 6012QC 6032QC 6034QC COOLING CAPACITY 60,100 VOLTAGE (V/Phase) at 60Hz 208-230/1 208-230/3 460/3 AMPS 23.7 16.5 TOTAL WATTS 5000 IN-RUSH CURRENT (AMPS) PLUG TYPE 6-30P LCDI L15-30P L16-20P COMPRESSOR SCROLL COMPRESSOR HP COMPRESSOR LRA EVAP CFM - HIGH 1950 EVAP MOTOR HP CONDENSER WATER FLOW... -
Page 5: Standard Features
STANDARD FEATURES CABINET The OWC60QC cabinet is constructed of 18 gauge steel with a gray and blue polyester powder coated finish that will compliment any decor. The entire cabinet is insulated with sound-absorbing insulation for cool, quiet comfort. All units come equipped with swivel casters for portability and convenient set-up. -
Page 6: Applications
APPLICATIONS SPOT COOLER The OWC60 QC can be used in an open environment to cool specific objects or "spots". Spot Cooling is a convenient and economical way to provide air conditioning where cooling the entire space is not viable. Cool air is discharged from the units grille and is directed where it is needed. -
Page 7: Electrical Configuration
ELECTRICAL CONFIGURATION CAUTION: DO NOT USE THE LCDI AS AN ON/OFF SWITCH FOR THE OWC6012QC UNIT... -
Page 8: Unit Interior
OWC60 QC INTERIOR Blower Wheel Digital Controller Motor Evaporator Coil Compressor High Pressure Switch Reset Button Water Water Drain Drain Condensate Pump Cubby for the Hose Kit... -
Page 9: Installation Instructions
BEFORE INSTALLING Check the unit for any damage. All Oceanaire products are thoroughly inspected at the factory and carefully packaged. If any damage is evident, contact Oceanaire IMMEDIATELY. - Page 10 OWC60 QC ACCESSORIES DISCHARGE AIR NOZZLE KIT ASSEMBLY An optional discharge nozzle kit is used to direct the conditioned air to a specific target area. By concentrating the airflow, the nozzles increase the air velocity towards production lines to cool personnel and/or equipment.
- Page 11 OWC60 QC ACCESSORIES DISCHARGE DUCT ADAPTER A discharge duct adapter is available for applications where ducting the cool air is required. The adapter can be easily installed on the unit without fasteners, and be installed for either vertical or horizontal ducting. The standard discharge grille is removed and the adapter is placed in the grille opening.
-
Page 12: Quick Connect Hose Kits
HK-QC SERIES HOSE KIT All Oceanaire Quick-Connect (QC) hose kits are designed for use with Oceanaire Portable Water-cooled Air conditioners equipped with Quick-Connect Fittings, to accommodate almost any installation requirement. The hose kit allows for the unit to be connected to a water source while providing a certain level of portability and ease of installation. -
Page 13: Hose Kit Installation Instructions
HK-QC INSTALLATION INSTRUCTIONS 1. Connect Hose Kit to unit by aligning the QC Coupling with the QC Fitting on the unit. Connect the hose kit according to hose and unit labels: BLACK to WATER IN, RED to WATER OUT and YELLOW to DRAIN. HOLD the coupling behind the sleeve allowing the sleeve to move freely and PRESS firmly, until the sleeve retracts and clicks. -
Page 14: Optional Hose Adapter Kit
HA-LGQC HOSE ADAPTER KIT The HA-LGQC Hose Adapter Kit allows for the installation of a QC water cooled unit where the Standard QC Hose Kit cannot accommodate the installation. The kit provides a means of connecting garden hose to a QC-Model unit when the water source and drain are located in separate areas, or where longer hose runs are de- sired. -
Page 15: Thermostat/Controller Operation
POWER button OCEANAIRE DELUXE ELECTRONIC CONTROLLER When power is connected, the controller will display “888” momentarily, and then disappear. Press the POWER button, then scroll drown to the TEMP SELECT button until the SET POINT is displayed. Adjust the SET POINT to the desired temperature, and the unit will cool as required. - Page 16 CONTROLLER PROGRAMMING MENU 1) Make sure the unit has power . 2) Press the power button “OFF”. “S-U-D-S” 3) Press the following buttons in sequence elect— p arrow — own arrow — elect) 4) The display will begin flashing P1 and a number. If there is no display, repeat the sequence, making sure the unit has power, but is turned OFF.
- Page 17 CODE SETTINGS OWC60 QC P1 = 80, P2 = 45 NOTICE Program Parameters are NOT controller default values. They are Oceanaire Factory Settings DISPLAY FAULTS LAC……………………. Low AC line power AAA or - - - ……… Failed Air Sensor (unit will not run) CON…………………….
-
Page 18: Water Valve Adjustment
WATER VALVE ADJUSTMENT Each OCEANAIRE WATER-COOLED unit is equipped with an automatic water regulating valve to control the condenser water flow rate. The water valve will open when the unit is in the cooling mode and adjust the gallon per minute flow rate based on the entering water temperature (EWT). -
Page 19: Replacement Parts Procedure
OWC60 QC REPLACEMENT PARTS PROCEDURE IT IS RECOMMENDED THAT ALL OCEANAIRE UNITS BE SERVICED BY A LICENSED TECHNICIAN WARNING —TO AVOID INJURY, DISCONNECT UNIT POWER PRIOR TO SERVICING A. FAN MOTOR 1. Remove rear panel and cabinet left-side panel (when looking at the front of the unit). -
Page 20: Troubleshooting Guide
TROUBLESHOOTING GUIDE The following steps and procedures are recommended for correcting the problems indicated. In the event that the problem can not be corrected, service may be required. SERVICE SHOULD BE PERFORMED BY A QUALIFIED AIR CONDITIONING SERVICE TECHNICIAN PROBLEM: UNIT DOES NOT POWER UP CAUSE: Power interruption REMEDY: Check LCDI (if equipped) and reset. -
Page 21: Preventive Maintenance
PREVENTIVE MAINTENANCE OWC60 QC is designed to last a long time and to give maximum performance and reliability with minimum maintenance. To prolong the life of the unit, regular maintenance must be performed as specified below: OFF SEASON STORAGE—WINTERIZATION Before placing the unit into storage for the off-season, it is recommended to thoroughly clean the unit, and remove all water in the CONDENSER COIL, WATER LINES, DRAIN PAN and CONDENSATE PUMP to avoid damage to the unit from freezing water or contamination. -
Page 22: Three Phase Monitor
10 minutes. Then rinsing clean with hot water and shaking excess moisture from filter. GENERAL Oceanaire products are NOT approved for outdoor use. Therefore, off-season stor- age should be indoor, protected from weather conditions. When necessary maintenance steps outlined above are followed, the air conditioner will provide long and reliable service. -
Page 23: Piping Schematic
PIPING SCHEMATIC... -
Page 24: Wiring Diagram
WIRING SCHEMATIC FOR OWC6012QC... - Page 25 WIRING SCHEMATIC FOR OWC6032QC...
- Page 26 WIRING SCHEMATIC FOR OWC6034QC...
-
Page 27: Warranty
LIMITED WARRANTY The Manufacturer (Oceanaire, Inc.) warrants to the original owner that the Product will be free from defects in material or workmanship for a period not to exceed one (1) year from date of installation. If upon examination by the Manufacturer, the Product is... - Page 28 SERIAL NUMBER: _____________________________ Date Purchased: ______________________________ Purchased from: _______________________________ Date Installed: _________________________________ For Technical Support or service parts, Keep Cool Team contact our at 847-583-0311 In order to receive the benefits of our warranty, please register on-line at www.oceanaire-inc.com EISM-OWC60QC 10012021...
