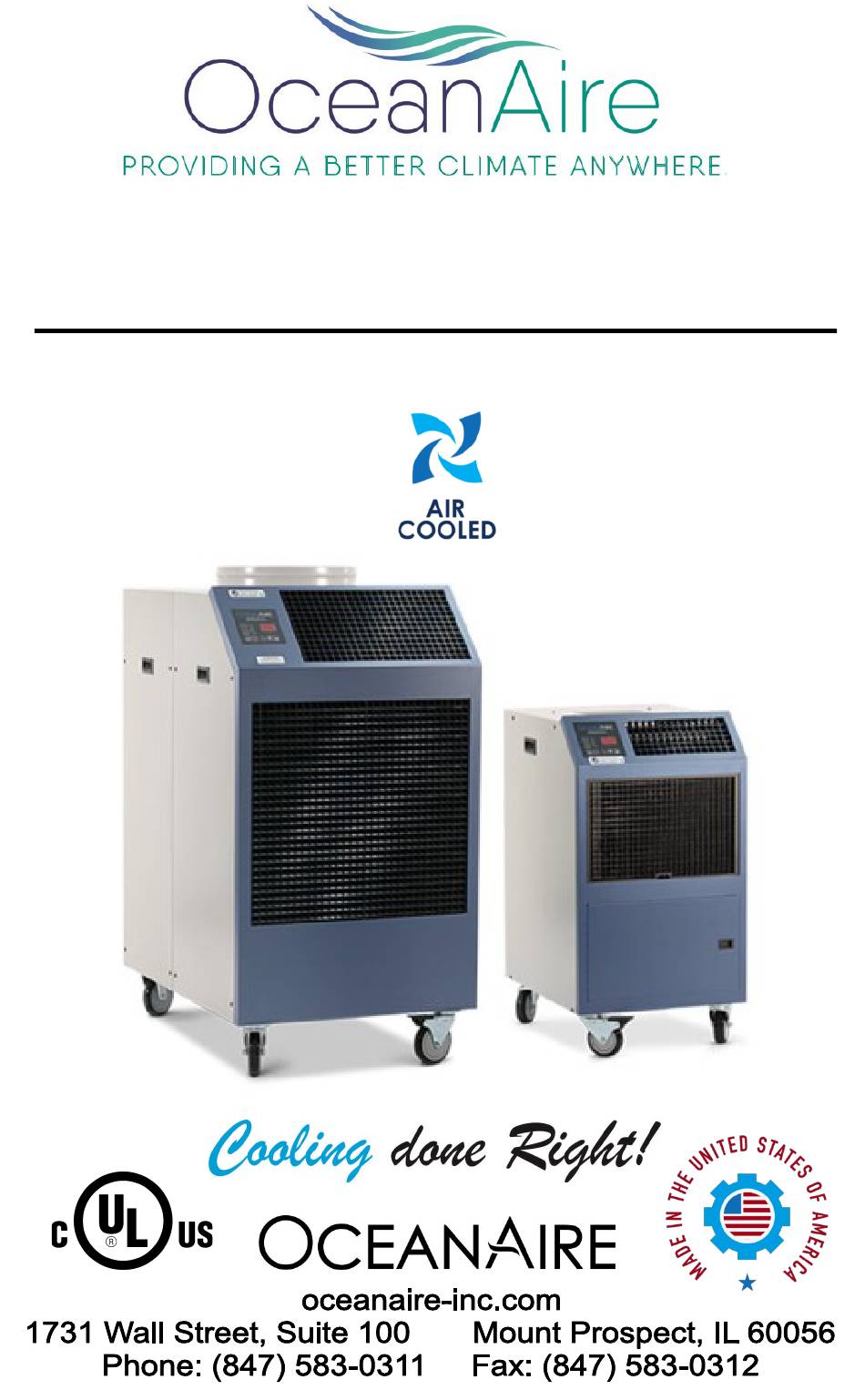

- Page 1 2OAC SERIES Deluxe Portable Air-Cooled Air Conditioner ENGINEERING, INSTALLATION AND SERVICE MANUAL Form EISM-2OAC 10012021...
-
Page 2: Table Of Contents
FORWARD This manual provides the user with basic details for the installation and operation of the OceanAire 2OAC air conditioner . It is recommended to read and fully understand the instructions outlined within this manual, before operating the 2OAC unit. -
Page 3: General Information
GENERAL INFORMATION The OceanAire 2OAC is a portable air-cooled air conditioner designed for permanent or temporary spot cooling applications. The entire unit has been built in a premium sheet metal cabinet, equipped with heavy-duty casters for mobility. All 2OAC models come standard with a 10-foot power cord for electrical connection and added mobility in service. -
Page 4: Product Data And Specifications
2OAC SPECIFICATIONS MODEL: 2OAC 1211 1811 2412 3612 3632 3634 6012 6032 6034 COOLING CAPACITY 11,800 16,800 24,020 36,050 60,100 VOLTAGE (V/Phase) at 60Hz 115/1 208-230/1 208-230/3 460/3 208-230/1 208-230/3 460/3 AMPS 10.4 14.1 14.9 19.6 17.2 20.4 14.8 TOTAL WATTS 1180 1670 2700... -
Page 5: Standard Features
STANDARD FEATURES CABINET The 2OAC Series unit has a cabinet that is constructed of 18 gauge steel with a polyester powder coated finish that will compliment any decor. The cool blue front compliments any surrounding space, and is insulated with sound-absorbing insulation for cool, quiet comfort. -
Page 6: Cooling Mode
APPLICATIONS COOLING MODE—SPOT COOLER The 2OAC can be used in an open environment to cool specific objects or "spots". Spot Cooling is a convenient and economical way to provide air conditioning, where cooling the entire space is impractical. Cool air is discharged from the unit and is directed where it is needed. -
Page 7: Electrical Configurations
ELECTRICAL CONFIGURATION SERVICE CORD All 2OAC-Series units are equipped with a standard 10-foot long service cord with plug configurations and receptacle requirements as shown in this chart. 2OAC1211, 2OAC1811, 2OAC2412 and 2OAC3612 units come with LCDI (Leakage Cur- rent Detection & Interruption) devices that serve as a means of electrical protection. -
Page 8: Use Of Extension Cords
USE OF EXTENSION CORDS CAUTION FOR MODEL 2OAC1211 AN EXTENSION CORD CAN BE USED, PROVIDED IT IS RATED AT LEAST 15 AMPS @ 115 VOLTS WITH GROUNDING-TYPE ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING) FOR MODEL 2OAC1811 AN EXTENSION CORD CAN BE USED, PROVIDED IT IS RATED AT LEAST 20 AMPS @ 115 VOLTS WITH GROUNDING-TYPE ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING) FOR MODEL 2OAC2412 AN EXTENSION CORD CAN BE USED, PROVIDED IT IS... -
Page 9: Condensate
CONDENSATE For Models 2OAC1211, 2OAC1811, 2OAC24 and 2OAC36, a 5-gallon polyethylene tank is provided to collect condensate. The tank is located in the lower front section of the unit, and can be accessed though the condensate tank door. When the high water level is reached, a cut-out switch will AUTOMATICALLY cycle off the compressor/condenser fan. - Page 10 2OAC Optional ACCESSORIES NOTE - IT IS IMPORTANT TO SPECIFY MODEL NUMBER AND SERIAL NUMBER WHEN ORDERING ACCESSORIES...
- Page 11 2OAC Optional ACCESSORIES NOZZLE KIT 2NK-1 (2 X 4-Inch) 2OAC12 2NK-2 (2 X 6-Inch) 2OAC18, 24 2NK-3 (2 X 8-Inch) 2OAC36, 60 EVAPORATOR RETURN AIR PLENUM DEP-10 (10-Inch Round) 2OAC12 2DEP-12 (12-Inch Round) 2OAC18, 24 DEP-16 (16-Inch Round) 2OAC36, 60 DISCHARGE DUCT ADAPTER 2DDA-6 (6-Inch Round) 2OAC12...
-
Page 12: Accessories
2 x 2 CEILING ACCESSORIES DUCT-PANEL CEILING PANEL DUCT KIT A ceiling panel kit is available for discharging VINYL COATED the condenser air above a drop ceiling. The FABRIC DUCT ceiling panel duct kits are furnished with a white vinyl coated flexible duct that allows for convenient installation. - Page 13 ACCESSORIES DISCHARGE AIR NOZZLE KIT ASSEMBLY The optional discharge nozzle kits are used to direct the conditioned air to a specific target area. By concentrating the airflow, the noz- zles increase the air velocity towards production lines to cool per- sonnel and/or equipment.
- Page 14 ACCESSORIES CONDENSER RETURN AIR PLENUM Condenser return air plenums are available for installations where it is required to duct air to the inlet of the condenser. The plenum easily fits into place on the back of the unit, and is provided with a flange for connecting 12-inch or 16-inch flexible ducting.
- Page 15 ACCESSORIES EVAPORATOR RETURN AIR PLENUM Evaporator return air plenums are available for installations where it is required to duct air to the inlet of the evaporator. The evaporator return air plenum allows the user to connect round duct (flexible or rigid) to the return air intake to reduce air noise and increase the number of options for solving difficult application problems.
- Page 16 ACCESSORIES DISCHARGE DUCT ADAPTER Discharge duct adapters are available for applications where ducted evaporator discharge is required. The adapters can be easily installed on the unit without fasteners, and can be used for either vertical or horizontal ducting. The standard discharge grille is removed and the 2DDA is attached in the grille opening.
-
Page 17: Inspection/Installation
BEFORE INSTALLING Check the unit for any damage. All OceanAire products are thoroughly inspected at the factory and carefully packaged. If any damage is evident, contact IMMEDIATELY. -
Page 18: Deluxe Electronic Controller
(accessory parts may be required). POWER OCEANAIRE DELUXE ELECTRONIC CONTROLLER When power is connected, the controller will display “888” momentarily, and then disappear. Press the POWER button, then scroll drown to the TEMP SELECT button until the SET POINT is displayed. - Page 19 CONTROLLER PROGRAMMING MENU 1) Make sure the unit has power . 2) Press the power button “OFF”. “S-U-D-S” 3) Press the following buttons in sequence elect— p arrow — own arrow — elect) 4) The display will begin flashing P1 and a number. If there is no display, repeat the sequence, making sure the unit has power, but is turned OFF.
- Page 20 P1 = 85, P2 = 40 2OAC60 P1 = 85, P2 = 45 NOTICE Program Parameters are NOT controller default values. They are OceanAire Factory Settings DISPLAY FAULTS LAC………………….. Low AC line power AAA or - - -……… Failed Air Sensor (unit will not run) CON…………………..
-
Page 21: Replacement Parts Procedure
REPLACEMENT PARTS PROCEDURE IT IS RECOMMENDED THAT ALL OCEANAIRE UNITS BE SERVICED BY A QUALFIED AIR CONDITIONING SERVICE TECHNICIAN WARNING —TO AVOID INJURY, DISCONNECT UNIT POWER PRIOR TO SERVICING A. FAN MOTORS 1. Remove cabinet's left-side panel (when looking at the front of the unit). -
Page 22: Troubleshooting Guide
TROUBLESHOOTING GUIDE The following steps and procedures are recommended for correcting the problems indicated. In the event that the problem can not be corrected, service may be required. SERVICE SHOULD BE PERFORMED BY A QUALIFIED AIR CONDITIONING SERVICE TECHNICIAN PROBLEM: UNIT DOES NOT POWER UP CAUSE: Power interruption REMEDY: Check LCDI (on models with LCDI), and reset LCDI. -
Page 23: Preventive Maintenance
PREVENTIVE MAINTENANCE 2OAC Models are designed to last a long time and to give maximum performance and reliability with minimum maintenance. To prolong the life of the unit, regular maintenance must be performed as specified below: BLOWER MOTORS The motors on all units have permanently lubricated bearings. No oiling is necessary FILTERS A clogged filter will cause the unit to operate at greatly reduced efficiencies. -
Page 24: Interior View
2OAC INTERIOR VIEW Condenser Blower / Motor Evaporator Electronic Blower / Motor Controller Condenser Coil Display Cable Control Box & Power Module Evaporator Coil Strainer Condensate Tank Microswitch Assembly High Pressure Switch... -
Page 25: Piping Schematic
PIPING SCHEMATIC... -
Page 26: Single Phase Wiring Diagrams
WIRING SCHEMATIC FOR 2OAC12, 18 and 24... - Page 27 WIRING SCHEMATIC FOR 2OAC3612...
- Page 28 WIRING SCHEMATIC FOR 2OAC6012 CEAN IRE POWER MODULE AIR-COOLED SPOT COOLER MODELS 2OAC6012 208-230 VOLT/ SINGLE-PHASE Plug 6-50P...
-
Page 29: Three Phase Monitor
THREE PHASE MONITOR... -
Page 30: Three Phase Wiring Diagrams
WIRING SCHEMATIC FOR 2OAC3632 CONDENSATE TANK FULL OUTS I DE TE M P SWITCH S E NS OR COOLI NG ONLY HP RE S E T S WI TCH DI S P LAY CEAN IRE I NS I DE TE M P S E NS OR FRE ON OAT/ H20... - Page 31 WIRING SCHEMATIC FOR 2OAC3634 CONDENSATE TANK FULL OUTS I DE TE M P SWITCH S E NS OR COOLI NG ONLY HP RE S E T S WI TCH DI S P LAY CEAN IRE I NS I DE TE M P S E NS OR FRE ON OAT/ H20...
- Page 32 WIRING SCHEMATIC FOR 2OAC6032 OUTSIDE TEMP SENSOR COOLING HP RESET SWITCH DISPLA Y ONLY CEAN INSIDE TEMP SENSOR FREON OA T/H20 ALT AIR DISPLA Y POWER MODULE 208-230V 3-Phase COMPRESSOR COMP COMP PUMP VALVE RUN PUMP COMP CONTACTOR EVAP MOTOR Y-O UT FAULT 230 V...
- Page 33 WIRING SCHEMATIC FOR 2OAC6034 OUTSIDE TEMP SENSOR COOLING ONLY HP RESET SWITCH DISPLA Y CEAN INSIDE TEMP SENSOR FREON OA T/H20 ALT AIR DISPLA Y POWER MODULE 460V 3-Phase COMPRESSOR COMP COMP PUMP VALVE RUN PUMP COMP CONTACTOR EVAP MOTOR Y-O UT FAULT 230 V...
-
Page 34: Warranty
LIMITED WARRANTY The Manufacturer (OceanAire, Inc.) warrants to the original owner that the Product will be free from defects in material or workmanship for a period not to exceed one (1) year from date of installation. If upon examination by the Manufacturer,... -
Page 35: Tech Notes
TECH NOTES... -
Page 36: End User Information
SERIAL NUMBER: _____________________________ Date Purchased: ______________________________ Purchased from: _______________________________ Date Installed: _________________________________ For Technical Support or service parts, contact our Keep Cool Team at 847-583-0311 In order to receive the benefits of our warranty, please register on-line at www.oceanaire-inc.com Form EISM-2OAC 10012021...
