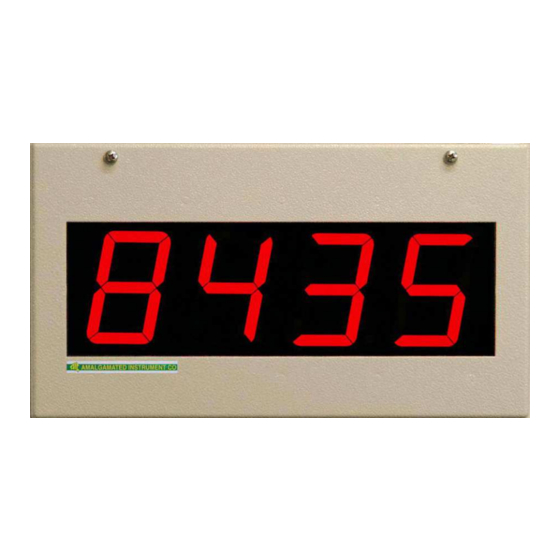

AMALGAMATED INSTRUMENT LD-232 Series Manual

Input large digit display arithmetic and wind speed/direction addendum

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Arithmetic and Wind Speed/Direction Addendum

AMALGAMATED INSTRUMENT CO PTY LTD

Unit 5, 28 Leighton Place Hornsby

NSW 2077 Australia

LD-232, LD-485 and LC-CL

Serial Input

Large Digit Display

Telephone: +61 2 9476 2244

Facsimile: +61 2 9476 2902

ACN: 001 589 439

e-mail: sales@aicpl.com.au

Internet: www.aicpl.com.au

Table of Contents

Need help?

Do you have a question about the LD-232 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for AMALGAMATED INSTRUMENT LD-232 Series

Page 1 LD-232, LD-485 and LC-CL Serial Input Large Digit Display Arithmetic and Wind Speed/Direction Addendum AMALGAMATED INSTRUMENT CO PTY LTD ACN: 001 589 439 Unit 5, 28 Leighton Place Hornsby Telephone: +61 2 9476 2244 e-mail: sales@aicpl.com.au NSW 2077 Australia Facsimile: +61 2 9476 2902...
Page 2: Table Of Contents
Table of Contents 1 Introduction 2 Electrical installation 3 Function tables - Arithmetic mode 4 Arithmetic and Wind Speed/Direction mode functions 5 Arithmetic function examples 6 Function table - Wind Speed and Direction mode 7 Wind speed and direction NMEA mode 2 of LDRSMANADD-2.3-0...
Page 3: Introduction
Introduction This addendum to the LD-232, LD-485 and LD-CL manual contains information for the installation and operation using the arithmetic mode ARtH or the wind monitor mode NMEA. The display will accept inputs from RS232, RS485, RS422 or serial current loop inputs (input type is factory conﬁgured). The two modes covered by this addendum are detailed below.
Page 4: Electrical Installation
Electrical installation Electrical installation The display is designed for continuous operation and no power switch is ﬁtted to the unit. It is rec- ommended that an external switch and fuse be provided to allow the unit to be removed for servicing. The terminal blocks are plug in screw type for ease of installation and allow for wires of up to 1.5mm (2.5mm for relay, AC or isolated DC supply connections) to be ﬁtted.
Page 5 100mm and 200mm display isolated DC power supplies Isolated DC supplies (12 to 24VDC) for 100mm and 200mm LED and 100mm electromagnetic displays connect to the isolated supply pcb on the base board. Optional isolated DC supply Optional isolated dc board (for use with 100mm &...
Page 6 High and low voltage AC supplies 240 & 110VAC supplies. Low voltage AC supplies. For 100mm/200mm LED or 100mm For 100mm/200mm LED or 100mm electromagnetic display types only. electromagnetic display types only. Black Black To display board To display board GRN/YEL WHT GRN/YEL 48VAC...
Page 7 Serial input connections If wiring RS232 to a 9 or 25 pin D type connector the standard connections are as follows: 9 pin: Tx pin 3, Rx pin 2, GND pin 5 25 pin: Tx pin 2, Rx pin 3, GND pin 7 See note below regarding Tx and Rx crossing when wiring RS232 LDRSMANADD-2.3-0 7 of...
Page 8 Remote input and DC out connections Relay connections The display is supplied with two alarm relays as standard with connections on terminal P2. The relays are single pole single throw types and are rated at 5A, 240VAC into a resistive load. The relay contacts are voltage free and may be programmed for normally open or normally closed operation.
Page 9 Wiring to WS-MMW-005 wind speed and direction sensor The WS-MMW-005 can be connected as either RS232 or RS485 (not serial current loop) use the connection type which matches the input type of the display. LDRSMANADD-2.3-0 9 of...
Page 10: Function Tables - Arithmetic Mode
Function tables - Arithmetic mode Note: the order in which the functions appear on the display may not be exactly as shown below. The availability and order of functions is determined by choice of function settings and options ﬁtted. Functions in this ﬁrst table are available in FUNC or CAL mode Display Function Range...
Page 11 dCPt 0, 0.1 etc. Decimal point 4.20 FLtr 0 to 8 Digital ﬁlter 4.21 AthH 1 to 8 Number of active channels for 4.25 Arth mode P1 to P8 or S1 Channel 1 address 4.26 Addr to S8 or t1 to P1 to P8 or S1 Channel 2 address 4.27...
Page 12 Eb1 value for arithmetic formula -32727 to 4.43 32767 EC1 value for arithmetic formula -32727 to 4.44 32767 EA2 value for arithmetic formula -32727 to 4.45 32767 Eb2 value for arithmetic formula -32727 to 4.46 32767 EC2 value for arithmetic formula -32727 to 4.47 32767...
Page 13 Add, Sub, Arithmetic operation between 4.66 Prod, diU, channels 1 and 2 High, Lo, SINE, COS or C.SUb Add, Sub, Arithmetic operation between 4.67 Prod, diU, channel 3 and previous operation High, Lo, SINE or COS Add, Sub, Arithmetic operation between 4.68 Prod, diU, channel 4 and previous operation...
Page 14 CodE dISP, ASCI, dISP Data type for display 4.82 UAL, ARtH, M.buS, PtA, SCAN, NMEA or CS INPt, t.out INPt Alarm relay 1 operation mode 4.83 OPER or both INPt, t.out INPt Alarm relay 2 operation mode 4.84 OPER or both dS.to 0 to 9999 Display timeout...
Page 15: Arithmetic And Wind Speed/Direction Mode Functions
Arithmetic and Wind Speed/Direction mode functions The LD display setup and calibration functions are conﬁgured through a push button sequence. The three push buttons located on the input pcb (also at the front on some display options) are used to alter settings.
Page 16 changes or to move on to the next setpoint. Note: this easy access also functions in the same manner for the PI control setpoint (relay and/or analog PI output) if PI control is available. The instrument must be set in the manner described below to allow the easy access facility to work: 1.
Page 17 Alarm relay 1 high setpoint A1Hi Display: Any display value or OFF Range: Default Value: Displays and sets the high setpoint value for alarm relay 1. Use this high setpoint function if a relay operation is required when the display value becomes equal to or more than the low setpoint value. To set a high alarm value go to the A1Hi function and use the ^ or v push buttons to set the value required then press F to accept this value.
Page 18 Alarm relay 1 hysteresis (deadband) A1HY Display: 0 to 9999 Range: Default Value: Displays and sets the alarm relay hysteresis limit for relay 1. To set a relay hysteresis value go to the A1HY function and use the ^ or v push buttons to set the value required then press F to accept this value.
Page 19 Alarm relay 2 trip time A2tt Display: 0 to 999.9 Range: Default Value: Displays and sets the alarm trip time in seconds and tenths of seconds for relay 2 and operates in the same manner as the A1tt function. See A1tt for further description. Alarm relay 1 reset time A1rt Display:...
Page 20 4.12 Alarm relay 2 normally open/closed A2n.o or A2n.c Display: A2n.o or A2n.c Range: A2n.o Default Value: Displays and sets the setpoint alarm relay 2 action to normally open (de-energised) or normally closed (energised) and operates in the same manner as the A1n.o or A1n.c function. See A1n.o or A1n.c for further description.
Page 21 Example: With duLL set to 15 and brGt set to 63 and the R.INP function set to duLL the display brightness will change from the 63 level to 15 when a switch connected to the remote input terminals is activated. 4.16 Automatic display brightness adjustment brGt AUto...
Page 22 4.20 Decimal point dCPt Display: 0, 0.1 etc. Range: Default Value: Displays and sets the decimal point. By pressing the ^ or v pushbutton at the dCPt function the decimal point position may be set. The display will indicate as follows: 0 (no decimal point), 0.1 (1 decimal place), 0.02 (2 decimal places), 0.003 (3 decimal places) and 0.0004 for display with more than 4 digits.
Page 23 channel scans or between wind speed and direction if Code function is set to NMEA. The scan period can be set from 0 to 255 seconds. If set to 0 the display will not automatically scroll between channels and the ^ or v button must be used to change the channel displayed.
Page 24 4.29 Channel 4 address Ch4 Addr Display: P1 to P8 or S1 to S8 or t1 to t8 Range: Default Value: Seen only when Code function is set to SCAN or Arth. Scan address for channel 4, see function 4.26 for further information.
Page 25 4.35 Channel 2 decimal point Ch2 dCPt Display: 0, 0.1 etc. Range: Default Value: Seen only in CodE = Arth mode. Displays and sets the decimal point for input channel 2. See function 4.34 for further details. 4.36 Channel 3 decimal point Ch3 dCPt Display: 0, 0.1 etc.
Page 26 4.41 Channel 8 decimal point Ch8 dCPt Display: 0, 0.1 etc. Range: Default Value: Seen only in CodE = Arth mode. Displays and sets the decimal point for input channel 8. See function 4.34 for further details. Channel 1 EA1 value for arithmetic formula 4.42 Display: -32727 to 32767...
Page 27 See function 4.42 for further details. Channel 2 Eb2 value for arithmetic formula 4.46 Display: -32727 to 32767 Range: Default Value: Seen only in CodE = Arth mode. Displays and sets the Eb2 value to be used in the arithmetic formula. See function 4.42 for further details.
Page 28 Channel 4 Eb4 value for arithmetic formula 4.52 Display: -32727 to 32767 Range: Default Value: Seen only in CodE = Arth mode. Displays and sets the Eb4 value to be used in the arithmetic formula. See function 4.42 for further details. Channel 4 EC4 value for arithmetic formula 4.53 Display:...
Page 29 Channel 6 Eb6 value for arithmetic formula 4.58 Display: -32727 to 32767 Range: Default Value: Seen only in CodE = Arth mode. Displays and sets the Eb6 value to be used in the arithmetic formula. See function 4.42 for further details. Channel 6 EC6 value for arithmetic formula 4.59 Display:...
Page 30 Channel 8 Eb8 value for arithmetic formula 4.64 Display: -32727 to 32767 Range: Default Value: Seen only in CodE = Arth mode. Displays and sets the Eb8 value to be used in the arithmetic formula. See function 4.42 for further details. Channel 8 EC8 value for arithmetic formula 4.65 Display:...
Page 31 Sub - mathematical result of OP1 minus channel 3 formula Prod - mathematical result of OP1 times channel 3 formula diU - mathematical result of OP1 divided by channel 3 formula High - highest of mathematical result of OP1 or channel 3 formula Lo - lowest of mathematical result of OP1 or channel 3 formula Sine - mathematical result of OP1 times the sine of the angle represented by channel 3 formula COS - mathematical result of OP1 times the cosine of the angle represented by channel 3 formula...
Page 32 Lo - lowest of mathematical result of OP1 and OP2 and OP3 or channel 5 formula Sine - mathematical result of OP1 and OP2 and OP3 times the sine of the angle represented by channel 5 formula COS - mathematical result of OP1 and OP2 and OP3 times the cosine of the angle represented by channel 5 formula 4.70 Arithmetic operation between channel 6 and previous operation...
Page 33 Sine - mathematical result of OP1 and OP2 and OP3 and OP4 and OP5 times the sine of the angle represented by channel 7 formula COS - mathematical result of OP1 and OP2 and OP3 and OP4 and OP5 times the cosine of the angle represented by channel 7 formula 4.72 Arithmetic operation between channel 8 and previous operation...
Page 34 bOtH then the display will be able to indicate both positive and negative values. If set to POS the display will allow only positive values with any values below zero being rounded to zero. If set to NEG then the display will allow only negative values with any value above zero being rounded to zero.
Page 35 4.80 Channel 7 polarity Display: both, POS or NEG Range: both Default Value: Displays and sets the polarity selection for the display of the engineering value for channel 7. See function 4.74 for further information. 4.81 Channel 8 polarity Display: both, POS or NEG Range: both...
Page 36 4.84 Alarm relay 2 operation mode A2 OPER Display: INPt, t.out or both Range: INPt Default Value: Relay 2 operation mode - relay 2 can be made to operate from the input value (e.g. at the A1Lo or A1Hi value, applicable when CodE is set to UAL or M.buS only) or when the display blanks due to the timeout value being exceeded (timeout value set at the dS.to function).
Page 37 4.88 Data string timeout t.out Display: 0.0 to 10.0 Range: Default Value: This function allows the user to set a timeout value for the data stream. Valid times are 0.0 to 10.0 seconds, a setting of 0.0 disables the timeout. The timeout will cause the current data stream to be ignored if the time gap between characters in the stream exceeds the t.out value.
Page 38 HiLo - toggle between Hi and Lo displays. This function allows the remote input to be used to toggle between peak and valley memory displays. The ﬁrst operation of the remote input will cause the peak memory value to be displayed, the next operation will give a valley memory display. P Hi or P Lo will ﬂash before each display to give an indication of display type.
Page 39 4.94 Baud rate for optional serial communications bAUd RAtE Display: 300, 600, 1200, 2400, 4800, 9600, 19.2 or 38.4 Range: 9600 Default Value: Select from 300, 600, 1200, 2400, 4800, 9600, 19.2 or 38.4 baud. This must be set to match the baud rate selected at the sending device.
Page 40: Arithmetic Function Examples
Arithmetic function examples Example 1: To get an average of channels 1, 2, 3 and 4 each input is added together and divided by 4: Program: E A1 = 1, E b1 = 0, E C1 = 4, E A2 = 1, E b2 = 0, E C2 = 4, E A3 = 1, E b3 = 0, E C3 = 4, E A4 = 1, E b4 = 0, E C4 = 4, OP 1 = add,...
Page 41: Function Table - Wind Speed And Direction Mode
Function table - Wind Speed and Direction mode Note: the order in which the functions appear on the display may not be exactly as shown below. The availability and order of functions is determined by choice of function settings and options ﬁtted. Functions in this ﬁrst table are available in FUNC or CAL mode Display Function...
Page 42 SPEd Units to be used for NMEA mode MS, MPH, hPH 4.22 Unit or hnot dFLt Default display for NMEA mode dir, SPEd or SCAN 4.23 dISP SCAN SCAN 0 to 255 Number of seconds between scans 4.24 SECS CodE dISP, ASCI, dISP Data type for display...
Page 43: Wind Speed And Direction Nmea Mode
Wind speed and direction NMEA mode This chapter deals speciﬁcally with the NMEA (National Marine Elecronics Association) mode of opera- tion. When used in this mode the display must be connected to a wind sensor with NMEA output such as model WS-MMW-005 solid state wind speed and direction sensor and the RM4 CodE function must be set to NMEA.
Page 44 ASCII Code Conversion Listing ASCII for control characters is shown in brackets. e.g. STX may in some cases be entered as B. ASCII char. Decimal ASCII char. Decimal ASCII char. Decimal NUL ( @) SOH ( A) STX ( B) ETX ( C) EOT ( D) ENQ ( E)
