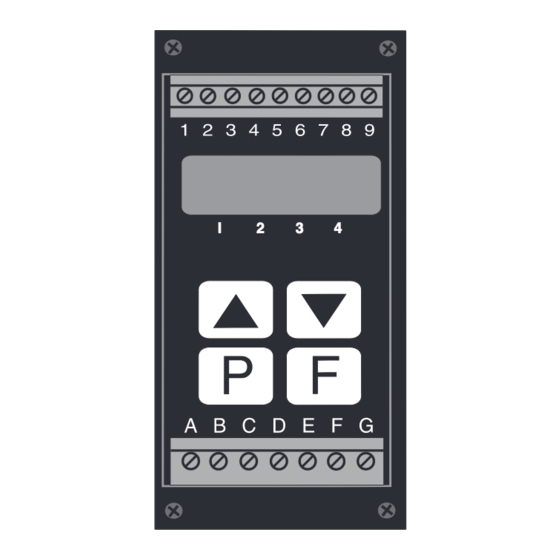

AMALGAMATED INSTRUMENT RM4-RS Manual

Serial input arithmetic and wind speed/direction addendum
Hide thumbs

Advertisement

Quick Links

Download this manual
Arithmetic and Wind Speed/Direction
AMALGAMATED INSTRUMENT CO
Unit 5, 28 Leighton Place Hornsby
NSW 2077 Australia
Model RM4-RS
Serial Input
Addendum
Telephone: +61 2 9476 2244
Facsimile: +61 2 9476 2902
ABN: 80 619 963 692
e-mail: sales@aicpl.com.au
Internet: www.aicpl.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the RM4-RS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMALGAMATED INSTRUMENT RM4-RS

Summary of Contents for AMALGAMATED INSTRUMENT RM4-RS

  • Page 1 Model RM4-RS Serial Input Arithmetic and Wind Speed/Direction Addendum AMALGAMATED INSTRUMENT CO ABN: 80 619 963 692 Unit 5, 28 Leighton Place Hornsby Telephone: +61 2 9476 2244 e-mail: sales@aicpl.com.au NSW 2077 Australia Facsimile: +61 2 9476 2902 Internet: www.aicpl.com.au...

  • Page 2: Table Of Contents

    Table of Contents 1 Introduction 2 Mechanical installation 3 Electrical installation 4 Function tables - Arithmetic mode 5 Function table - Wind Speed and Direction mode 6 Arithmetic and Wind Speed/Direction mode functions 7 Arithmetic function examples 8 Wind speed and direction NMEA mode 2 of RM4RSADDMAN-1.3-0...

  • Page 3: Introduction

    This addendum to the RM4-RS manual contains information for the installation and operation using the arithmetic mode ARtH or the wind monitor mode NMEA. Refer to the main RM4-RS and RM4-RSA manual for any details not covered in this addendum.

  • Page 4: Mechanical Installation

    Mechanical installation The instrument is designed for DIN rail mounting. The instrument clips on to 35mm DIN standard rails (EN50022). Cut the DIN rail to length and install where required. To install the instrument simply clip onto the rail as shown below. To remove the instrument lever the lower arm downwards using a broad bladed screwdriver to pull the clip away from the DIN rail.

  • Page 5: Electrical Installation

    Electrical installation The RM4 Meter is designed for continuous operation and no power switch is fitted to the unit. It is recommended that an external switch and fuse be provided to allow the unit to be removed for servicing. The terminal blocks allow for wires of up to 2.5mm to be fitted for power supply and relays 1 and 2 or 1.5mm for input connections and optional outputs.
  • Page 6 Power supply connections AC supply connections use terminal G (Active), terminal F (Neutral) and terminal E (Case earth). DC supply connections (12 to 48VDC) use terminal G (DC-), terminal F (DC+) and terminal E (Case earth). Serial input connections Terminating resistors: If long cable runs are used in RS485 or RS422 installations reflections of data signals along the line can in some situations cause corruption of the signal.
  • Page 7 Remote input connections The selected remote input function can be operated via an external contact closure via a switch, relay or open collector transistor switch. Choose momentary or latching switch to suit function selected. Remote input Optional outputs Refer to the separate “RM4 Din Rail Meter Optional Output Addendum” for connection details of optional outputs fitted.

  • Page 8: Function Tables - Arithmetic Mode

    Function tables - Arithmetic mode Note: the order in which the functions appear on the display may not be exactly as shown below. The availability and order of functions is determined by choice of function settings and options fitted. Functions in this first table are available in FUNC or CAL mode. Display Function Range...
  • Page 9 REC~ 1000 Second analog output option Any display 6.15 high display value ( Optional) value rEC2 ch0 to ch8 Analog output 2 channel 6.16 ( Optional) drnd 1 to 5000 Display rounding 6.17 dCPt 0, 0.1 etc. Decimal point 6.18 FLtr 0 to 8 Digital filter...
  • Page 10 0, 0.1 etc. Channel 6 decimal point 6.52 dCPt 0, 0.1 etc. Channel 7 decimal point 6.53 dCPt 0, 0.1 etc. Channel 8 decimal point 6.54 dCPt EA1 value for arithmetic -19999 to 6.55 32767 formula Eb1 value for arithmetic -19999 to 6.56 32767...
  • Page 11 EA7 value for arithmetic -19999 to 6.73 32767 formula Eb7 value for arithmetic -19999 to 6.74 32767 formula EC7 value for arithmetic -19999 to 6.75 32767 formula EA8 value for arithmetic -19999 to 6.76 32767 formula Eb8 value for arithmetic -19999 to 6.77 32767...
  • Page 12 both, POS both Channel 3 polarity 6.88 or NEG both, POS both Channel 4 polarity 6.89 or NEG both, POS both Channel 5 polarity 6.90 or NEG both, POS both Channel 6 polarity 6.91 or NEG both, POS both Channel 7 polarity 6.92 or NEG both, POS...
  • Page 13 ACCS OFF, EASY, Access mode 6.34 NONE or ALL SPAC A1, A1-2 etc. Setpoint access mode 6.35 ( Optional) ch0 to ch8 Alarm relay 1 operation channel 6.36 A2 to ch0 to ch8 Alarm relay 2 to 4 operation 6.37 channel Clear zero 6.94...

  • Page 14: Function Table - Wind Speed And Direction Mode

    Function table - Wind Speed and Direction mode Note: the order in which the functions appear on the display may not be exactly as shown below. The availability and order of functions is determined by choice of function settings and options fitted.
  • Page 15 REC~ 1000 Second analog output option Any display 6.15 high display value ( Optional) value rEC2 ch0 to ch8 Analog output 2 channel 6.16 ( Optional) SPEd Units to be used for NMEA MS, MPH, 6.20 Unit hPH or hnot mode dFLt Default display for NMEA mode...
  • Page 16 SPAC A1, A1-2 etc. Setpoint access mode 6.35 ( Optional) ch0 to ch8 Alarm relay 1 operation channel 6.36 A2 to ch0 to ch8 Alarm relay 2 to 4 operation 6.37 channel R.trn 300, 600, 9600 Baud rate for serial 6.95 bAUd 1200, 2400,...

  • Page 17: Arithmetic And Wind Speed/Direction Mode Functions

    Arithmetic and Wind Speed/Direction mode functions Some of the functions described in this chapter are common to both ARtH and NMEA modes, others will only appear in one mode, check the function tables for each mode to confirm which functions apply. The RM4 setup and calibration functions are configured through a push button sequence.
  • Page 18 Example: Entering FUNC mode to change alarm 1 high function A1Hi from OFF to 100 Press & release Press & release Press & release F U N C A 1 H i O F F F until then press until Press &...
  • Page 19 Alarm relay low setpoint AxLo Display: Any display value or OFF Range: Default Value: OFF Displays and sets the low setpoint value for the designated alarm relay x. Note x will be replaced by the relay number when displayed e.g. A1Lo for relay 1. Use this low setpoint function if a relay operation is required when the display value becomes equal to or less than the low setpoint value.
  • Page 20 Display Value A Hi A HY value A Hi Relay minus activates A HY at this value Relay or above resets below this value Alarm high operation with hysteresis Time Alarm relay hysteresis (deadband) AxHY Display: 0 to 9999 Range: Default Value: 10 Displays and sets the alarm relay hysteresis limit for the designated relay x.
  • Page 21 low setpoint values. The trip time provides a time delay before the alarm relay will activate when an alarm condition is present. The alarm condition must be present continuously for the whole trip time period before the alarm will activate. If the input moves out of alarm condition during this period the timer will reset and the full time delay will be restored.
  • Page 22 an independent setpoint value or may be linked to operate at a fixed difference to another relay setpoint, known as trailing operation. The operation is as follows: Alarm 1 (AI) is always independent. Alarm 2 (A2) may be independent or may be linked to Alarm 1.
  • Page 23 6.10 Auto display dimming timer d.oFF SECS Display: 0 to 9999 Range: Default Value: 0 This function allows a time to be set after which the display brightness (set by the brGt function) will automatically be set to the level set at the duLL function. The auto dimming feature can be used to reduce power consumption.
  • Page 24 6.13 Analog output 1 channel Display: ch0 to ch8 Range: Default Value: ch0 Seen only when analog retransmission option fitted. Refer to the separate “RM4 Din Rail Meter Optional Output Addendum” booklet supplied when this option is fitted for wiring details and link settings.
  • Page 25 Display rounding is useful for reducing the instrument resolution without loss of accuracy in ap- plications where it is undesirable to display to a fine tolerance. To set the display rounding value go to the drnd function and use the ^ or v push buttons to set the required value then press F to accept this selection.
  • Page 26 Default display for NMEA mode 6.21 dFLt dISP Display: dir, SPEd or SCAN Range: Default Value: SCAN Applicable to NMEA mode only. Select from the following choices: dir (wind direction), SPEd (wind speed) or SCAN (automatically toggles display between direction and speed at the rate set by the SCAN SECS function).
  • Page 27 6.25 Data type dAtA Display: 8.bit or 7.bit Range: Default Value: 8.bit Displays and selects the input data type. Select either 8.bit for 8 data bits plus 1 stop bit or 7.bit for 7 data bits plus 1 stop bit. This must be set to match the number of data bits of the sending device.
  • Page 28 With NMEA selected the instrument must be connected to wind speed and direction sensor or similar NMEA output sensor. See “Wind Speed and Direction NMEA mode” chapter in the RM4-RS addendum booklet for wiring details and communications setup requirements. 28 of...
  • Page 29 CS mode In CS mode up to 8 values can be sent in comma separated form. The number of values to be displayed is set at the SCAN CH function. The ^ or v buttons can be used to view these values or the display can be set to scan between values automatically via the SCAN SECS function.
  • Page 30 6.31 Data string timeout t.out Display: 0.0 to 10.0 Range: Default Value: 1.0 This function allows the user to set a timeout value for the data stream. Valid times are 0.0 to 10.0 seconds, a setting of 0.0 disables the timeout. The timeout will cause the current data stream to be ignored if the time gap between characters in the stream exceeds the t.out value.
  • Page 31 Hi - peak memory. The peak value stored in memory will be displayed if the remote input terminals are short circuited, if the short circuit is momentary then the display will return to normal measurement after 20 seconds. If the short circuit is held for 2 to 3 seconds or the power is removed from the instrument then the memory will be reset.
  • Page 32 6.34 Access mode ACCS Display: OFF, EASY, NONE or ALL Range: Default Value: OFF Access mode - the access mode function ACCS has four possible settings namely OFF, EASY, NONE and ALL. If set to OFF the mode function has no effect on alarm relay operation. If set to EASY the “easy alarm access”...
  • Page 33 modes. Note: relays 3 and 4 are optional. See section 6.36 Number of active channels for Arth mode 6.38 AthH CH Display: 1 to 8 Range: Default Value: 4 Displays and selects the number of active input channels used in the arithmetic operation. The instrument will automatically poll the number of channels selected.
  • Page 34 6.42 Channel 4 address Ch4 Addr Display: P1 to P8 or S1 to S8 or t1 to t8 Range: Default Value: P1 Seen only when Code function is set to SCAN or Arth. Scan address for channel 4, see function 6.39 for further information.
  • Page 35 6.47 Channel 1 decimal point Ch1 dCPt Display: 0, 0.1 etc. Range: Default Value: 0 Seen only in CodE = Arth mode. Displays and sets the decimal point for input channel 1. By pressing the ^ or v pushbuttons the decimal point position may be set. The display will indicate as follows: 0 (no decimal point), 0.1 (1 decimal place), 0.02 (2 decimal places) etc.
  • Page 36 6.52 Channel 6 decimal point Ch6 dCPt Display: 0, 0.1 etc. Range: Default Value: 0 Seen only in CodE = Arth mode. Displays and sets the decimal point for input channel 6. See function 6.47 for further details. 6.53 Channel 7 decimal point Ch7 dCPt Display: 0, 0.1 etc.
  • Page 37 Prod Prod Prod EA1 * (Ch1 + Eb1) EA2 * (Ch2 + Eb2) EA3 * (Ch3 + Eb3) EA4 * (Ch4 + Eb4) hIGh hIGh hIGh SinE SinE SinE C.SUb C.SUb C.SUb Note: A and C are whole numbers, b has the same decimal place setting as its associated chan- nel.
  • Page 38 Channel 2 EC2 value for arithmetic formula 6.60 Display: -19999 to 32767 Range: Default Value: 1 Seen only in SEt OPEr = Arth mode. Displays and sets the EC2 value to be used in the arithmetic formula. See function 6.55 for further details.
  • Page 39 Channel 4 Eb4 value for arithmetic formula 6.65 Display: -19999 to 32767 Range: Default Value: 0 Seen only in CodE = Arth mode. Displays and sets the Eb4 value to be used in the arithmetic formula. See function 6.55 for further details. Channel 4 EC4 value for arithmetic formula 6.66 Display:...
  • Page 40 Channel 6 EA6 value for arithmetic formula 6.70 Display: -19999 to 32767 Range: Default Value: 1 Seen only in CodE = Arth mode. Displays and sets the EA6 value to be used in the arithmetic formula. See function 6.55 for further details. Channel 6 Eb6 value for arithmetic formula 6.71 Display:...
  • Page 41 Channel 7 EC7 value for arithmetic formula 6.75 Display: -19999 to 32767 Range: Default Value: 1 Seen only in CodE = Arth mode. Displays and sets the EC7 value to be used in the arithmetic formula. See function 6.55 for further details. Channel 8 EA8 value for arithmetic formula 6.76 Display:...
  • Page 42 Sub - channel 1 formula minus channel 2 formula Prod - channel 1 formula times channel 2 formula diU - channel 1 formula divided by channel 2 formula High - highest of channel 1 formula or channel 2 formula Lo - lowest of channel 1 formula or channel 2 formula Sine - channel 1 formula times the sine of the angle represented by channel 2 formula COS - channel 1 formula times the cosine of the angle represented by channel 2 formula C.SUb - channel 1 formula clock time input minus channel 2 formula clock time.
  • Page 43 Add - mathematical result of OP1 and OP2 plus channel 4 formula Sub - mathematical result of OP1 and OP2 minus channel 4 formula Prod - mathematical result of OP1 and OP2 times channel 4 formula diU - mathematical result of OP1 and OP2 divided by channel 4 formula High - highest of mathematical result of OP1 and OP2 or channel 4 formula Lo - lowest of mathematical result of OP1 and OP2 or channel 4 formula Sine - mathematical result of OP1 and OP2 times the sine of the angle represented by...
  • Page 44 Add - mathematical result of OP1 and OP2 and OP3 and OP4 plus channel 6 formula Sub - mathematical result of OP1 and OP2 and OP3 and OP4 minus channel 6 formula Prod - mathematical result of OP1 and OP2 and OP3 and OP4 times channel 6 formula diU - mathematical result of OP1 and OP2 and OP3 and OP4 divided by channel 6 formula High - highest of mathematical result of OP1 and OP2 and OP3 and OP4 or channel 6 formula...
  • Page 45 6.85 Arithmetic operation between channel 8 and previous operation Display: Add, Sub, Prod, diU, High, Lo, SINE or COS Range: Default Value: Add Displays the arithmetic operation to be undertaken between the channel 8 formula and the previous result. See also function 6.55 which illustrates the formula.
  • Page 46 function 6.86 for further information. 6.88 Channel 3 polarity Display: both, POS or NEG Range: Default Value: both Displays and sets the polarity selection for the display of the engineering value for channel 3. See function 6.86 for further information. 6.89 Channel 4 polarity Display:...
  • Page 47 6.93 Channel 8 polarity Display: both, POS or NEG Range: Default Value: both Displays and sets the polarity selection for the display of the engineering value for channel 8. See function 6.86 for further information. 6.94 Clear zero CLr ZERO Display: Range: Default Value: n/a...
  • Page 48 booklet supplied when this option is fitted. Selects the required output mode for retransmission. Note: if the CodE function is set to ASCI then only the dISP output selection can be used. 6.98 Address for serial retransmission R.trn Addr Display: 0 to 31 Range: Default Value: 0...

  • Page 49: Arithmetic Function Examples

    Arithmetic function examples Example 1: To get an average of channels 1, 2, 3 and 4 each input is added together and divided by 4: Program: E A1 = 1, E b1 = 0, E C1 = 4, E A2 = 1, E b2 = 0, E C2 = 4, E A3 = 1, E b3 = 0, E C3 = 4, E A4 = 1, E b4 = 0, E C4 = 4, OP 1 = add,...

  • Page 50: Wind Speed And Direction Nmea Mode

    This chapter deals specifically with the NMEA (National Marine Elecronics Association) mode of operation. When used in this mode the RM4-RS must be connected to a sensor with NMEA output and the RM4 CodE function must be set to NMEA.
