  • Page 2 Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.

  • Page 3: About This Guide

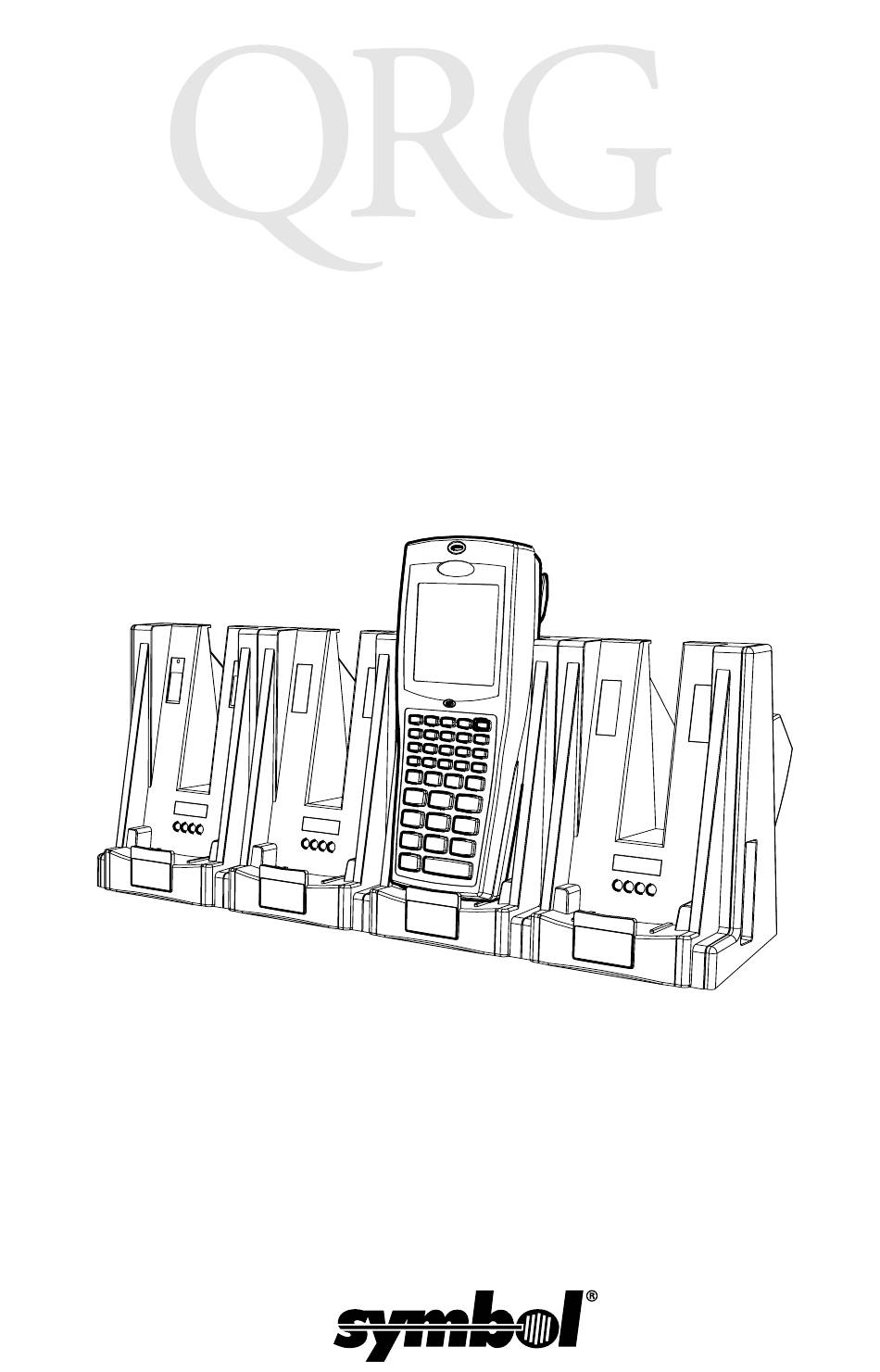

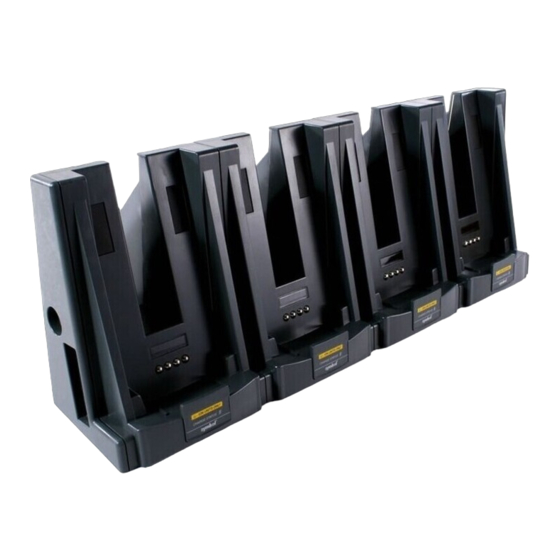

    Q u i c k R e f e r e n c e Introduction Symbol Technologies' CRD6800 Lithium-Ion Cradle provides Lithium-Ion battery charging capabilities for up to four Series 68XX terminals. About This Guide This guide provides operation and installation information for the operator and system administrator.

  • Page 4: Parts Of The Cradle

    5. DC power port - connects the power supply to the cradle Connecting Power Note: Use only Symbol-approved power supply p/n 50- 14001-005 output rated 15Vdc and minimum 2.5A. The power supply is certified to EN60950 with SELV out- puts.
  • Page 5 Q u i c k R e f e r e n c e Hinweis: Benutzen Sie nur eine Symbol Technologies genehmigt Stromversorgung p/n 50-14001-005 in den Ausgabe: 15Vdc und minimum 2.5A. Die Stromversorgung ist bescheinigt nach EN60950 mit SELV Ausgaben 1.
  • Page 6 C R D 6 8 0 0 L i t h i u m - I o n C r a d l e To insert the terminal in the cradle: 1. Fit the bottom of the 68XX into the bottom of the cradle, en- suring the hand strap at the base of the battery falls away from the charging contacts.
  • Page 7 Q u i c k R e f e r e n c e Recharging the Battery in the 68XX Note: Fully charge the battery before using the terminal. After placing the terminal in the cradle, put the terminal in SUSPEND mode with power management enabled. Ensure that the terminal is awakened from SUSPEND infrequently if at all during charging, and that if awak- ened, the terminal automatically returns to SUSPEND...

  • Page 8: Led Indicator

    C R D 6 8 0 0 L i t h i u m - I o n C r a d l e LED Indicator LED Indicator Cradle DARK No battery or faulty battery in cradle Slowly flashing GREEN Cradle is charging a very weak bat- (On for one second, tery...

  • Page 9: Troubleshooting

    Q u i c k R e f e r e n c e Troubleshooting Symptom Possible Cause Action Indicators do not momen- Cradle is not receiv- Make sure AC and DC pow- tarily light when the cradle ing power. er cables are securely con- is powered up.

  • Page 10: Ergonomic Recommendations

    • Provide a suitable working environment • Improve work procedures. Regulatory Information All Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol Technologies, could void the user's authority to operate the equipment.
  • Page 11 This warranty is provided to the original owner only and is not transferable to any third party. It shall not apply to any product (i) which has been repaired or altered unless done or approved by Symbol, (ii) which has not been maintained in accordance with any operating or handling instructions...
  • Page 12 Distributor Operations +44 118 945 7360 Customer support is available 24 hours a day, 7 days a week. For the latest version of this guide go to:http://www.symbol.com/manuals. 72-54434-01 Revision A — February 2002 Symbol Technologies, Inc. One Symbol Plaza Holtsville, NY 11742-1300...
