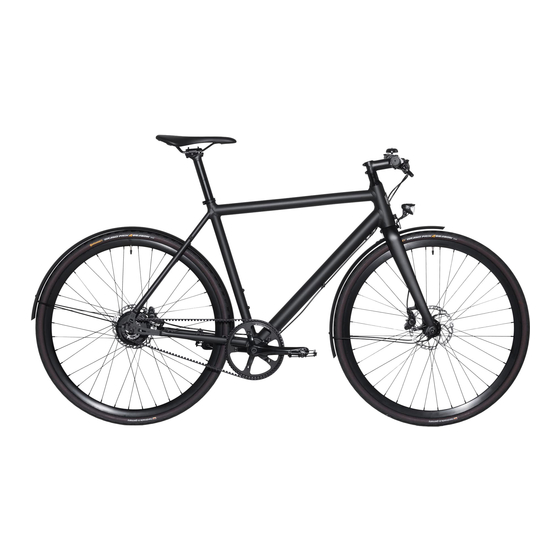

- Page 1 Ampler Manual Curt Model year 2022 Original Operating Instructions...
-
Page 2: Table Of Contents
Accessories......................... 4.3.1 Ampler Bike Pass . - Page 3 ......................... . . 10.2 Install and use the Ampler Bike App on a smartphone .
- Page 4 Service....................... 18.2 Ampler Support Portal .
-
Page 5: About This Instruction Manual
These instructions are also available at the Ampler Support Portal as PDFs as well as being available in other languages. These instructions are also available in the Ampler Support Portal as PDFs as well as in other languages. -
Page 6: Symbols
2022 1.3.4 Other relevant documents Pedelec component instructions are also available in PDF format on the Ampler Support Portal. To have the instructions available in digital form (e.g. on a smartphone) at any time, it can be downloaded there. Format... -
Page 7: Safety Instructions
Use only the charger intended for the corresponding Only use approved original spare parts for replacement, Ampler bike when charging the battery in the Pedelec with exchange, maintenance or repair. the charging connection. Replace, service or repair of components only as specified ... - Page 8 Only install and use accessories in accordance with the Use the Ampler Bike App on your smartphone only when it is respective manufacturer's instructions. mounted in a stable holder. Do not change settings in the Ampler Bike App while riding.
- Page 9 Unsuitable battery chargers (e.g. ones with too high a voltage) Get medical help. will damage the battery. The battery may self-ignite and explode. Only use the original Ampler charger supplied with the Pedelec. Tools with sharp edges and cutting edges If necessary, label the charger so that it cannot be confused ...
- Page 10 If water enters the charger, a short circuit may occur, which can lead to an electric shock. Store the charger in a cool and dry place. Protect the charger from rain, snow, moisture and humidity. Do not immerse the charger in water. Ampler – Curt Safety instructions...
-
Page 11: Delivery
Protect packaging from moisture. Transport and store packaging this way up. Fragile Packaged Items Contents of the packaging are fragile. Handle With Care. Do not throw or overturn. Recyclable Dispose of packaging according to local regulations. Delivery Ampler – Curt... -
Page 12: Contents Of Delivery
Contents of delivery Contents Curt belt / Curt gears Pedelec, pre-assembled Accessories kit y Pedals y Battery charger y Reflectors y Bell y Operating Instructions y Bicycle Pass ("Bike Pass") Accessories Bicycle lock with holder and keys... -
Page 13: Unpacking The Pedelec
The video explains the necessary steps for unpacking in detail and contains further tips 1. Check the shipping carton for external damage. y In case of noticeable damage, document the damage and contact Ampler Customer Service. 2. Place the shipping carton on a flat, stable surface. -
Page 14: Ampler Pedelec
Ampler Pedelec The Pedelec consists of the bicycle, the charger and optional accessories. The Ampler Bike App can also be used with the Pedelec. Bicycle - structure and components Juna / Axel Top tube with 13 Charging port 19 Bell... -
Page 15: Frame Number
4.1.1 Frame number The frame number is on the left side dropout/chainstay and in the Ampler Bike Pass. The frame number is required, for example, for making enquiries with Ampler customer service and when ordering spare parts. 4.1.2 Type label The type label is located on the underside of the down tube, next to the bottom bracket. -
Page 16: Brakes
The front and rear reflector must be attached during assembly. The front and rear lights are powered by the battery. Front light Front reflector Rear light Rear reflector Even if the battery power is low and the electric drive shuts off, the lights remain on for sufficient time to bring you home. Ampler – Curt Ampler Pedelec... -
Page 17: Electric Drive
On particularly cold days, this can lead to a shorter range. Battery charger The charger is specced in accordance with the electrical system’s requirements. Mains plug Power cord Charging plug Charging cable Battery charger Charging LED Ampler Pedelec Ampler – Curt... -
Page 18: Accessories
The Ampler trailer adapter is available as an optional extra and is compatible with most bike trailers from Thule, Burley and Croozer. The trailer adapter is used to adapt the Ampler M12 thread of the axle on the rear wheel to a 10 mm mounting point. -
Page 19: Assembly
The Pedelec is delivered mostly pre-assembled. Some components still need to be attached and adjusted after unpacking. Assembly A video for this is available on the Ampler Support Portal. The video explains the necessary assembly steps in detail and contains further tips. -
Page 20: Handlebar Alignment
4. Move the wheel J If there is noticeable "play" on the headset during movement: y Loosen the stem clamping screws. y Tighten the headset cap screw a little tighter. y Tighten the stem clamping screws again. Ampler – Curt Assembly... -
Page 21: Mounting The Pedals
Resistance should only be felt at the end stop. y You can also use a 15 mm spanner (not included; available from specialist shops and tool stores) to tighten the pedals via the spanner flats between pedal thread and pedal body. Assembly Ampler – Curt... -
Page 22: Reflectors
Reflectors Curt requires one white reflector on the front light and a rearward facing red reflector on the seatpost. The wheels will need to be equipped with two spoke reflectors each. Fitting the accessories 5.4.1 Trailer adapter (optional) Observe and adhere to the maximum permissible load of the trailer according to the manufacturer's instructions. -
Page 23: Before The First Ride
The position of the minimum required insertion depth of the seatpost is 25 cm below the centre of the saddle rails or 10 cm above the lower end of the seatpost. Marking for min. required insertion depth Before the first ride Ampler – Curt... -
Page 24: Adjusting The Lighting System (Light Beam Of The Front Light)
The Pedelec's light beam is preset at the factory for proper illumination of the road. Two TX20 keys are required to adjust the front light (not included; available from specialist shops and tool stores). Ampler – Curt Before the first ride... -
Page 25: Basic Features
The power button underneath the display is where all electronic core functions of your Ampler are operated. The core functions and individual settings can also be set through the Ampler Bike App. -
Page 26: Selecting The Assist Mode
1. Trip duration 2. Trip distance 3. Average speed The trip statistics are automatically uploaded once GSM is active. You can find the trip history in the Ampler Bike App. 6.3.2 Selecting the assist mode DANGER Trying to press the power button while riding can cause an impairment of balance ... -
Page 27: Switching The Lights On And Off
2. Release the power button while the icon is displayed. y The lights switches off If you want to ride with lights on but without motor support then turn the lights on and select 0% assist mode. Before the first ride Ampler – Curt... -
Page 28: Charging The Battery With The Charger
As soon as the display shows 100% and the charger LED is green, the battery is fully charged. 4. Unplug the charger from the mains socket. 5. Unplug the magnetic charger plug from the charging socket on the left side of the seat tube and close the charging port cover. Ampler – Curt Before the first ride... -
Page 29: Operation: Riding The Pedelec
Lighting system J Check the lighting system’s functionality. J Check reflectors: Securely attached? Clean? Tires J Check the tire tread. J Check the condition of the sidewalls. J Check tire pressure, inflate if necessary. Operation: riding the Pedelec Ampler – Curt... -
Page 30: Personal Protective Equipment
Perform a disc brake “bed-in” procedure prior to your first ride. At the end of the ride 1. Dismount from the Pedelec. 2. Park it, so that it cannot tip over. 3. Switch off the Pedelec at the power button. Ampler – Curt Operation: riding the Pedelec... -
Page 31: Cleaning, Maintenance And Care
Cleaning, maintenance and care Regular cleaning and care of the Pedelec increases the service life of the components. Cleaning, maintenance and care Information and a video on this subject are available on the Ampler Support Portal. Cleaning 8.1.1 After every ride J Clean the Pedelec of excessive dirt after each ride. -
Page 32: Care And Maintenance
2. If the fender is rubbing against the tire, try to readjust the fender stays. 3. Only replace the fenders in consultation with and in accordance to the instructions of the Ampler Customer Service, or have them replaced in a bicycle workshop. -
Page 33: Headset
8.2.3 Headset Adjusting the headset Information and a video on this subject are available on the Ampler Support Portal. Using a torque wrench If necessary, a torque wrench can be used for assembly (not included; available from specialist shops). Switch off the Pedelec. -
Page 34: Belt
Checking the belt tension Information is available on the Ampler Support Portal. Adjust belt and eccentric Belts and eccentrics can only be adjusted with the help of information from Ampler Customer Service. Contact Ampler Customer Service. Changing the belt The belt can be replaced if worn or damaged. -
Page 35: Wheels
Check spokes J Check the wheel spokes. J If the spokes of the wheels are damaged or loose, only have them trued or replaced by Ampler Customer Service or by a bicycle workshop. Check the thru-axle of the front wheel J Check the thru-axle of the front wheel. - Page 36 Changing tires Switch off the Pedelec. Removing the rear wheel A video about this is available on the Ampler Support Portal. The video explains the necessary assembly steps in detail and contains further tips. AT TENTION Damage is caused to the motor cable and drive by wrong disassembly! Make sure that the motor cable is disconnected at the rear wheel.
-
Page 37: Fasteners
J In case of dirt or corroded contacts: Clean the charging port. Do not use metal brushes or similar. Cleaning the charging port J If necessary, clean the charging port by applying soap water and using e.g. an old toothbrush. Cleaning, maintenance and care Ampler – Curt... -
Page 38: Troubleshooting Faults And Errors
Pedelec will not switch on. y Battery fully discharged. J Charge the battery. y Display shows lock, J Connect to Ampler Bike App and button lock is on. unlock bike. y Power button does not respond to J Contact Ampler Customer Service. -
Page 39: Restarting The Firmware
Restarting the firmware A firmware restart resets the Pedelec's settings and restarts the Pedelec's electrical system support. It can be triggered through the power button or through the Ampler Bike App. This can help to solve the following issues: y Minor faults or deviations in the behaviour of the Pedelec... -
Page 40: Ampler Bike App
10 Ampler Bike App The Ampler Bike App is not mandatory for using the Pedelec. J Find information on where to download the Ampler Bike App and detailed guides on how to use the app in the Ampler Support Portal. -
Page 41: Install And Use The Ampler Bike App On A Smartphone
A factory calibration can only be performed after the Ampler Customer Service enables the possibility through the Ampler Bike App remotely. 1. When instructed by Ampler Customer Service, open the settings menu in the Ampler Bike App and select the menu item "Factory Calibration". -
Page 42: Inspection And Maintenance
12 Repair Repairs to the Pedelec can only be carried out by a bicycle workshop or by Ampler Bikes and our Service Partners, depending on the particular case. Ampler Customer Service always decides who can carry out the repair in each individual case. -
Page 43: Storage
J Do not dispose of the battery and charger in household waste. Dispose of the battery and charger in accordance with local regulations for recycling electrical equipment. J Dispose of Pedelec components according to locally applicable regulations. Storage Ampler – Curt... -
Page 44: Technical Specifications
336 Wh y Charging time approx. 2.5 h approx. 2.5 h y Range (depending on assist mode approx. 70 km approx. 70 km and riding style) Drive emissions y Noise levels <70 dB <70 dB Ampler – Curt Technical specifications... -
Page 45: Battery Charger
Trailer load J Pay attention to the max. load capacity of the trailer. Mounting on rear wheel axle 17.4 Accessories: rear carrier Parameters Value Trailer load max. 15 kg Mounting on rear dropouts and rear fender Technical specifications Ampler – Curt... -
Page 46: Further Information
Notes on how to reach the customer service. y Notes on the General Terms and Conditions and Warranty y Notes on exchanging information with other users of an Ampler bike, e.g. on social media. Ampler – Curt Further information... -
Page 47: Ec Declaration Of Conformity
Declares that the machinery described Product: Electrically power assisted cycle (EPAC) Trade name: Ampler Model: Curt belt 2022 Curt gears 2022 Conforms to the following directives 2014/35/EU LVD Low Voltage Directive 2014/30/EU EMC Electromagnetic Compatibility 2014/53/EU RED Radio Equipment Directive... - Page 48 Ampler Bikes OÜ Telliskivi tn 60/2 Tallinn, 10412 Estonia hello@amplerbikes.com www.amplerbikes.com...
