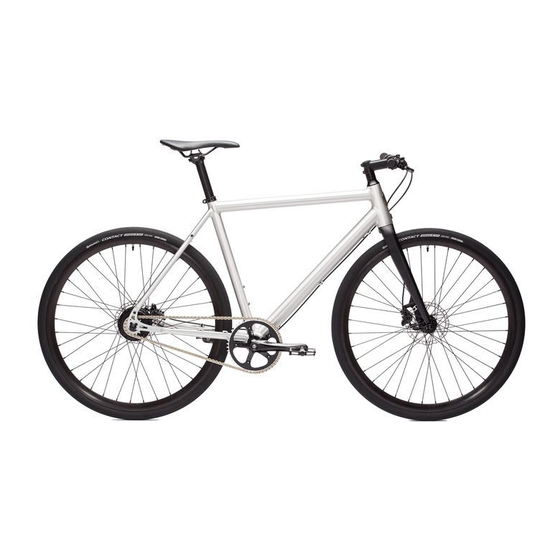

- Page 1 Ampler Manual Curt | Stout | Stellar 2019-2021...
-
Page 2: Table Of Contents
Table of Contents What’s in the box? Finding the frame number Setup Using the power button Ampler Bikes App Maintenance instructions Electric system support Charger safety instructions Installing the trailer adapter Further information... -
Page 3: What's In The Box
You will find the frame number in your Bike Passport as well as on the right side of the bike at the rear dropout. We use it to match our data when you send us an enquiry. We always need it when you have questions about your Ampler bike or when ordering spare parts. -
Page 4: Setup
Setup You need • 4 mm hex key • 6 mm hex key • Pedals Adjust the handlebar 1. Loosen the two stem clamping screws on the side with the 4 mm hex key. 2. Now straighten the handlebars. Do not tighten the bolts yet. 3. - Page 5 Setup Attach the pedals 1. The pedals are marked R (right) and L (left). This refers to the direction of travel. The R pedal goes on the side of the chain and the L pedal on the side where the chain is not. 2.
- Page 6 Setup Final check before your first ride The bike has made a long journey before reaching you, double-check the following things: 1. Check the wheels. Spin the wheels and see if they run freely. 2. Check the tyres pressure and make sure the tyres are full before your first ride.
-
Page 7: Using The Power Button
Once the LED on the charger turns from red to green it has been fully charged. It takes about 2.5 hours from empty to full. Ampler charger will automatically stop charging when the battery is full. There is no risk of overcharging the battery when you forget to unplug it. - Page 8 To turn the lights ON and OFF, hold the power button for 1–2 seconds. Turning the lights on and off You can also control the lights from your Ampler mobile app. The bike will remember the last setting, so the lights will be ON when you leave them on next time you power the bike.
-
Page 9: Ampler Bikes App
Download the app, stay close to your bike, switch on the Bluetooth, pair your smartphone with your bike and log in. The Ampler smart- phone application lets you fully customise your riding experience with the Ampler e-bike. Here’s some of the examples you can do: To connect with the app 1. -
Page 10: Maintenance Instructions
The first important check-up should be done in a bicycle repair shop after 500 kilometres. We then recommend having your Ampler e-bike checked thoroughly in a bicycle workshop every 3,000 kilometres or at a minimum once a year. Any bicycle repair shop can carry out such an... - Page 11 Maintenance instructions Check the chain or belt Check the chain tension – the links can stretch after a while. You can check this with a chain tester or ask your local bike shop. • To check the belt tension, download the Carbon Drive app from the manufacturer Gates and follow the instructions in it.
- Page 12 0° C. The charger should ideally be stored in your living area. • It is advisable to give your Ampler e-bike some time to warm up after a ride in the cold before charging the battery.
-
Page 13: Electric System Support
1. Hold down the power button for 10 seconds. This will reset and turn off your bike. 2. Turn on the bike again from the power button. Ampler bikes are pedelecs and they have sensors regulating the Torque sensor calibration motor, measuring the speed of pedalling and your own input power. - Page 14 Turn the bike on again and you are ready to use your Ampler! Here is how you check, if you need a firmware update and how to do Firmware update Every Ampler has a motor controller –...
- Page 15 Electric system support Step 1 - Connecting Open the Ampler app and connect the app with your bike. Step 2 - Firmware Check Tap on the menu (three stripes in the left corner of the screen), select “Vehicle” and then open your vehicle view by tapping on the picture of your bike.
-
Page 16: Charger Safety Instructions
The charger is designed for indoor use only. Do not expose it to rain, snow or expose the device to elevated temperatures. Only use the original Ampler charger designated for your Ampler e-bike. Do not use this charger for other batteries. Also, do not use other battery chargers for your Ampler e-bike. -
Page 17: Installing The Trailer Adapter
Installing the trailer adapter Our Ampler trailer adapter is compatible with most Thule, Burley and Croozer trailers. It adapts our M12 thread to an M10. 1. Remove the nut from the left side of the rear drop-out. Do not remove the black washer from the rear dropout - keep it on the axle. -
Page 18: Further Information
Further information support portal has a lot more information for you. Here you can learn how to care for your Ampler, as well as tips on operation and troubleshooting. If you want to talk with other Ampler cyclists, join our Facebook...
