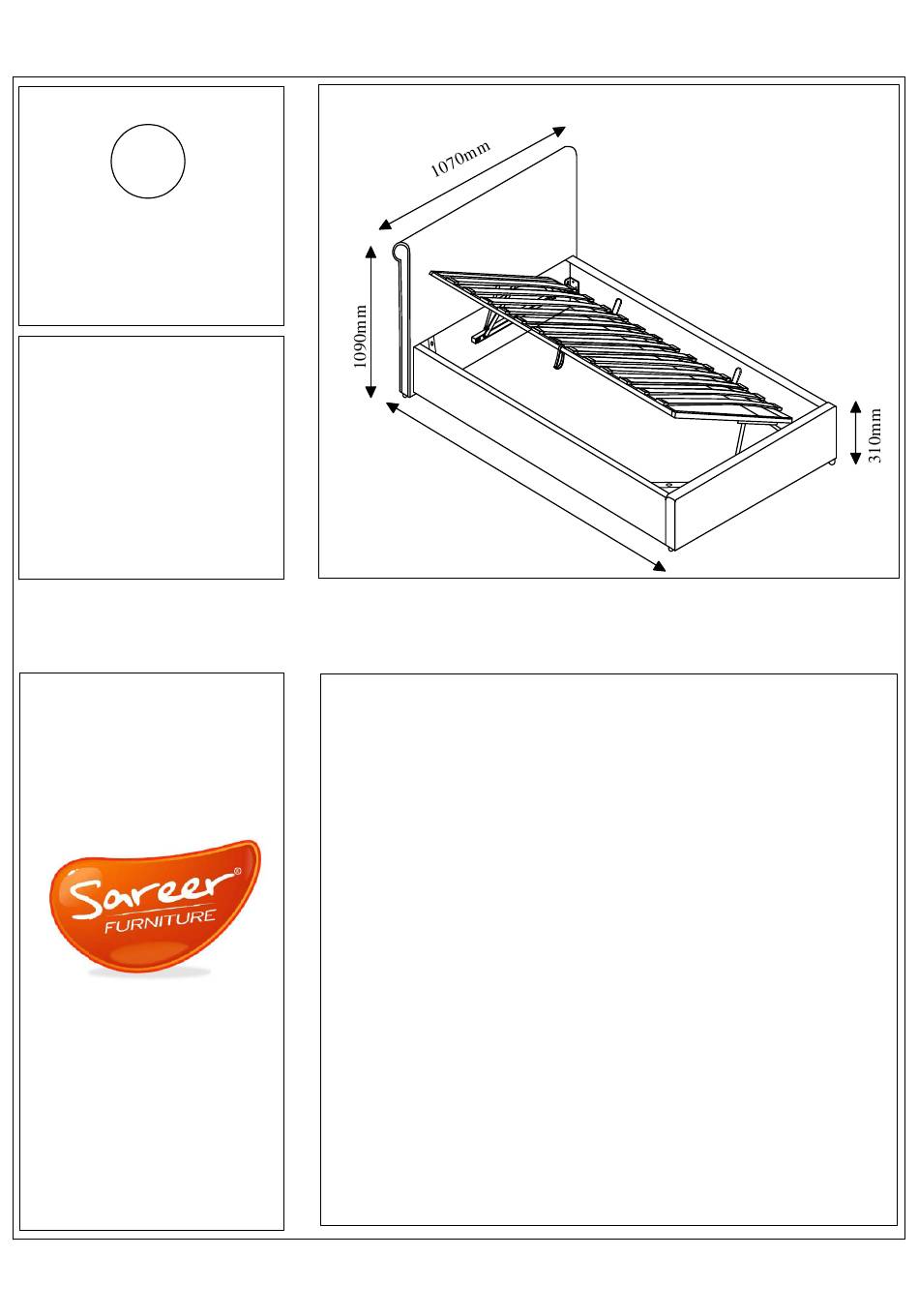

Rome Side 3' Bed
BEFORE STARTING...
■
Read the assembly instructions carefully before
beginning assembly.
■
Check and ensure that you have all parts and fittings
for complete assembly.
■
Choose a clean, level, spacious assembly area.
Hard surfaces may damage the product.
■
The packaging and contents can be a choking
hazard, therefore keep out of reach of small children
at all times.
■
Do not over tighten the bolts as this may damage
the thread.
2170mm
①
Advertisement
Related Manuals for Sareer Rome Side 3' Bed
Summary of Contents for Sareer Rome Side 3' Bed
- Page 1 Approximate Assembly Time Two persons are recommended to assemble this product 2170mm Rome Side 3' Bed BEFORE STARTING... ■ Read the assembly instructions carefully before beginning assembly. ■ Check and ensure that you have all parts and fittings for complete assembly.
- Page 2 PART ② ② ③ ① ⑥ ⑦ ④ ⑤ ⑩ ⑨ ⑧ ⑭ ⑬ ⑫ ⑪ Before starting assembly, ensure that you have received all parts listed. * Packed within the back of the headboard. Box 1 Box 2 Description Description Part Part...
- Page 3 ③ HARDWARE Part Diagram Description x 15mm Bolt x 45mm Bolt x 20mm Bolt x 60mm Bolt x 25mm Bolt M8 Washer Zinc Nut Adjustable Feet Base Lift Strap x 60mm Bolt Plastic Cap M6 Allen Key M8 Allen Key Spanner Corner Bracket Corner Bracket...
- Page 4 ④ H x 4pcs STEP 1 Fully tighten the feet into position on the underside of the headboard and footboard STEP 2 E x 8pcs...
- Page 5 ⑤ OPTION A STEP 3 LEFT HAND OPENING A x 8pcs F x 4pcs B x 4pcs A x 8pcs STEP 3 OPTION B F x 4pcs RIGHT HAND OPENING B x 4pcs...
- Page 6 ⑥ B x 2pcs F x 4pcs STEP 4 G x 2pcs G x 4pcs B x 2pcs STEP 5 x 1pcs J x 2pcs F x 8pcs...
- Page 7 ⑦ P x 4pcs C x 4pcs STEP 6 ATTACH THE EVA PAD TO THE UNDERSIDE OF THE METAL TUBE STEP 7 ⑬...
- Page 8 ⑧ STEP 8 G x 4pcs...
- Page 9 ⑨ STEP 9 D x 8pcs OPTION A F x 8pcs LEFT HAND OPENING ① STEP 9 D x 8pcs OPTION B RIGHT HAND OPENING F x 8pcs ①...
- Page 10 ⑩ OPTION A STEP 10 C x 6pcs LEFT HAND OPENING STEP 10 C x 6pcs OPTION B RIGHT HAND OPENING...
- Page 11 ⑪ K x 26pcs STEP 11 FIRST DETAIL 1 SECOND DETAIL 2 COMPLETED !
- Page 12 ⑫ ■ Retightening of all fixing periodically is recommended. ■ When moving your fully assembled bed you must first remove the mattress and lift the frame into position, take care when lifting and always have two people handling the bed. PLEASE DO NOT DRAG THE BED as this will cause damage to the rail.
