Sareer Stella Assembly Instructions

5' bed

mins

Approximate

Assembly Time

Two persons are

recommended to

assemble this product

1750mm

2360mm

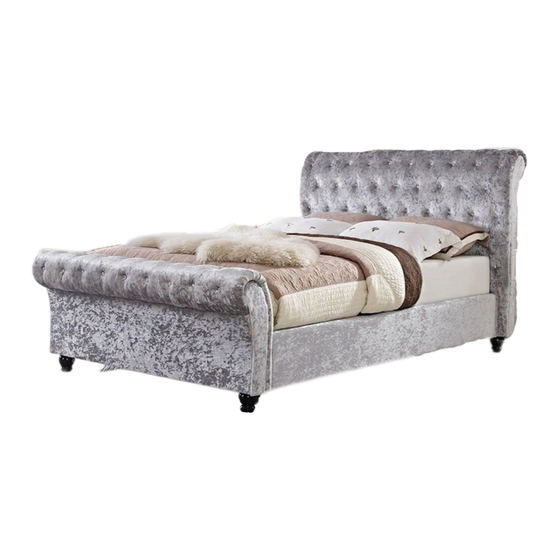

Stella 5' Bed

BEFORE STARTING...

Read the assembly instructions carefully before

beginning assembly.

Check and ensure that you have all parts and fittings

for complete assembly.

Choose a clean, level, spacious assembly area.

Hard surfaces may damage the product.

The packaging and contents can be a choking

hazard, therefore keep out of reach of small chidren

at all times.

Do not over tighten the bolts as this may damage

the thread.

Table of Contents

Need help?

Do you have a question about the Stella and is the answer not in the manual?

Page 1 Approximate Assembly Time Two persons are recommended to 2360mm assemble this product Stella 5' Bed BEFORE STARTING... Read the assembly instructions carefully before beginning assembly. Check and ensure that you have all parts and fittings for complete assembly. Choose a clean, level, spacious assembly area.
Page 2 HARDWARE M8 x 25mm M8 x 40mm Washer M8 x 50mm x 12pcs x 4pcs x 18pcs x 3pcs Allen Key Hex Nut Spanner x 1pc x 7pcs x 1pc PART...
Page 3 Screw in the wooden legs to headend and footend. Attach the siderails and centre rail to the bedend.
Page 4 Attach across rail and support legs to the base. Align the pins on the Holders to the holes along the Centre Rail and the Siderails. Gently tap them into the holes using hand palm.
Page 5 Retightening of all fixing periodically is recommended. When moving your fully assembled bed you must first remove the mattress and lift the frame into position, take care when lifting and always have two people handling the bed. PLEASE DO NOT DRAG THE BED as this will cause damage to the rail.
