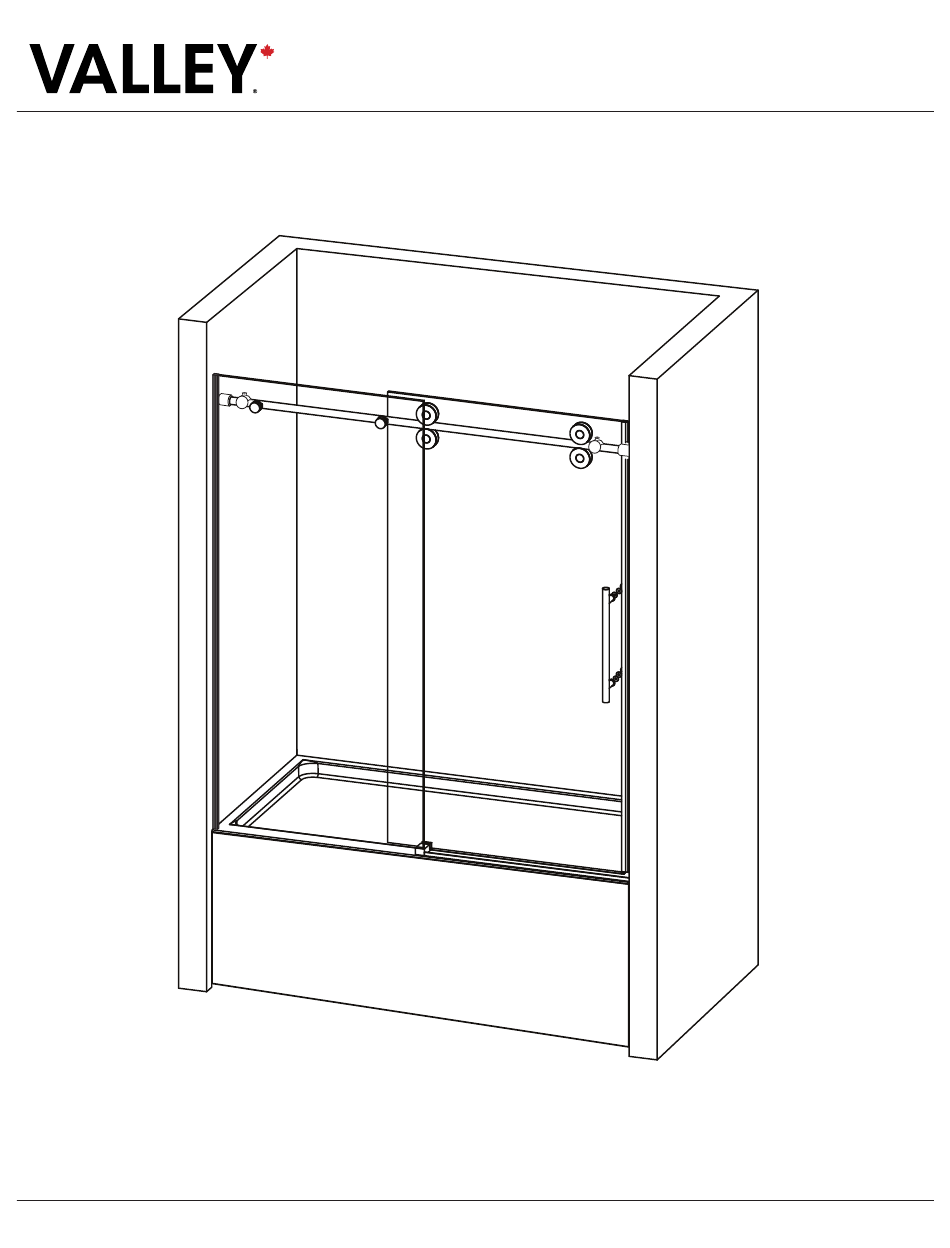

- Page 1 TD10A BATHUB DOOR INSTALLATION GUIDE website: www.valleyacrylic.com • E-mail: customerservice@valleyacrylic.ca • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
-
Page 2: Before You Begin
TD10A BATHUB DOOR INSTALLATION GUIDE Thank you for choosing Valley Acrylic Products. This installation manual provides general information on the installation of our products. BEFORE YOU BEGIN • Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your packing slip. - Page 3 TD10A BATHUB DOOR INSTALLATION GUIDE IMPORTANT INFORMATION PANEL DOOR Guide Rail Brackets must be firmly attached to the wall. Installation into a stud is strongly recommended. All of the guide rail bracket set screws must be tightened. Thread Lock must be applied to both stopper set screws. Panel-side stopper must be installed into the pre-drilled stopper hole in the upper guide rail.
- Page 4 TD10A BATHUB DOOR INSTALLATION GUIDE IMPORTANT INFORMATION Place the sliding door panel inside the bathtub to simplify following installation procedures. Ensure placing the panel onto a cushioned surface, such as a towel or card board, to prevent damage either to the panel or the bathtub.
- Page 5 TD10A BATHUB DOOR INSTALLATION GUIDE 3.1 - Drill the screw holes on wall. 3.2 - Install the wall profile into place. Tighten the wall anchor on wall. Apply silicone inside the wall profile as shown website: www.valleyacrylic.com • E-mail: customerservice@valleyacrylic.ca • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
- Page 6 TD10A BATHUB DOOR INSTALLATION GUIDE 5.1 Place the fixed panel on the wall profile. 5.2 Make sure the fixed panel is level Guide Block Installation Assembly the Guide Block on the bathtub threshold and adjust into a precise position. Apply silicone to the bottom of the Guide Block.
- Page 7 TD10A BATHUB DOOR INSTALLATION GUIDE Measure the distance from the center of the outside hole of the fixed panel to the tile wall as shown. Running Rail The Running Rail needs to be cut a 1/2” shorter of the overall opening (X) .
- Page 8 TD10A BATHUB DOOR INSTALLATION GUIDE Fasten the running rail to the fixed panel with the glass holders. 10.1 - Mark the rail brackets screw location & position. 10.1 10.2 website: www.valleyacrylic.com • E-mail: customerservice@valleyacrylic.ca • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
- Page 9 TD10A BATHUB DOOR INSTALLATION GUIDE 11.1 Remove the running rail. 11.2 Drill the screw holes. 11.3 Tighten the wall anchor. 11.4 Install wall bracket sleeves on both sides. 11.2 11.3 11.4 Position the stoppers and the wall brackets on the running rail as illustrated.
- Page 10 TD10A BATHUB DOOR INSTALLATION GUIDE Install the running rail into place. Fasten the running rail to the fixed panel with the glass holders. 13.1 13.2 13.3 13.4 Twin Roller Installation Assemble the top Twin Rollers to the sliding panel as shown.
- Page 11 TD10A BATHUB DOOR INSTALLATION GUIDE Install sliding door ensuring that the top rollers are installed 15.1 first. Adjust the top rollers accordingly. Fix the top rollers over the running rail. Ensure that sliding door is placed within the Guide Block.
- Page 12 TD10A BATHUB DOOR INSTALLATION GUIDE Handle Installation. Make sure to have a gasket in either side of the glass door, to make sure the metal is not touching the tempered glass. Clear Anti-splash threshold installation. • Remove the adhesive tape •...
- Page 13 TD10A BATHUB DOOR INSTALLATION GUIDE Apply silicone as shown. Silicone application along the length of the threshold is also suggested. In both cases, it is done from the outside of the bathtub area. PLEASE ALLOW 24 HOURS FOR THE SILICONE TO FULLY CURE BEFORE USING THE BATHTUB.
- Page 14 TD10A BATHUB DOOR INSTALLATION GUIDE Congratulations! You are now a part of the Valley Acrylic family, and an owner of a great product! website: www.valleyacrylic.com • E-mail: customerservice@valleyacrylic.ca • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
