Summary of Contents for Valley VA21998

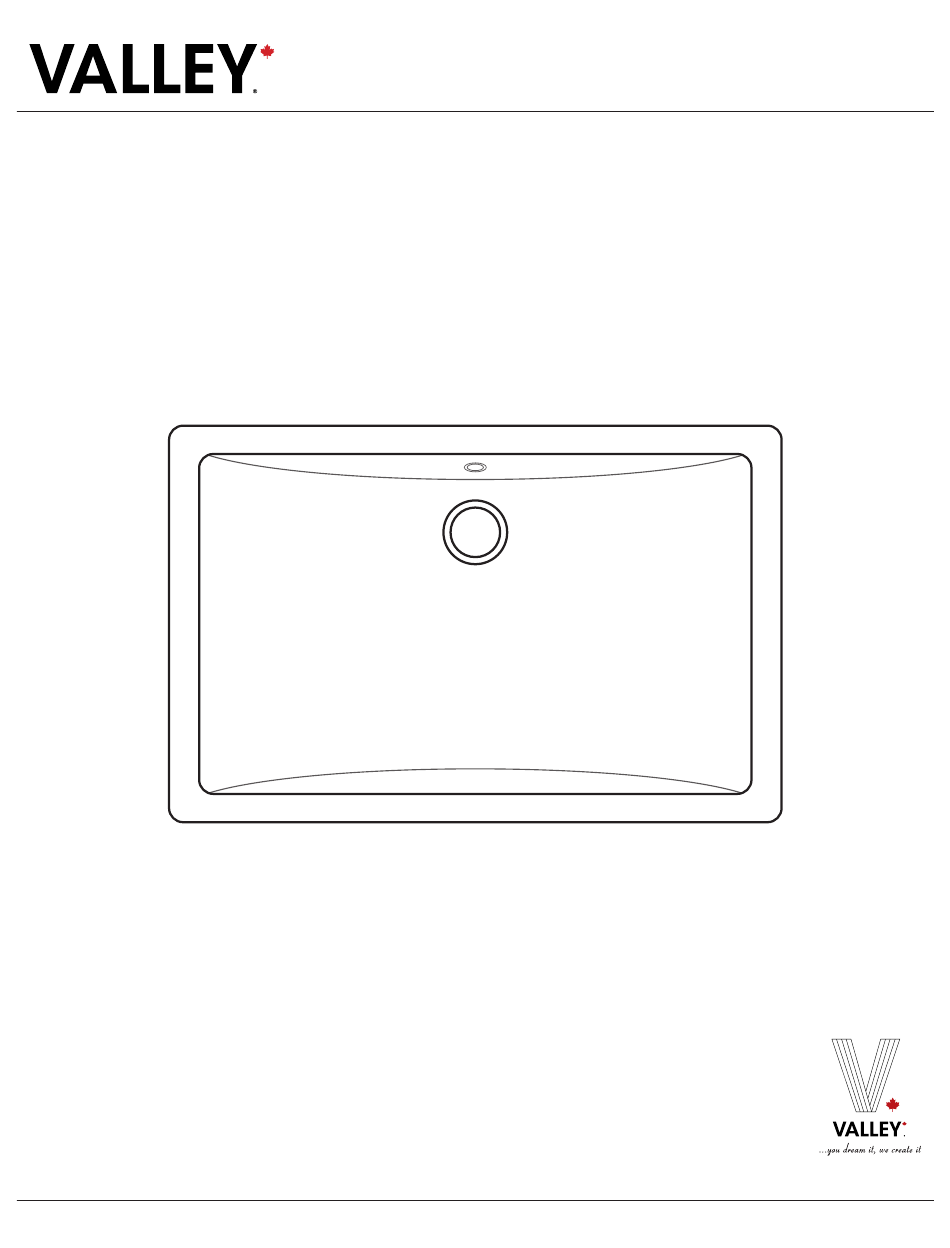

- Page 1 VA21998 BASIN INSTALLATION MANUAL website: www.valleyacrylic.com • E-mail: order@valleyacrylic.ca • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
- Page 2 The warranty does not cover damages or defects in the finish once the unit has been installed. Valley’s responsibility for shipping damages ceases upon delivery of the product in good order to the carrier. All complaints regarding damage due to transport must be made directly to the carrier.
- Page 3 VA21998 BASIN INSTALLATION MANUAL COUNTERTOP 1.5” / 38mm Before installing this basin, verify the basin measurement. COUNTERTOP MOUNTING CLIPS BASIN MOUNTING CLIPS UNDERMOUNT CUTOUT INSTALLATION TYPE ZERO REVEAL The countertop meets the edge of the basin, fitting flush with the basin bowl.
- Page 4 VA21998 BASIN INSTALLATION MANUAL Please check actual template against physical basin Place the template onto the countertop, and make sure unit for most accurate cut! that there is enough distance between the faucet and wall. Check whether there is enough space the space under the basin to install the supply and drain pipes.
- Page 5 VA21998 BASIN INSTALLATION MANUAL INSTALLATION FOR WOOD TYPE SURFACES Using a pencil, locate and mark the mounting clip onto Pre-Drill small pilot holes through the countertop the countertop. Securely screw the basin into the countertop COUNTERTOP 1.5” / 38mm MOUNTING CLIPS BASIN Tighten the clips.
- Page 6 VA21998 BASIN INSTALLATION MANUAL INSTALLATION FOR SOLID TYPE SURFACES - Place wood studs around the basin edges and countertop opening as shown. - Apply a bead of 100% silicone to the wood studs. - Place them into place. SILICONE COUNTERTOP...
- Page 7 • Avoid using any Acidic or Alkaline cleaners to prevent corrosion Congratulations! You are now a part of the Valley Acrylic family, and an owner of a great product! website: www.valleyacrylic.com • E-mail: order@valleyacrylic.ca • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
