Summary of Contents for Valley EASY DRAIN A10135

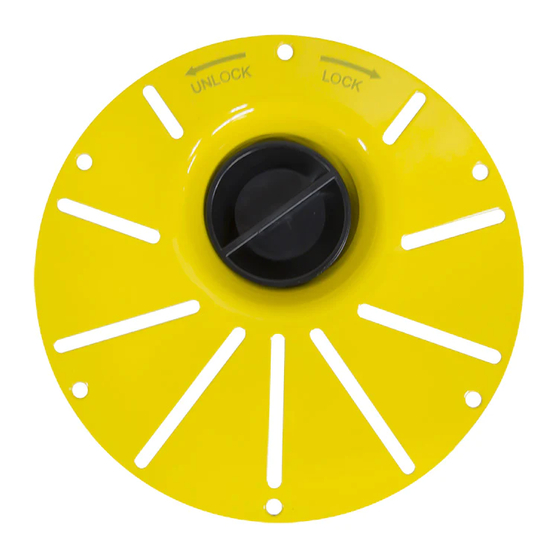

- Page 1 EASY DRAIN (A10135) FREESTANDING BATHTUB DRAIN website: www.valleyacrylic.com • E-mail: purchasing@valleyacrylic.com • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
- Page 2 • Should inspection reveal any damage or defect in the finish, Contact Valley Acrylic Bath Ltd. at 1-877-398-8827 . The warranty does not cover damages or defects in the finish once the unit has been installed.

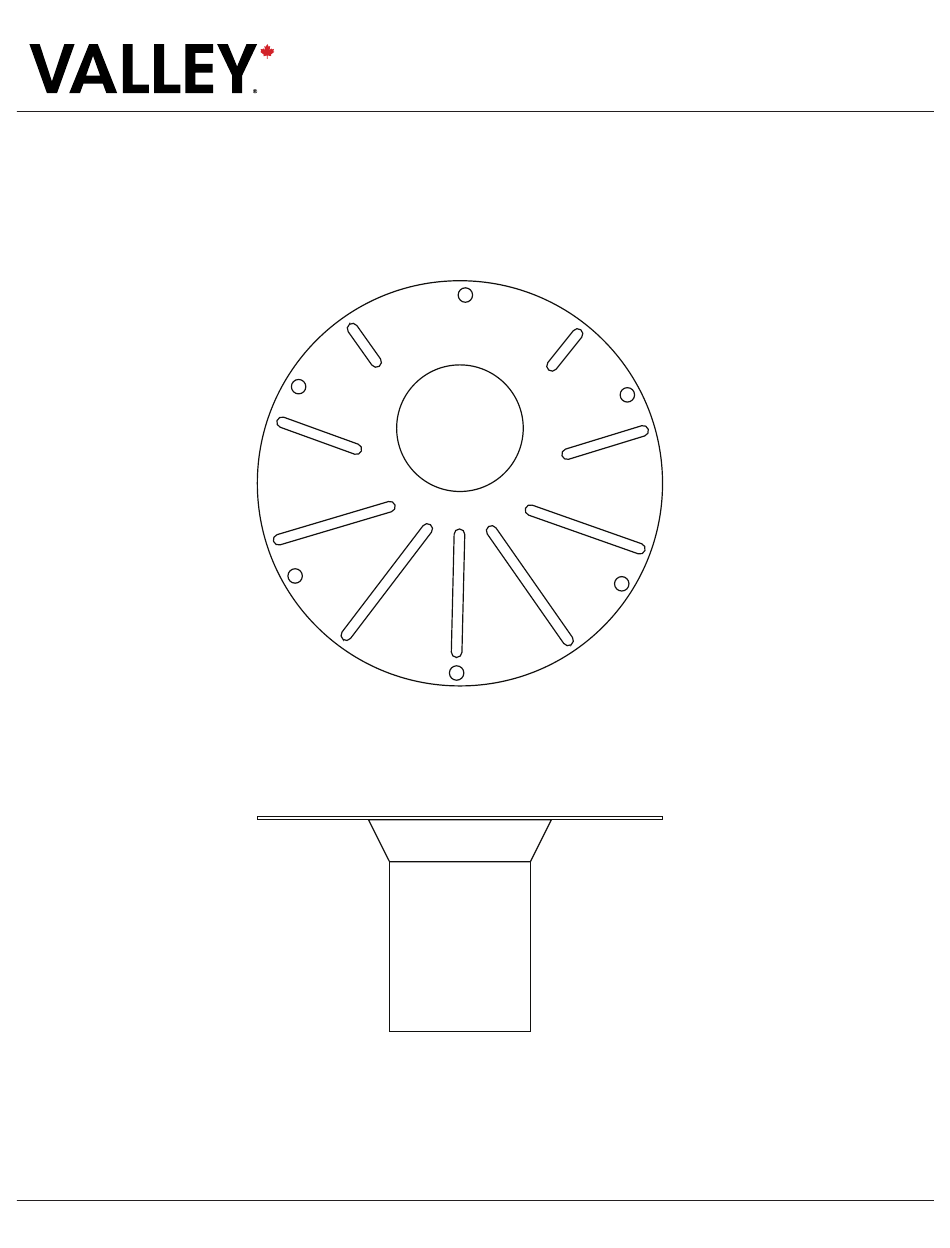

- Page 3 EASY DRAIN (A10135) FREESTANDING BATHTUB DRAIN INSTALLATION GUIDE 1 1/2” male and female adaptors Gasket Easy Drain Threaded brass tailpiece ABS or PVC pipe SPECS Ø 7” / 178mm DISCLAIMER: Measurements may vary ¼” Ø 2.5” / 64mm (Diagram Not to scale) website: www.valleyacrylic.com •...
- Page 4 EASY DRAIN (A10135) FREESTANDING BATHTUB DRAIN EASY DRAIN INSTALLATION GUIDE Mark on the wood sub-floor the cutting location for the drain flange. CUTTING TEMPLATE Cut 6-1/2” (16.5mm) hole into the wood sub-floor for the drain flange. CUTTING TEMPLATE Assamble the drain (EasyDrain) • Insert assembly into floor opening. website: www.valleyacrylic.com •...
- Page 5 EASY DRAIN (A10135) FREESTANDING BATHTUB DRAIN EASY DRAIN INSTALLATION GUIDE Screw the drain (EasyDrain) into place. • Install the Ceramic Tiles. FREESTANDING TUB INSTALLATION - TWO PEOPLE REQUIRED Turn the tub upside down for an easy installation. • Ensure you have the correct Waste & Overflow. Affix the appropiate brass tailpiece to the waste &...
- Page 6 EASY DRAIN (A10135) FREESTANDING BATHTUB DRAIN EASY DRAIN INSTALLATION GUIDE Ensure the measurements between the base of the drain and the P-Trap will accomodate the tailpiece. APPLY LUBRICANT TO THE TAILPIECE Once the tailpiece is been installed on the waste & overlow, position the Tub and tailpiece in-line with the drain. Carefully lower the tub with the installed brass tailpiece as vertical as possible into the red collar in drain assembly.
