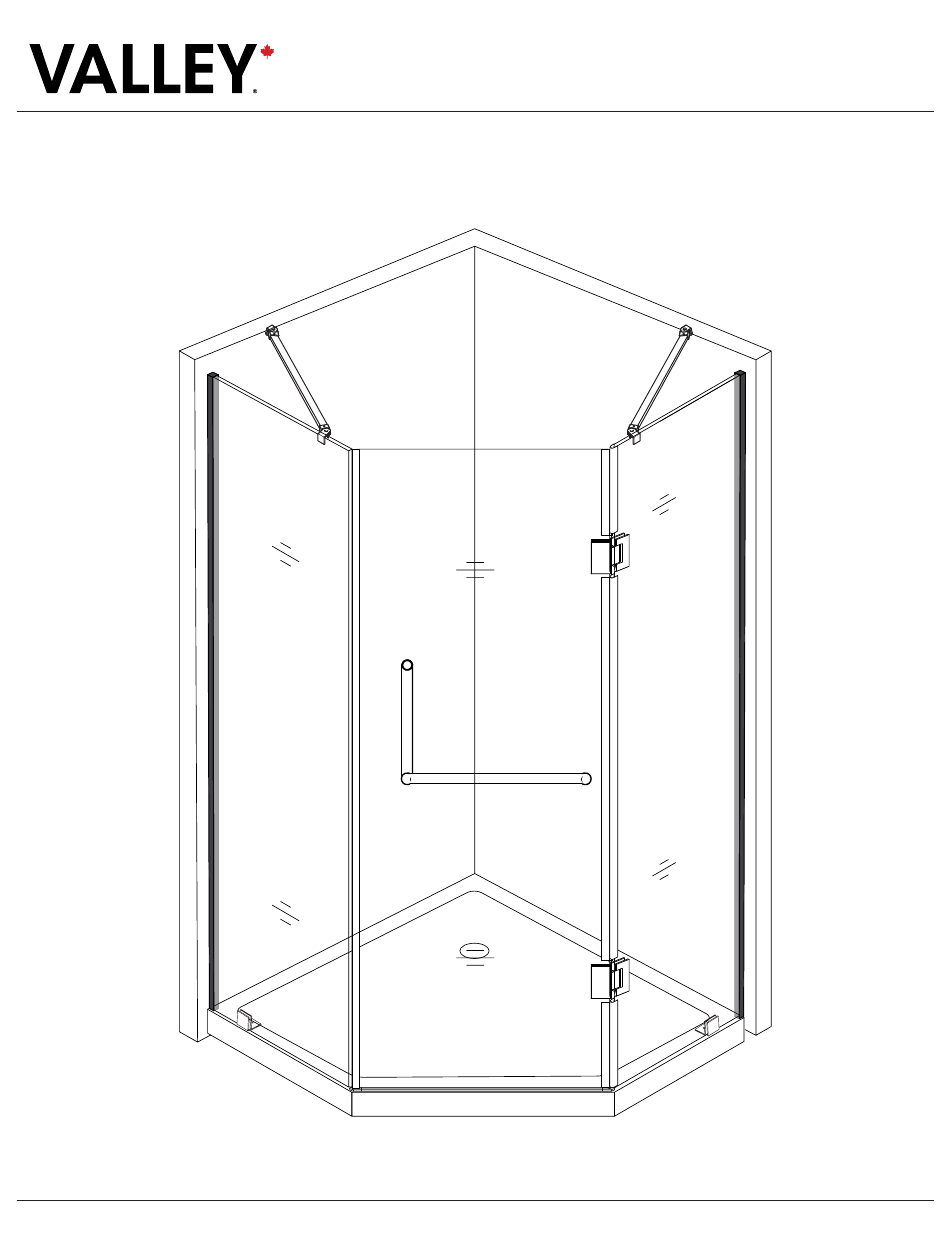

- Page 1 SD10N-90 SHOWER DOOR INSTALLATION GUIDE website: www.valleyacrylic.com • E-mail: purchasing@valleyacrylic.com • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
-
Page 2: Before You Begin
SD10N-90 SHOWER DOOR INSTALLATION GUIDE Thank you for choosing Valley Products. This installation manual provides general information on the installation of our products. BEFORE YOU BEGIN • Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your packing slip. -
Page 3: Parts Breakdown
SD10N-90 SHOWER DOOR INSTALLATION GUIDE PARTS BREAKDOWN DESCRIPTION DESCRIPTION Wall profile Glass Clips (Left & Right) Wall profile Water Retainer Strip Fixed Panel Bottom Gasket (Door Panel) Pull Rod Gasket (Door Panel) Magnetic Strip Hinges Door Panel Fixed Panel Handle Fixed Panel Hinges website: www.valleyacrylic.com •... - Page 4 SD10N-90 SHOWER DOOR INSTALLATION GUIDE Install the glass support onto the hinge fixed panels. Make sure to have a gasket in either side of the glass door, to make sure the metal is not touching the tempered glass. Position the wall profile on threshold, set back 1/4”...
- Page 5 SD10N-90 SHOWER DOOR INSTALLATION GUIDE 3.1 - Drill the screw holes on 3.2 - Tighten the wall anchor 3.3 - Install the wall profile wall. on wall. into place Place the fixed panel on the wall profile. website: www.valleyacrylic.com • E-mail: purchasing@valleyacrylic.com • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
- Page 6 SD10N-90 SHOWER DOOR INSTALLATION GUIDE Thoughly clean the edge of the hinge fixed panel. Install the U-Gasket on the hinge fixed panel. Cut the gasket in 3 pieces accordingly around the hinges PLEASE MAKE SURE TO NOT LEAVE ANY GAP BETWEEN GASKETS AND HINGES Install the hinges into the hinge fixed panel.
- Page 7 SD10N-90 SHOWER DOOR INSTALLATION GUIDE Thoughly clean the edges of the swinging door panel. Install the Magnetic-Gasket and the Anti-water strips (H-shape gasket) onto the swinging door panel. MAGNETIC H-SHAPE GASKET GASKET S-GASKET Install the swinging door panel into place.
- Page 8 SD10N-90 SHOWER DOOR INSTALLATION GUIDE Position the wall profile on threshold, set back 1/4” back from the front of the threshold base. Ensure that the wall profile is level. Mark the screw location & Mark the screw position. 0.25” / 6mm 10.1 - Drill the screw holes on...
- Page 9 SD10N-90 SHOWER DOOR INSTALLATION GUIDE Place the fixed panel on the wall profile. Thoughly clean the edge of the fixed panel. Install the Magnetic-Gasket on the fixed panel. MAGNETIC GASKET website: www.valleyacrylic.com • E-mail: purchasing@valleyacrylic.com • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
- Page 10 SD10N-90 SHOWER DOOR INSTALLATION GUIDE Position the bottom guides on the threshold. Mark the bottom guide screw locations. IMPORTANT INFORMATION Make sure to align the glass panels properly before marking the screw locations. 14.1 - Drill the screw holes on 14.2 - Apply silicone to the...
- Page 11 SD10N-90 SHOWER DOOR INSTALLATION GUIDE Position the structural arm into place. Mark the structural panel support screw locations. Remove the structural arms. Drill the screw holes. 16.A Tighten the wall anchor. Install the structural arms into place. 17.B website: www.valleyacrylic.com • E-mail: purchasing@valleyacrylic.com • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
- Page 12 SD10N-90 SHOWER DOOR INSTALLATION GUIDE Handle Installation. Make sure to have a gasket in either side of the glass door, to make sure the metal is not touching the tempered glass. FIx the hinges to shower base. 19.A 19.1 - Pre-drill the screw hole location 19.2 - Apply silicone to the...
- Page 13 • Avoid polishing powder, cleaning powder and any kind of detergent. • To clean your Valley Shower Door , wash with a wet nonabrasive soapy cloth. Then wipe dry with a soft towel or cloth. We recommend this be done on a regular basis.
- Page 14 SD10N-90 SHOWER DOOR INSTALLATION GUIDE Congratulations! You are now a part of the Valley Acrylic family. www.valleyacrylic.com website: www.valleyacrylic.com • E-mail: purchasing@valleyacrylic.com • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
