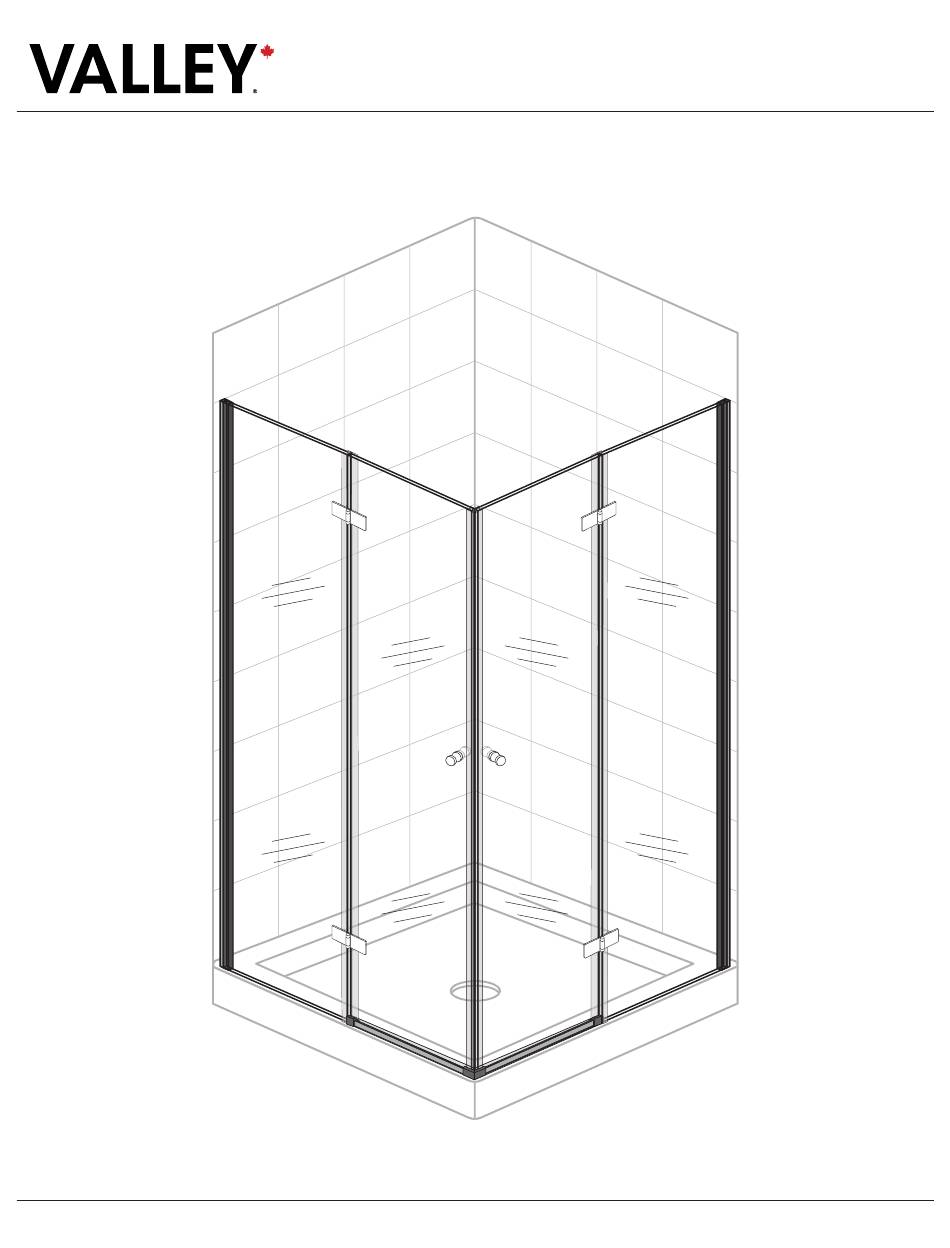

- Page 1 SD016 BI-FOLD SHOWER DOOR INSTALLATION GUIDE website: www.valleyacrylic.com • E-mail: customerservice@valleyacrylic.ca • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
-
Page 2: Before You Begin
SD016 BI-FOLD SHOWER DOOR INSTALLATION GUIDE Thank you for choosing Valley Acrylic Products. This installation manual provides general information on the installation of our products. BEFORE YOU BEGIN • Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your packing slip. - Page 3 SD016 BI-FOLD SHOWER DOOR INSTALLATION GUIDE Position the wall profiles on the threshold. Ensure that the wall profile is level. Mark the screw location & Mark the screw position on both walls as shown. 3/8” / 10mm 3/8” / 10mm...
-
Page 4: Top View
SD016 BI-FOLD SHOWER DOOR INSTALLATION GUIDE Insert the screws to the wall profile With the screwdriver, install the wall profiles into Place the wall profile on place the wall TOP VIEW WALL FIXED PROFILE PANEL Place the fixed panels on the wall profiles. - Page 5 SD016 BI-FOLD SHOWER DOOR INSTALLATION GUIDE 5.1 Pre-drill the screw holes Insert the screws to the wall profile Tighten the screws with a Cover the screw holes IMPORTANT INFORMATION screwdriver with the cover cap Ensure that the fixes glass panel is level.
- Page 6 SD016 BI-FOLD SHOWER DOOR INSTALLATION GUIDE 7.1 Connect the fixed panel and door Tighten the hinges with an Allen key panel with hinges as shown Thoroughly clean the edges of the door panels. Install the Magnetic gaskets onto the door panels, as shown.
- Page 7 SD016 BI-FOLD SHOWER DOOR INSTALLATION GUIDE SIDE VIEW Thoroughly clean the edges of the door panels. Install the bottom gaskets into the door panels, as shown. Install the Anti-splash threshold & cover caps 10.1 Apply silicone to the bottom of the Anti-splash threshold as shown 10.2...
- Page 8 SD016 BI-FOLD SHOWER DOOR INSTALLATION GUIDE Install the Handles 11.1 11.2 Install the wall profile cover caps as shown 12.1 12.2 website: www.valleyacrylic.com • E-mail: customerservice@valleyacrylic.ca • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
- Page 9 SD016 BI-FOLD SHOWER DOOR INSTALLATION GUIDE Apply silicone between the bottom of the fixed panel and the threshold of the base. Silicone application along the length of the threshold is also suggested. In both cases, it is done from the outside of the shower area.
-
Page 10: Care And Maintenance
• Avoid polishing powder, cleaning powder and any kind of detergent. • To clean your Valley Shower Door , wash with a wet nonabrasive soapy cloth. Then wipe dry with a soft towel or cloth. We recommend this be done on a regular basis.
