felton industries DELUXE GRANDSTAND FEL6DG Assembly Instruction

ASSEMBLY INSTRUCTION
Thank You
FOR CHOOSING FELTON INDUSTRIES
6mtr DELUXE GRANDSTAND
[Code No: FEL6DG]
"This product has been
manufactured in Australia to the
highest quality standard,
guaranteeing proven quality,
durability and low maintenance"
1800 22 00 55 1800 05 91 58
sales@felton.net.au www.felton.net.au
Felton Industries Pty Ltd | ABN: 17 130 687 240
Page 1 of 2

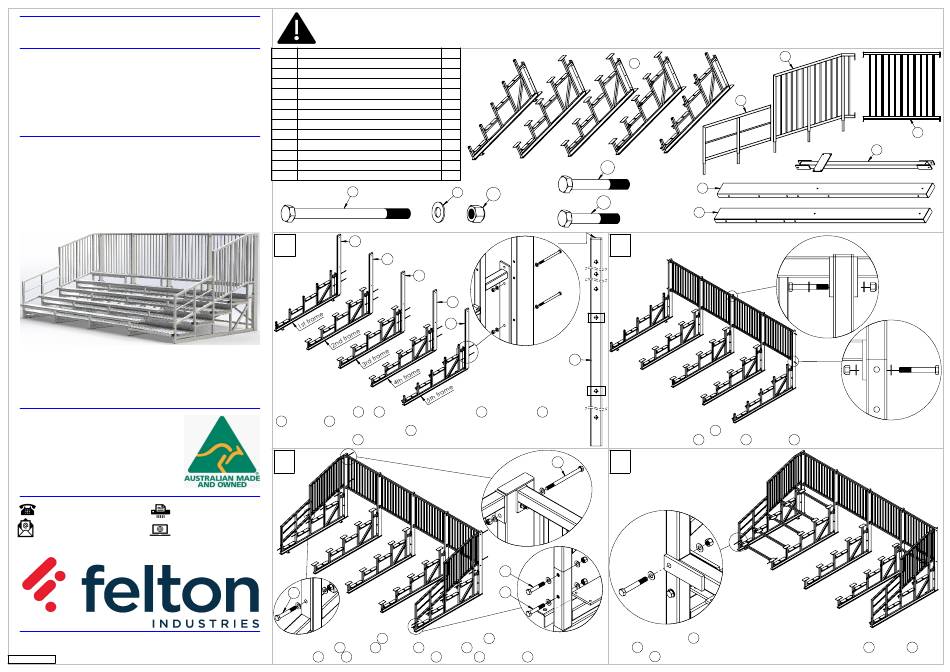

WARNING: This assembly required two or more people as lifting is involved. Please ensure bolts and nuts are only finger-tightened
throughout assembly for flexibility in lining up components. Bolt and nuts should be securely tightened in place when instructed to
do so. Please check all components are included before proceeding with the assembly
ITEM DESCRIPTION Qty
1 FEL6DG_BASE FRAME 5
2 FEL6DG_MAIN UPRIGHT BAR - END 2
3 FEL6DG_MAIN UPRIGHT BAR - MIDDLE 3
4 FEL6DG_BACK RAILING 4
5 FEL6DG_SIDE RAILING - TOP 2
6 FEL6DG_SIDE RAILING - BOTTOM 2
7 FEL6DG_STRUT BAR 6
8 AS-NZS 2465 Bolt - 1/2" x 7" 14
9 AS-FLAT WASHER - 1/2" 128
10 AS-NZS NYLON Nut - 1/2" 64
11 AS-NZS 2465 Bolt - 1/2" x 3.5" 26
12 AS-NZS 2465 Bolt - 1/2" x 3" 14
8
1
2
3
3
3
2
Attach five upright bars 2 & 3 to the back of base frames 1 by using bolts 8 , washers
9 , and nuts 10 as illustrated. Ensure all fasteners are attached at the right positions on
upright bars. Note that end upright bars 2 have 6 holes at the back compared to 4 holes on
the middle upright bars 3
3
11
Attach two top side railings 5 and two bottom side railings 6 onto 1st and 5th base frames
by using bolts 8 , bolts 12 washers 9 , and nuts 10 as illustrated. Then fasten all side
railings 5 and 6 together by using bolts 11 washers 9 , and nuts 10
1
11
9
10
12
2
End cap
2
Attach four back railings 4
together. Use bolts 11 , washers 9 , and nuts 10 to tighten them up as illustrated.
4
8
12
12
Attach five strut bars 7 between 1st and 2nd base frames, then attach the remaining one strut
bar 7 at the top tier position between 4th and 5th base frames. Use bolts 11 washers 9 ,
and nuts 10 to fasten all strut bars to the base frames.
5
6
7
2
3
between upright bars in step 1 to connect all subassemblies
4
