Summary of Contents for Pro World TransPro Plus 1620

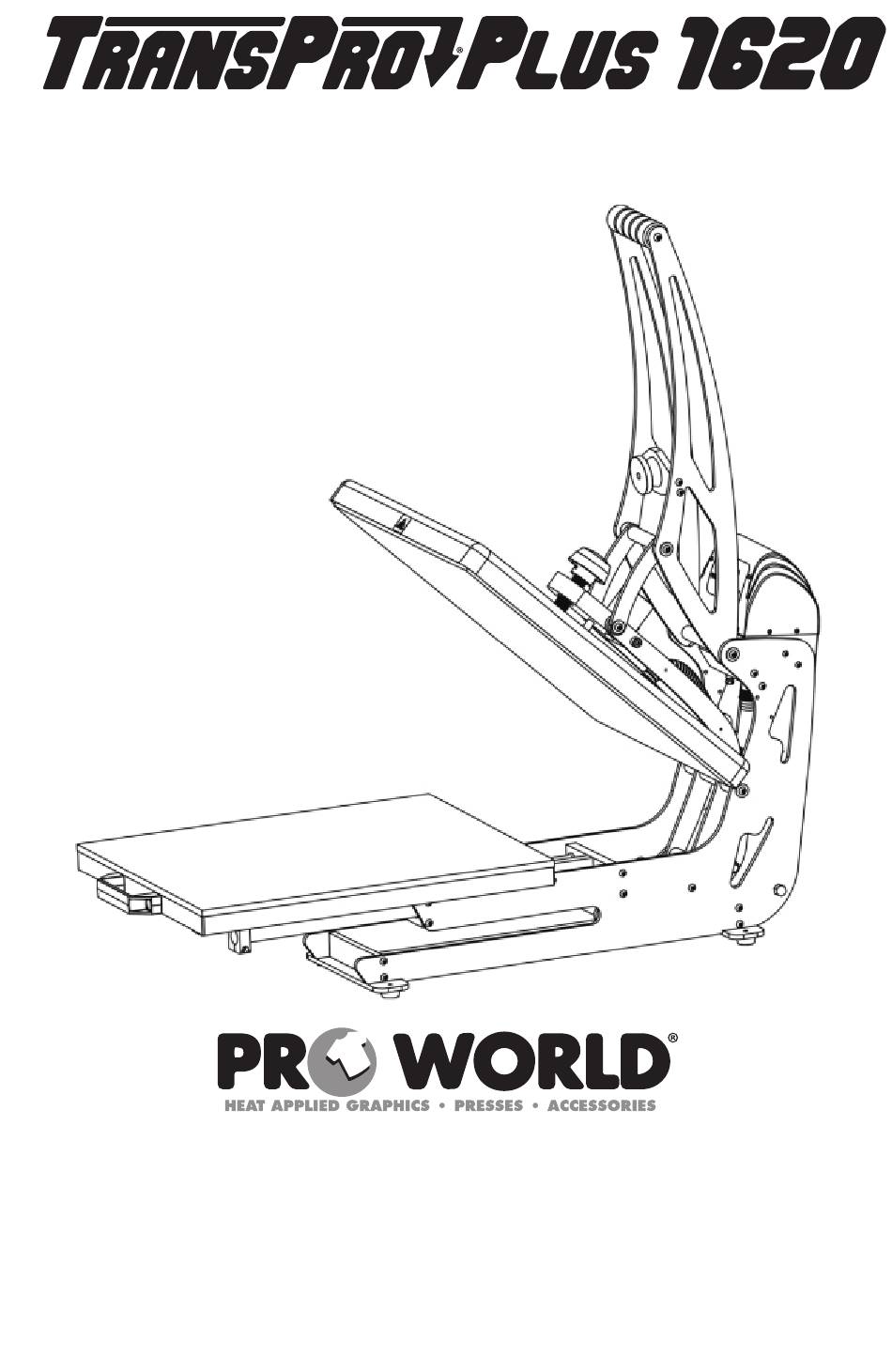

- Page 1 HEAT PRESS USER’S GUIDE www.ProWorldInc.com Pro World Inc. 961 Bethel Ave. Pennsauken, NJ 08110 Toll Free 800-678-8289 Outside U.S. 856-406-1020 Fax 856-406-1025...
- Page 2 OPPERATION INSTRUCTIONS 1. Assemble The Control Box 1.1 Take out control box inside of the 1.3 Connect 5 phase aviation plug and 2 packing carton, then put the control box phase aviation plug,then fasten tightly. on top of the machine in the right position.
- Page 3 2. Connecting the System 3. Change To Auto Mode/Manual Mode 2.1 Connect the power cord into a 3.1 Turn around “Ramspin” system into properly grounded electrical outlet with picture position, machine works under a su cient amperage rating. automatic mode. Once close the machine,electromagnet works to hold 2.2 VOLTAGE: 120 Volt –...
- Page 4 display will illuminate indicating you are in 4. Turn On The System the adjust time mode. 4.1 Switch The System On 6.2 Next, press the (-) button located to the bottom of the Mode Select button to lower the value ,or press the (+) button located to top of the Mode Select button to raise the time value .The time setting range can be set from 0~999.
- Page 5 9. Adjusting Pressure • Lower and lock the heat platen into the press position. This procedure will start the automatic timing process; • The timer will automatically count down and lift the heat platen into the “UP” position when the press cycle is complete; NOTE: Please be aware after time is complete, gas shocks will automatically release the platen into the “UP”...
- Page 6 11.3 Press “set” button to select “ctr” mode, 12.2 Input 68 then press “set” button to press up and down button to set value at 0 enter into second level menu. or 1, 0 for celsius, 1 for Fahrenheit 12.3 Press “set” button to select “Pb” mode. Press up and down button to make tem- 11.4 Press “set”...
- Page 7 13. Switching Between F/C 13.4 Press “set” button 4 seconds to quit. 13.1 Press “set” button for 4 seconds, display shows LCK 13.2 Input 68 then press “set” button to enter into second level menu. 13.3 Press “set” button to select “Pb” mode. Press up and down button to make tem- perature calibration.
-
Page 8: Technical Parameters
Technical Parameters Model: MP354 & MP350-1620 20minutes Heating Up Time（180 ） Heater Size: 16’’ 20’’ (406 508mm) 0~999S Time Range： Pressure Display： Way To Change Lower Platen: “Ramlock” quick change system Auto Open： 29.5 x16.9 x39.3in Machine Size (open size)： Slide-out Lower Platen：... - Page 9 Technical Parameters Cont. Part Name(English) Part No. Qty. 5 phase aviation plug 1800955 (Female) with wires Display overlay 1600549 welded Control box top 1200446 2 phase aviation plug 1800962 !Female"# with wires Circuit breaker 15A 1800160 welded On/off switch 1800346 Machine handle 1200581 Emergency stop button...
- Page 10 Technical Parameters Cont. Machine foot 1200649 Lower platen 1800802 1200051 Lower platen 1800388 Bridle links 1200138 Adjustment knob 1800479 Bridle links 1200218 Silicon pad 1800422 Lower platen holding base 1200230 Silicon pad 1200539 Gas spring 270N 1800054 Platen holding block 1200068 Gas spring 350N 1800055...
- Page 11 Technical Parameters Cont. Ramlock System Part Name(English) Part No. Qty. Ramlock base 1200958 Ramlock locking sheet 1200960 Ramlock locking set(male) 1200961 Ramlock locking screw 1900959 Ramlock handle 1200956 Ramlock locking set(female) 1200957...
-
Page 12: Wiring Schematic
WIRING SCHEMATIC www.proworldinc.com... - Page 13 Warranty Disclaimers Pro World shall not be liable for loss of use of TransPro equipment or other inciden- tal or consequential costs, expenses, or damages incurred by the original purchaser or any other user.
- Page 14 Pro World Inc. 961 Bethel Ave. Pennsauken, NJ 08110 Toll Free 800-678-8289 Outside U.S. 856-406-1020 Fax 856-406-1025...
