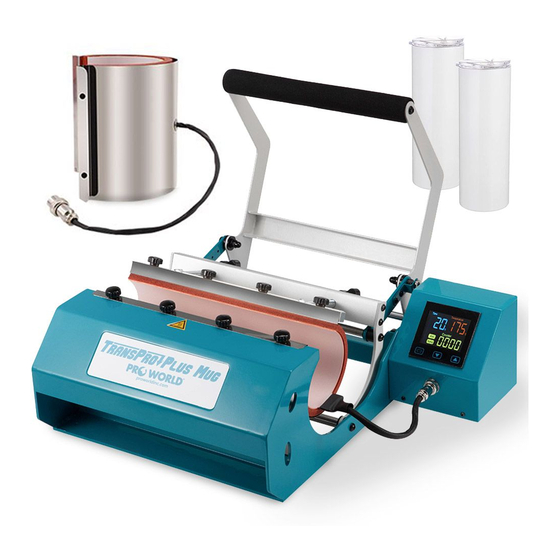

Summary of Contents for Pro World TransPro Plus Mug

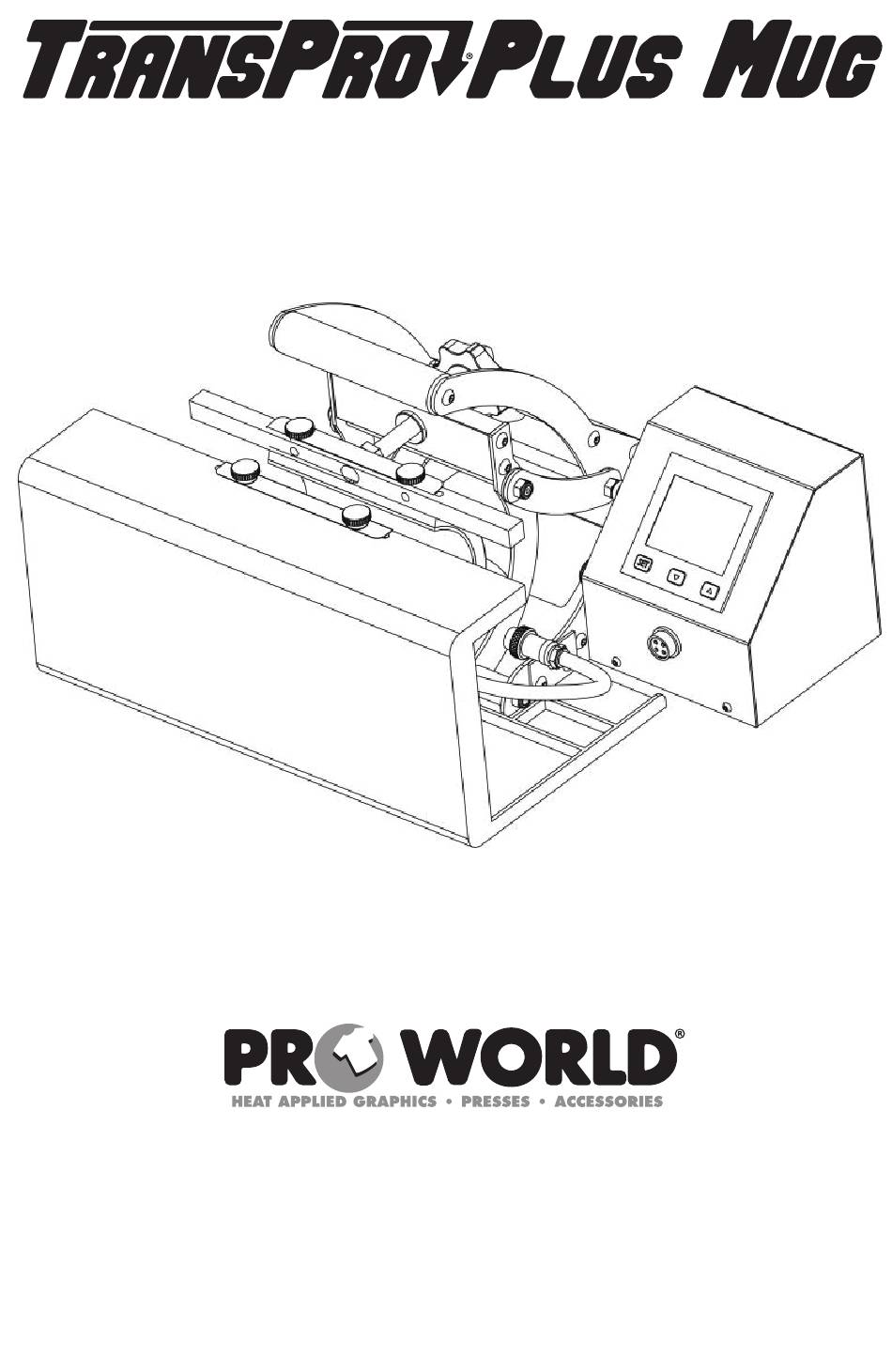

- Page 1 HEAT PRESS USER’S GUIDE www.ProWorldInc.com Pro World Inc. 961 Bethel Ave. Pennsauken, NJ 08110 Toll Free 800-678-8289 Outside U.S. 856-406-1020 Fax 856-406-1025...
- Page 2 OPPERATION INSTRUCTIONS 1. Connecting the System 2. Turn On The System 1.1 Connect the power cord into a 2.1 Switch The System On properly grounded electrical outlet with a su cient amperage rating. 1.2 VOLTAGE: 120 Volt – The GS-601 requires a full 20 amp grounded circuit for 120 volt operation.
- Page 3 • This procedure will start the automatic timing process. • The timer will automatically count down to zero then circuit board will alarm when the press cycle is complete. • The timer will automatically re-set and you are ready to continue with the next application.
- Page 4 NOTE: If temperature on heater is higher 7.3 Press up and down button to set value at 0 or 1, 0 for Celsius, 1 for than circuit board shows, please lower the Pb value. Fahrenheit. 7.4 Press “set” button 4 seconds to quit. Example: Heater temperature: 190C Circuit board temperature: 185C...
- Page 5 Technical Parameters Model: MP352 Packing Size 42.6 x 37.8 28.8cm Packing Weight 7.5kg Power (120volt) 300W/2.8Amps Certificate FCC, CE Power (240volt) 300W/1.4Amps Temperature Range Max.200°C /392°F One year on whole machine Warranty except heaters. Time Range 0~999S Machine Size (open size) 36.6$ 31.8$ 22.3cm Material No.
- Page 6 Technical Parameters Cont. Material No. Part Name(English) Qty. Material No. Part Name(English) Qty. J.03.05.0604 Frontt cover J.02.05.0001 Handle shaft J.03.05.0608 Holding sheet J.03.05.0611 Machine arm J.03.05.0612 Curved link J.03.03.0006 Nylon washer 16-8-28 J.03.06.0009 Nut M6 J.02.05.0065 Pressure screw J.03.05.0039 Holding shaft 80-181 J.03.05.0428 Heater holding block J.03.05.0036...
-
Page 7: Wiring Schematic
WIRING SCHEMATIC www.proworldinc.com... - Page 8 Warranty Disclaimers Pro World shall not be liable for loss of use of TransPro equipment or other inciden- tal or consequential costs, expenses, or damages incurred by the original purchaser or any other user.
- Page 9 Pro World Inc. 961 Bethel Ave. Pennsauken, NJ 08110 Toll Free 800-678-8289 Outside U.S. 856-406-1020 Fax 856-406-1025...
