Assembly Instructions

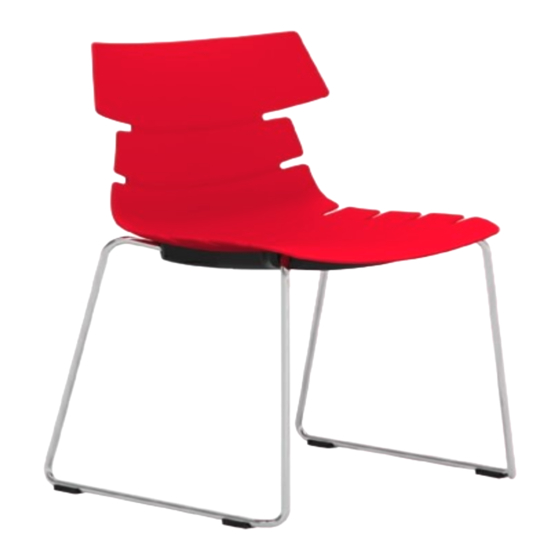

TIKAL SLED
A
B
Item
A
A
A
A
A
A
A
A
B
C
D
C
E
F
Warning
1. Product is for single person use only.
2. Do not use this chair unless all bolts are securely tightened.
3. Check that all bolts are tightened every six months or as needed.
4. Dispose of packing material properly. Do not use plastic cover as a head covering.
Suffocation may result.
5. Do not use this chair as a stepladder.
For assistance, call (888) 471-1616, or www.youtube.com/user/ideskinc1
Part Name
Part #
Plastic Shell (traffic white) G00100
Plastic Shell (traffic black) G00101
Plastic Shell (traffic red)
G00102
Plastic Shell (lime green)
G00103
Plastic Shell (london gray) G00104
Uph. Shell (cranberry red) G00105
Uph. Shell (dark pewter)
G00106
Uph. Shell (moss)
G00107
Sled Base
G00109
Bottom Cover
G00114
Screw Short
G00112
Screw Long
G00121
4mm Hex Wrench
G00113
Qty
1
1
1
1
1
1
1
1
1
1
8
8
1
Advertisement
Table of Contents
Related Manuals for idesk TIKAL SLED
Summary of Contents for idesk TIKAL SLED
- Page 1 Item Part Name Part # Assembly Instructions TIKAL SLED Plastic Shell (traffic white) G00100 Plastic Shell (traffic black) G00101 Plastic Shell (traffic red) G00102 Plastic Shell (lime green) G00103 Plastic Shell (london gray) G00104 Uph. Shell (cranberry red) G00105 Uph. Shell (dark pewter) G00106 Uph.
- Page 2 Place sled base onto plastic shell. Place bottom cover onto frame. Use the hex wrench to install the Use the hex wrench to install the screws. screws. D x 4 D x 4 WARNING DO NOT USE UPHOLSTERED SCREWS ON PP SEAT SHELL; IT MAY DAMAGE THE PP SEAT SHELL Place sled base onto upholstered...
