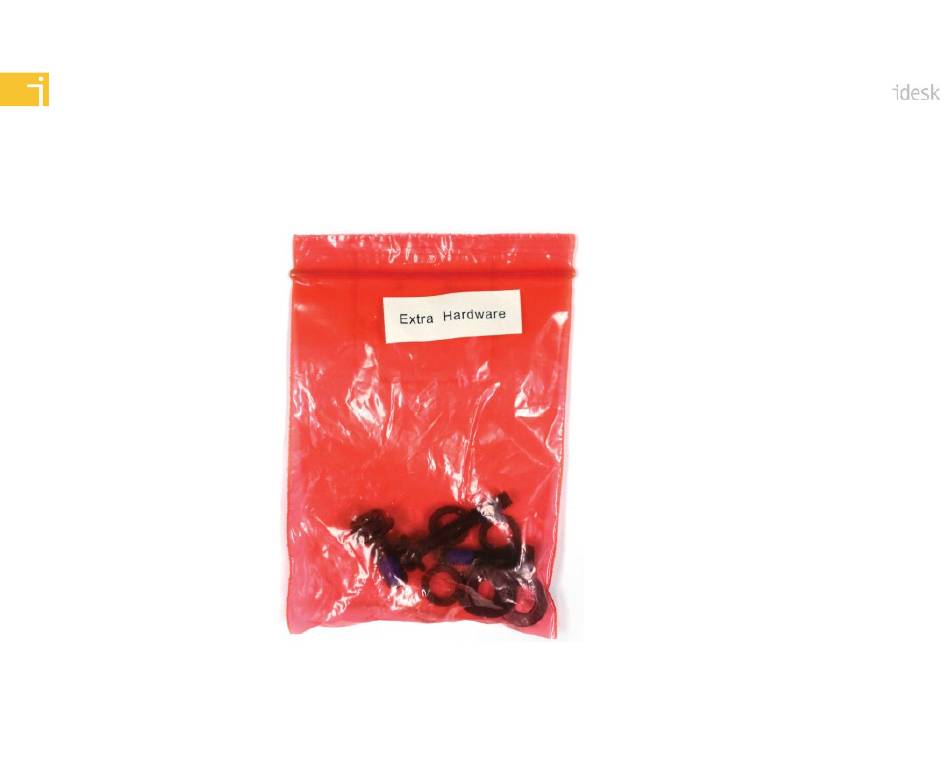

- Page 1 IMPORTANT ADDITIONAL INSTALLATION INFORMATION (idesk Seating) Model 401 A red bag containing Extra Hardware is included where applicable...
- Page 2 IMPORTANT ADDITIONAL INSTALLATION INFORMATION (idesk Seating) Model 402 Installation tip for installing adjustable arm. Bolted Cap (Item L) must be aligned with the Long Bolt (Item M). (Armrests for future shipment will be fully assembled.) Bolted Cap L Long Bolt M...
- Page 3 IMPORTANT ADDITIONAL INSTALLATION INFORMATION (idesk Seating) Model 402 To ensure the bolted cap does not rotate out of alignment, place a thin piece of tape over bolted cap prior to installation. (Armrests for future shipment will be fully assembled.) Thin tape...
- Page 4 IMPORTANT ADDITIONAL INSTALLATION INFORMATION (idesk Seating) Model 402 Installation tip for installing slip cover. 2) Assemble chair. 2) Remove old slip cover and foam 3) Unzip old slip cover and remove from seat pan by unfastening from foam. the velcro fasteners on the back and front of seat.
- Page 5 IMPORTANT ADDITIONAL INSTALLATION INFORMATION (idesk Seating) Model 403 Carefully review the part labels and Steps 3A and 3B of the assembly instructions prior to installation. Back Leg Caster Insert is angled...
- Page 6 IMPORTANT ADDITIONAL INSTALLATION INFORMATION (idesk Seating) Model 403 Installation tip for installing leg end caps. Hold leg firmly and install with steel hammer...
- Page 7 IMPORTANT ADDITIONAL INSTALLATION INFORMATION (idesk Seating) Model 403 Verify that items E and F are tight as the back can be loose and wobble...
- Page 8 IMPORTANT ADDITIONAL INSTALLATION INFORMATION (idesk Seating) Model 403 Verify that back leg is properly installed in leg bracket or legs may not be level causing it to rock. Back Leg Bracket Back Leg Notch...
- Page 9 IMPORTANT ADDITIONAL INSTALLATION INFORMATION (idesk Seating) Model 403 Installation tip for installing legs and leveling the legs on a flat surface. Loosen item F Rotate leg until tab in leg bracket slips into notch in back leg Push down on all...
