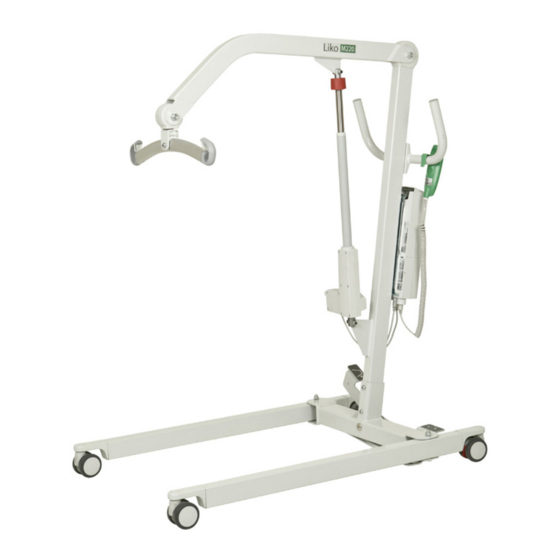

Liko M220 and M230 are easy-to-use mobile lifts primarily intended for use in nursing homes and home
environment. Both models are excellent aids for daily transfers of adults and children; for instance, for transfers
to and from a wheelchair, toilet and floor.
The models differ in the way the base width is adjusted while both lifts feature an electric lift mechanism. Liko
M230 has an electric base and Liko M220 a manual base for opening and closing the legs.
An individually fitted sling and other accessories are of utmost significance for performance and safety when
using Liko's lifts.
In this document, the person being lifted is referred to as the patient, and the person helping them is referred
to as the caregiver.
is a warning triangle used for situations which require extra care and attention.
IMPORTANT!
Read the instruction guide for both the patient lift and lifting accessories before use. Lifting and transferring
a person always involves a certain level of risk. It is important to completely understand the contents of
the instruction guides. The equipment should only be used by trained personnel. Please contact your Liko/
Hill-Rom representative in the event of any uncertainties or questions.

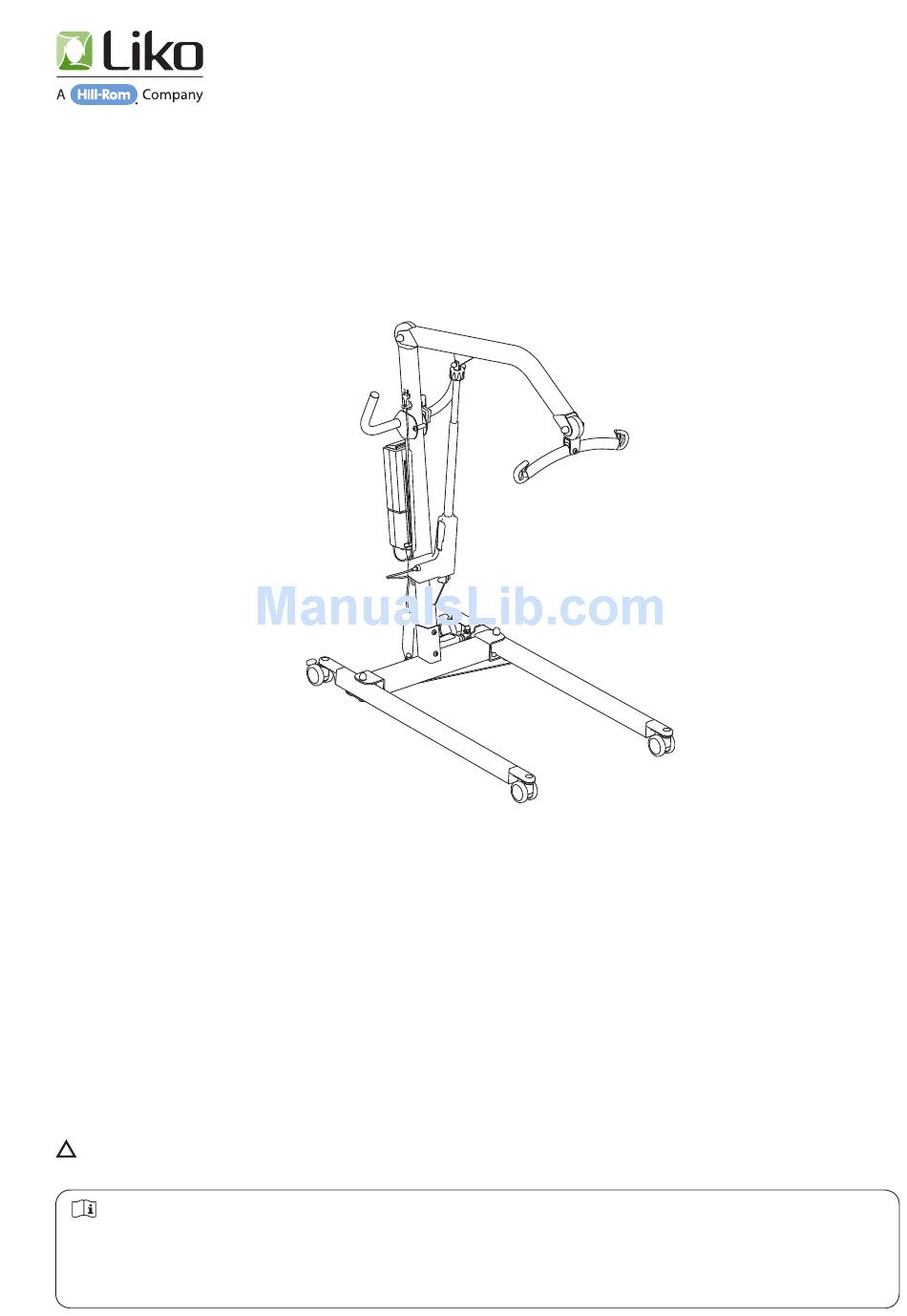

Liko™ M220 / Liko™ M230

Product Description

Liko M230
Instruction Guide
English
7EN150106-04
2012-03-06
Applies to the following models:
Liko M220
Prod. no. 2050010
Liko M230
Prod. no. 2050015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M220 and is the answer not in the manual?

Questions and answers

Related Manuals for Liko M220

Summary of Contents for Liko M220

  • Page 1: Product Description

    The models differ in the way the base width is adjusted while both lifts feature an electric lift mechanism. Liko M230 has an electric base and Liko M220 a manual base for opening and closing the legs.

  • Page 2: Table Of Contents

    Never leave a patient unattended during a lifting situation! Liko M220 and M230 have been tested by an accredited testing institute and fulfill the requirements specified in the Medical Device Directive 93/42/EEC, for Class I products.

  • Page 3: Definitions

    Material: Steel be active, but no more than 2 min. Weight: Gross: (Liko M220) 41 kg ( 90 lbs) Battery: In series: 2 x 12 V 2.9 Ah valve-regulated (Liko M230) 41 kg ( 90 lbs) lead-acid gel batteries. New batteries Heaviest removable part: provided by the supplier.

  • Page 4: Dimensions

    1 screw M5, 2 screw M10x16, • handle 1 casing (M10), • base with electric (M230) or manual (M220) adjustment; 1 Allen wrench 3 mm, • control box, charger cable, hand control with cable; 2 Allen wrench 6 mm. • instruction guide and quick reference guide with chain;...
  • Page 5 • the motion of the lift arm corresponds to the buttons • the adjustment of the base width is functional; on the hand control; • the rear wheels brakes is functional. Liko M220 / Liko M230 • 7EN150106-04 w w w . l i k o . com...

  • Page 6: Operation

    To raise or lower the lift arm, press The lifting motion stops when the push button is released. For electrical adjustment of the base width (Liko M230), push Liko M220 / Liko M230 • 7EN150106-04...
  • Page 7 NOTE: Place a pillow under the patient’s head for increased performance and comfort. Always have the wheels locked when lifting from the floor. Liko M220 / Liko M230 • 7EN150106-04 w w w . l i k o . com...

  • Page 8: Charging The Batteries

    Liko M220 and M230 comply with the Directive 2002/96/EC on waste electrical and electronic equipment. Old batteries are to be deposited at the nearest recycling facility in accordance with local regulations or given to personnel authorized by Liko/Hill-Rom.

  • Page 9: Maximum Load

    For the assembled lift unit, the maximum load is always the lowest maximum load rating for any of the components. For example, a Liko M220/Liko M230 which is approved for 182 kg (400 lbs) can be equipped with a sling which is approved for 200 kg (440 lbs). In this case, the maximum load of 182 kg (400 lbs) applies to the assembled lift unit.
  • Page 10 For wall installation or for use with table charger housing. Table Charger Housing Prod. No. 2107103 excl. charger. Extra Battery Prod. No. 2006106 Liko M220 / Liko M230 • 7EN150106-04 w w w . l i k o . com...

  • Page 11: Simple Troubleshooting

    4. Check that the battery is charged. 5. Check that the battery’s contact plates are not defective or broken. 6. If the problem persists, please contact Liko/Hill-Rom. The charger doesn’t work. 1. Check that the emergency stop has not been engaged.

  • Page 12: Inspection And Maintenance

    Periodic inspection, repair and maintenance should be performed only in accordance with the Liko Service Manual and by personnel authorized by Liko and using original Liko spare parts. Service Agreement Liko/Hill-Rom offers the opportunity to enter into service contracts for the maintenance and regular inspection of your Liko product. Expected Life Time The product has an expected life time of 10 years when correctly handled, serviced and inspected in accordance with Liko’s instructions.
