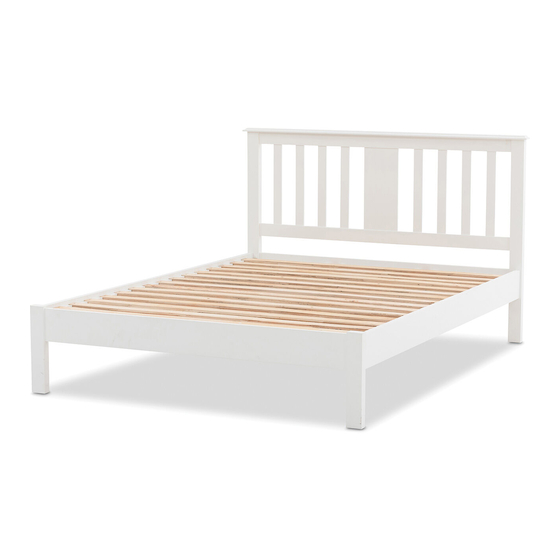

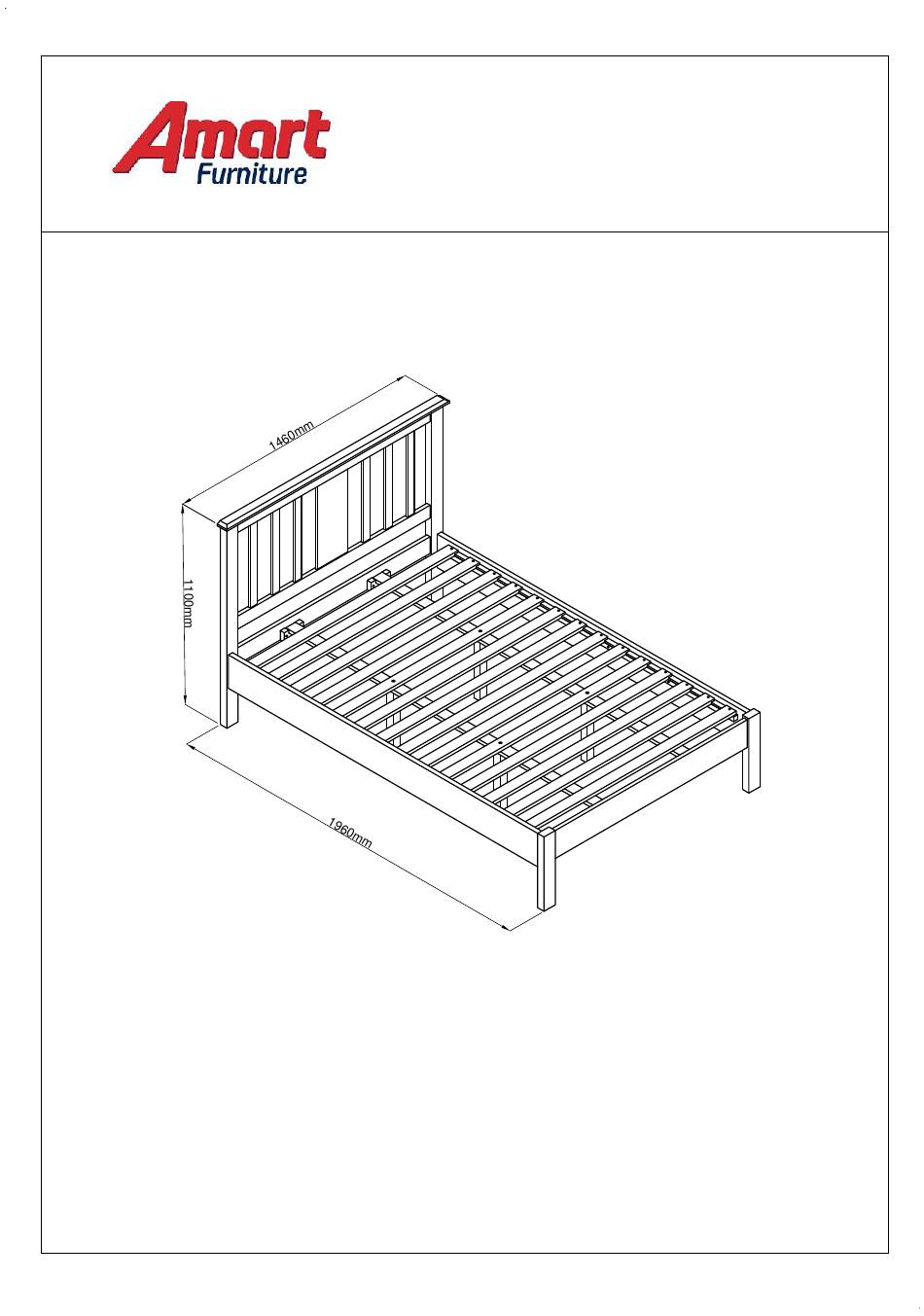

- Page 1 ASSEMBLY INSTRUCTION ROSE BAY DOUBLE BED ITEM CODE 64418 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 64418...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST PARTS LIST QT'Y HARDWARE LIST QT'Y Headboard 1 pc Bolt M6x50mm 4 pcs Footboard 1 pc Bolt M8x20mm 8 pcs Side rail 2 pcs Screw M4x30mm 28 pcs Middle rails 2 pcs Allen Key 4mm 1 pc 4 pcs Support legs Adhesvise felt pad 4 pc...
- Page 4 Attach adhesive felt pad (E) onto the legs 64418...
- Page 5 STEP 1: Attach 3 onto 1 and 2 using the bolts (B), tighten it up by using an allen key (D) (X8) STEP 2: Attach 5 onto 4 and 6 using the bolts (A), tighten it up by using an allen key (D) Assembly these components out of bed frame.
- Page 6 STEP 3: Use two people to place H frame onto 3. Attach H frame onto 3 using the screws (C), tighten it up by using an screwdriver. STEP 4: Attach 7 onto 3 using the screws (C), tighten it up by using an screwdriver. (x24) 64418...
- Page 7 ASSEMBLY IS COMPLETE IMPORTANT NOTE: Once the bed is positioned and the support legs are adjusted to touch floor, the slats can then be laid down and secured before putting on the mattress. DO NOT push or pull the bed if there is a need for re-positioning as this may result in broken support legs for the centre rail.
- Page 8 IMPORTANT: CARE GUIDE FOR YOUR TIMBER FURNITURE Congratulations! You have just purchased a quality product from Amart furniture. Please read on for important information regarding your purchase… A multi-step finish is applied to all our furniture, but all wood comes from nature.
