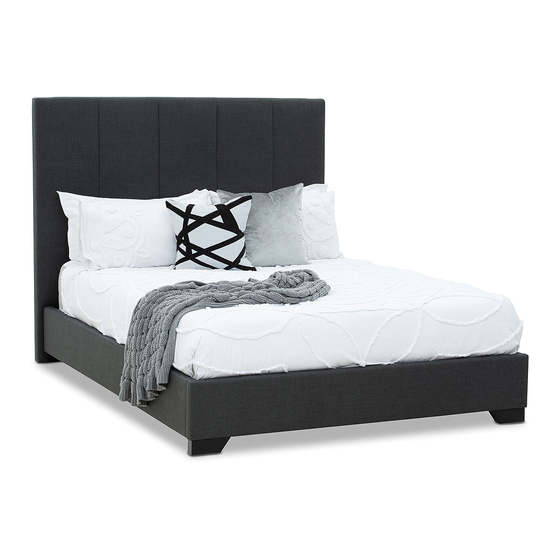

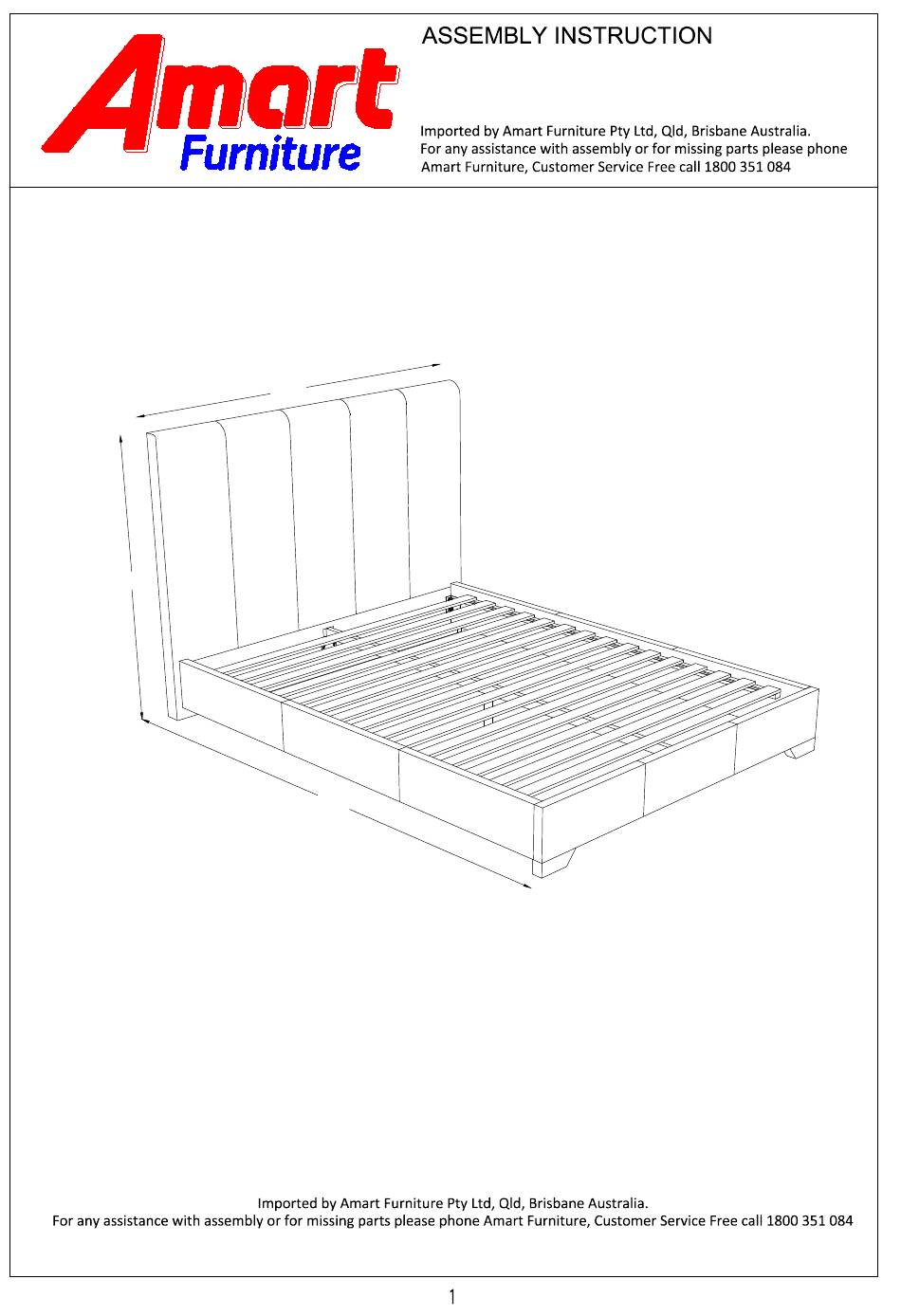

- Page 1 AVERY QUEEN BED ITEM CODE 65536 1695mm 1422mm 2190mm 65536...
- Page 2 Before you start : Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product. Take care when lifting. Product should be assembled as near as possible to the point of use. Ensure that you have all required contents for complete assembly. Always read the assembly instructions carefully before beginning assembly.
- Page 3 HEADBOARD ( x 1 ) FOOTBOARD ( x 1 ) SIDE RAIL ( x 2 ) CENTER RAIL ( x 1 ) WOOD LEGS ( x 2 ) FLAT SLAT 1540mm x 62mm x 14mm ( x 15 ) CENTER SUPPORT LEG ( x 1 ) Bolt ( pre-assembled ) Allen Key Washer...
- Page 4 Step 1 : Attach Dowels to legs as shown. Ensure all feet (5.) attach to the Footboard (2.) then tighten them before you continue to the next step. Diagram 1 Caution : Please make sure the legs in the right position. E.
- Page 5 Step 3 : Install the Center Support Leg (7.) with D. M8 x 60mm bolt and C. M8 Washer on Center Rail (4.). Connect Center Rail (4.) by slotting each end into brackets installed on Headboard (1.) and Footboard (2.) by pushing the bracket down.
- Page 6 ASSEMBLY IS COMPLETED Note : Please Lift up the bed to move, DO NOT push or pull the bed with mattress on top. 65536...
- Page 7 *PILLING IS NOT A NORMAL OCCURRENCE CAUSED BY WEAR AND TEAR AND DOES NOT AFFECT THE DURABILITY OR FUNCTIONALITY OF THE FABRIC AND IS EASILY REMOVED Made In MALAYSIA Imported By Amart Furniture Pty Ltd, Brisbane, Qld, Australia Item Code: 65536 Product Name: AVERY QUEEN BED 65536...
