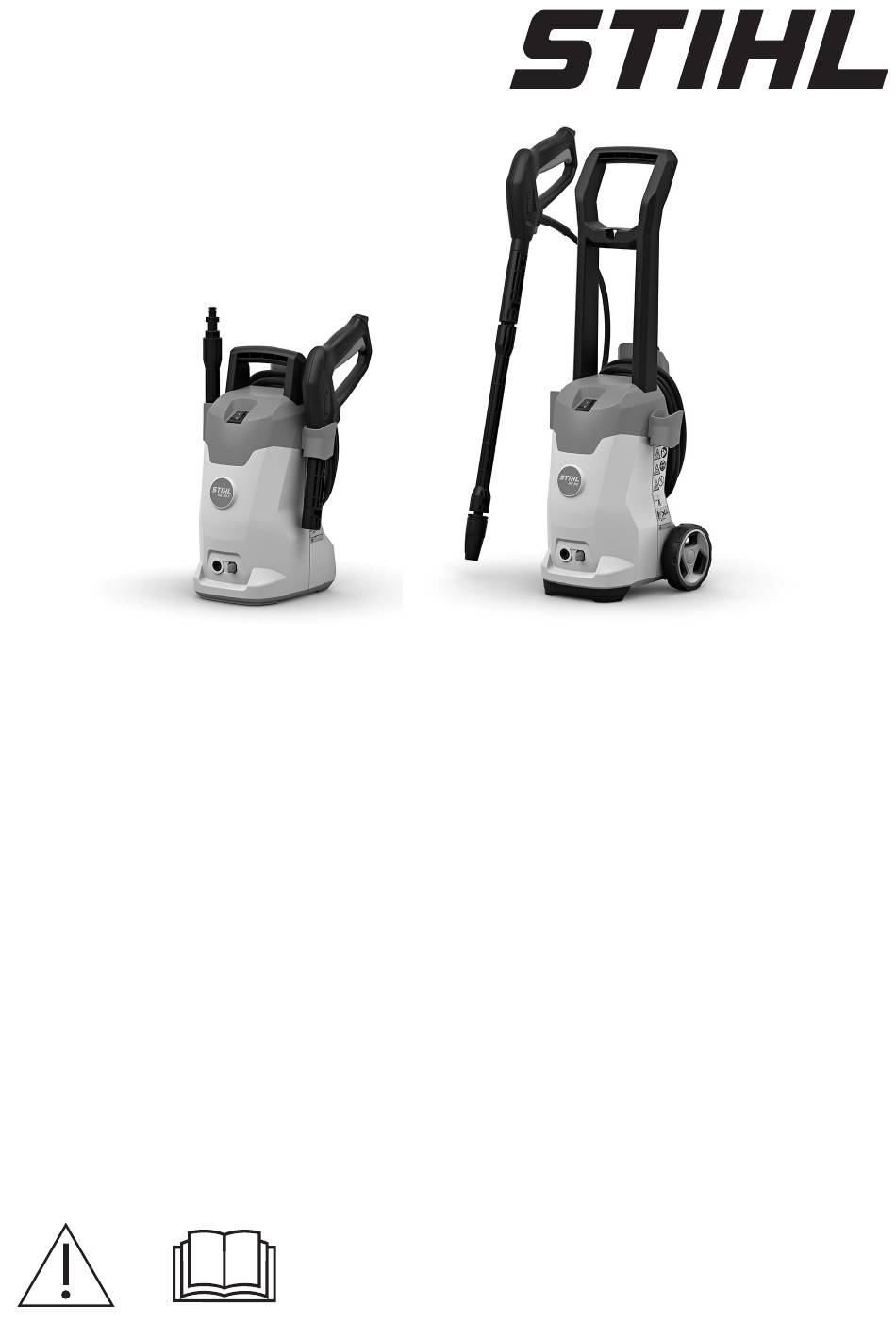

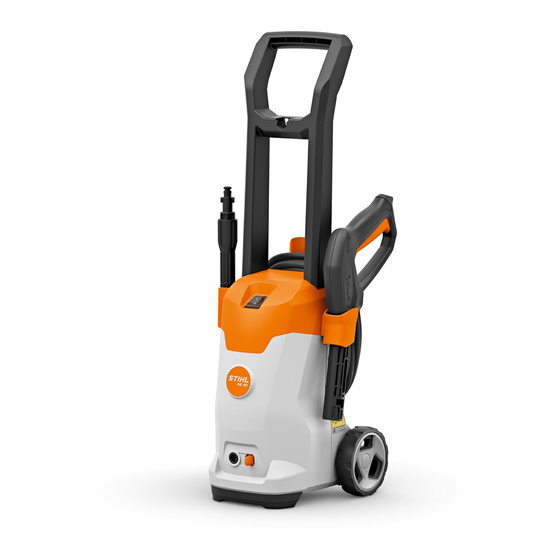

  • Page 1 RE 80.0, RE 80.0 X 2 - 24 Instruction Manual...

  • Page 2: Table Of Contents

    STIHL expressly commit themselves to a sus‐ tainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life. We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

  • Page 3: Overview

    11 Holders The holder is used to store the connecting cable and the high-pressure hose. # Rating plate with machine number High-pressure washer RE 80.0 1 Handle The handle is used when carrying the high- pressure washer. 2 Holders The holder is used for storing the spray gun.
  • Page 4 English 3 Overview 4 Locking lever 4 Retaining latch The locking lever holds the connector in the The retaining latch releases the trigger. high-pressure washer. 5 Locking lever 5 Rocker switch The locking lever holds the connector in the The rocker switch is used to switch the high- spray gun.

  • Page 5: Safety Precautions

    The high-pressure washers STIHL RE 80.0 X The warning symbols on the high-pressure and RE 80.0 are not designed to be used for: washer have the following meanings: – Cleaning asbestos cement and similar surfa‐...
  • Page 6 ► If in any doubt: Contact a STIHL servicing ► Do not use in rain. dealer. ► Position the pressure washer so that it will not be wet by dripping water.
  • Page 7 ► Unplug the mains plug of the high-pressure the high-pressure washer. washer from the socket. ► Fit original STIHL accessories for this high- ■ At temperatures below 0° C water can freeze pressure washer. on the surface to be cleaned and in the com‐...
  • Page 8 English 4 Safety Precautions ► Vehicles or machinery should only be ■ If electrical equipment, electrical connections, cleaned at places where there is an oil trap sockets and live power cords come into con‐ in the water drain. tact with water, electric shock may result. Per‐ ■...
  • Page 9 ► Make sure your hands are dry before touch‐ ful to the environment. ing the connecting cord, extension cord or ► STIHL recommends the use of genuine plugs. STIHL detergents. ► Plug the mains plug of the connecting cord ►...
  • Page 10 English 4 Safety Precautions ► Make sure that the mains voltage and the ► Secure the pressure washer with lashing mains frequency of the power supply match straps, belts or a net so that it cannot topple the data on the rating plate of the pressure over and cannot move.

  • Page 11: Preparing The Pressure Washer For Operation

    10.4. ► Connect pressure washer to a water source, ► Connect pressure washer to power supply, 8.1. ► If it is not possible to carry out these steps: Do not use the pressure washer. Consult a STIHL servicing dealer. 0458-001-0121-C...
  • Page 12 English 6 Assembling the pressure washer Attaching and removing the Attaching spraying set spray gun 6.3.1 Attaching the spray gun ► Insert spraying set (1). Fitting and removing the high- ► Slide the connector (2) into the spray gun (1). pressure hose The connector (2) engages with an audible click.

  • Page 13: Connecting To A Water Source

    7 Connecting to a water source English Connecting to a water 6.4.2 Removing the spray lance source Connecting the high-pressure washer to the mains water sup‐ Connecting the water filter If the high-pressure washer is operated with sandy water or water from cisterns, a water filter ►...
  • Page 14 (a), 18.2. even water jet flows out of the high-pressure hose. The appropriate STIHL suction set must be used. The suction set includes a water hose with a special coupling. Depending on the market, the appropriate STIHL suction set may be included with the high-pres‐...

  • Page 15: Connecting The Pressure Washer To The Power Supply

    8 Connecting the pressure washer to the power supply English NOTICE ■ If the high-pressure washer does not suck in water, the pump may run dry and the high- pressure washer may be damaged. ► If no water escapes from the high-pressure hose after two minutes: Switch off the high- pressure washer and check the water sup‐...
  • Page 16 Detergents can increase the cleaning effect of – Fan-jet nozzle: The fan-jet nozzle is designed the water. The use of the STIHL spraying set is for cleaning large areas. required for working with cleaning agents. The –...

  • Page 17: After Finishing Work

    11 After Finishing Work English ► Fill the bottle (1) with maximum 500 ml of the detergent. ► Screw the spray nozzle (2) onto the bottle (1) and tighten firmly by hand. ► If a nozzle is attached to the spray lance (3): Remove the nozzle.

  • Page 18: Transporting

    ► Carry the high-pressure washer using handle high-pressure washer, high-pressure hose and (1). spray gun with a damp cloth. ► Clean vents with a paintbrush. Carry or pull the high-pressure washer (RE 80.0) 14.2 Cleaning nozzle and spray lance ► Pull the high-pressure washer using handle (1).

  • Page 19: Maintenance

    ► Reassemble the water filter. 15 Maintenance 15.1 Maintenance intervals Maintenance intervals depend on the ambient conditions and the operating conditions. STIHL recommends the following maintenance inter‐ vals: Monthly ► Unscrew the connector (1) of the water con‐ ► Clean water intake screen.
  • Page 20 ► Allow the pressure washer to cool for 5 minutes. ► Clean the nozzle. The high-pressure There is a leak in the high-pressure ► Ask a STIHL servicing dealer to pump repeatedly pump, high-pressure hose or spray inspect the pressure washer. switches on and off attachment.

  • Page 21: Specifications

    – Length: 250 mm 18 Specifications – Width: 270 mm – Height: 430 mm 18.1 STIHL RE 80.0 X high-pres‐ – Length of high-pressure hose: 5 m sure cleaner – Weight (m) with accessory attached: 7 kg Version 100 V / 50-60 Hz Version 127 V / 60 Hz –...
  • Page 22 Versions from 220 V to 230 V / from 50 to 60 Hz – Fuse (characteristic "C" or "K"): 10 A 18.2 STIHL RE 80.0 high-pressure – Power consumption: 1.7 kW cleaner – Maximum permitted network impedance: 0.26 Version 100 V / 50-60 Hz –...

  • Page 23: Spare Parts And Accessories

    If rated voltage on the rating label is 100 V to pollute the environment. 127 V: ► Take STIHL products including packaging to a – Cord length up to 10 m: AWG 14 / 2.0 mm² suitable collection point for recycling in accord‐...

  • Page 24: Ukca Declaration Of Conformity

    – Type: high-pressure washer – Manufacturer's brand: STIHL – model: RE 80.0 X; RE 80.0 – Serial number: RE02 complies with the relevant provisions of the UK regulations The Restriction of the Use of Certain Hazardous Substances in Electrical and Elec‐...
  • Page 25 22 UKCA Declaration of Conformity English 0458-001-0121-C...
  • Page 26 English 22 UKCA Declaration of Conformity 0458-001-0121-C...
  • Page 27 22 UKCA Declaration of Conformity English 0458-001-0121-C...
  • Page 28 *04580010121C* 0458-001-0121-C...
