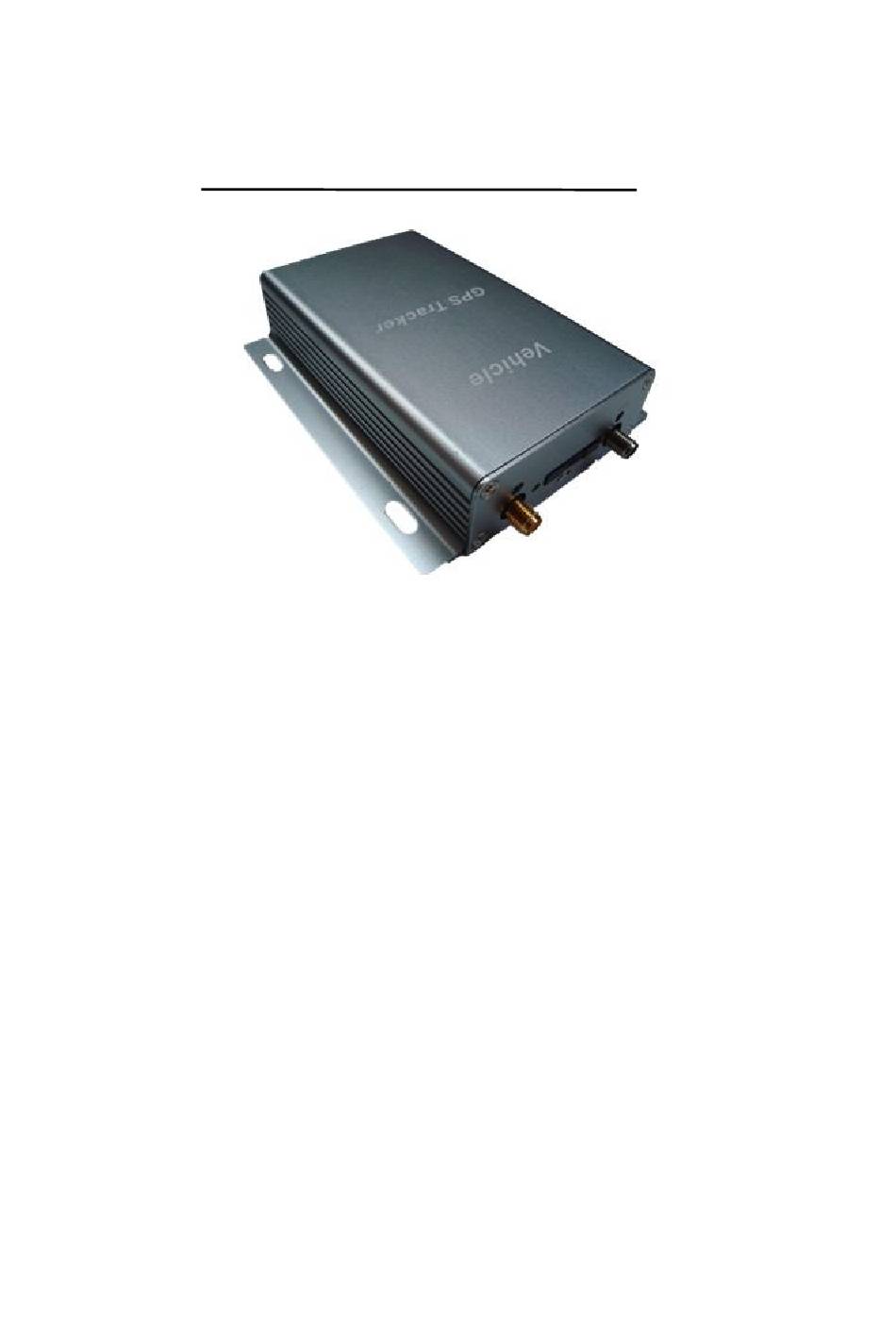

- Page 1 GPS Vehicle Tracker USER MANUAL (Model: VT310N) Please read carefully before operation...
-
Page 2: Table Of Contents
3. Product Function and Specifications....................... - 3 - 3.1 Product Function............................- 3 - 3.2 Specifications ............................- 4 - 4. VT310N and Accessories ..........................- 5 - 5. First Use ................................. - 5 - 5.1 Install SIM Card ............................- 5 - 5.2 Charging .............................. -
Page 3: Product Overview
With superior GPS and GPRS modules, VT310N has good sensitivity and stable performance. Especially, VT310N is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customer or manage their fleet. -
Page 4: Specifications
3.2 Specifications Items Specifications Dimension 117*85*26mm Weight 185g Charging Voltage 9V~24V SIM card type Active mode(peak) < 1.0A Power Active mode(avg.) < 300mA consumption -30℃~+ 75℃ Operating Temperature Humidity Up to 75% non-condensing Connected via 50Ω coax connector External Antenna External SIM Card Connected via SIM card connector Button... -
Page 5: Vt310N And Accessories

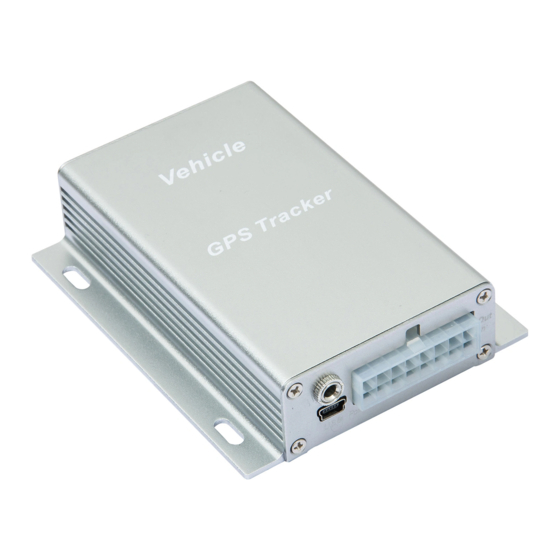

4. VT310N and Accessories VT310N Main Unit GPS Antenna GSM Antenna Relay 16P I/O Cable 5. First Use 5.1 Install SIM Card Check that the SIM has not run out of credit (test the SIM in a phone to make sure it can send and receive SMS);... -
Page 6: Charging
6. Basic SMS Commands 6.1 Position report Description: To know the position of your VT310N , send an SMS or make a telephone call directly to VT310N and you will receive an SMS with its location and other information. Command : W<password>,<000>... -
Page 7: Set Function Of Receiving Actual Address Name Via Sms
(c) Then, after 20 second, your mobile phone will receive a position SMS. 6.2 Set function of receiving actual address name via SMS Description: To know specific address of your VT310N, send an SMS and you will receive an SMS with its location physical address name. -
Page 8: Get Location In Google Mapurl Format
6.3 Get location in google mapURL format Description: You will get a google map URL after sendind the command, click the URL then the location can be shown directly on Google Maps on your mobile phone. Command: W<password>,100 Example: SMS send:W000000,100 as following picture SMS Received: then... -
Page 9: To Cut Off Engine, Immobilize The Vehicle
6.4 To cut off Engine, immobilize the vehicle Command: W<password>,020,P,F Description: P=1, means output1, P=2 means output2 … P=5, means output5 F=0, to disable this output function; F=1, to enable this output function Example: SMS send:W000000,020,1,1 If the output1 is connect to oil-cut relay, this command is to enable the engine-cut function, the engine oil pump line will be cut-off to immobilize the vehicle. -
Page 10: Set Time Interval For Sending Gprs Packet
7.5 Set Time Interval for Sending GPRS Packet Command :W<password>,014,XXXXX Description: XXXXX should be in five digitals and in unit of 10 seconds. XXXXX =00000, to disable this function XXXXX =00001~65535, time interval for sending GPRS packet and in unit of 10 seconds 8.Installation 8.1 Install I/O Cable The I/O cable is a 16-pin cable including power, analog input, negative/positive input and output. -
Page 11: Power/Gnd
Low voltage (0V) when effective and open drain (OD) when ineffective. Output open drain sink voltage (ineffective): 45V max. Output low voltage sink current (effective): 500mA max. OUT2 Yellow E.g. connected with siren OUT3 Yellow E.g. unlocked car door OUT4 Yellow E.g. -
Page 12: Digital Input (Positive Triggering)
Power for Relay Power for lock Motor Relay for lock control White lock unlock Input 1 or Input 2 or Input 3 Lock switch 8.1.3 Digital Input ( Positive Triggering) E.g. Detecting engine on/off status 8.1.4 Output E.g. Control fuel-cut 8.1.5 Analog Input (PIN6/AD2) 8.1.5.1 Analog Input Application 1–... -
Page 13: Install Gps/Gsm Antenna
Voltage Caculating Formula: input voltage=(AD*6)/1024 0x0377=>887(Decimal)=>(887*6)/1024=5.1972V(Voltage) OxO2FB=>763(Decimal)=>(763*6)/1024=4.4707(Voltage) Note: Fuel level sensors supplied by our company are resistance-type sensors with output resistance: 0-200Ù (ohm). For the circuit shown on above figure, if VCC is 12V, R should be 200Ù (ohm) and if VCC is 24V then R should be 600Ù... -
Page 14: Install Microphone (Optional)
Wrong password in your SMS Insert the correct password The SIM in VT310N has run out of credit Replace or top up the SIM card No SIM card Insert working SIM card. Check in phone that the SIM can send SMS messages. -
Page 15: Appendix 1: Configure By Computer
Wait for the target to come out Appendix 1 Configure by Computer This part shows the basics of how to use the TOPSHINE Parameter Editor. Note: Don’t connect VT310N to external battery when configuring. How to Edit the Parameters of VT310N Step 1 Buy one specific USB cable for configuration from Our Company Step2 . - Page 16 Run ‘CP210x_Prolific_DriverInstaller’ to install the driver for the USB data cable. Note: CP210x_Prolific_DriverInstaller is in the folder ‘USB-232 Driver’ in the CD. Connect the USB Data Cable between VT310N and PC. 2.Connect the configuration cable with PC, open device management of your computer, you can find “Prolific USB-to-Serial Comm Port “...
- Page 17 6. Turn on VT310Nand it will connect with the Editor automatic, As soon as they connect successful, all the buttons are availability and the status bar will clue on’ Tracker Connect!’ , then you can Read or Write the VT310N’sParameters. - 17 -...
- Page 18 Instruction of parameter settings: Item Description GPRS Tick to enable GPRS function, select TCP or UDP mode Tracker ID Should be unique, in number, maximum 14 bytes APN, APN Account, APN Passoword Put your local APN, APN username and password if necessary IP, Port Put online tracking server IP and port, our default is IP:www.global-track.net...
- Page 19 Item Description SMS tracking No. Interval To put a mobilephone number for automatic tracking by SMS at certain time interval in minutes Password To set SMS command password, the default is 000000, Over Speed To set speed limit for overspeed alarm Prefix(area code) To set country code Time Zone...
-
Page 20: Appendix 2: Command List
Tick it to send alert when the external power be cut off APPENDIX 2：Command List Description Command Remarks Get current location W******,000 Get current location of VT310N Get location in google W******,100 http://maps.google.com/map map URL format via SMS s?f=q&hl=en&q=22.542563 ,114.077971&ie=UTF8&z= 16&iwloc=addr&om=1... - Page 21 =07, 1000m =08, 2000m Extend Settings W******,008,ABCDEFGHIJ### A=0, disable position report function when a call is made to VT310N A=1, enable position report function to get position SMS by Calling VT310N I=0, disable power failure alert I=1, enable power failure alert The functions of BCDEFGHJ are remained for furthur use.
- Page 22 GPS stops working. GSM Example: enters standby mode and stop sending out message If XX=10, VT310N will enter power until it is activated by an SMS or an incoming call) saving mode in 10 minutes after it is immobile.
- Page 23 T=[1, 65535] to set time difference in minutes to GMT. Default value is GMT +, not necessary for those ahead of GMT. For example, either +120 or 120 is acceptable. -, required for those behind GMT. For example, -120. Set character for SOS W******,033,P,Char Char P is the button number.
