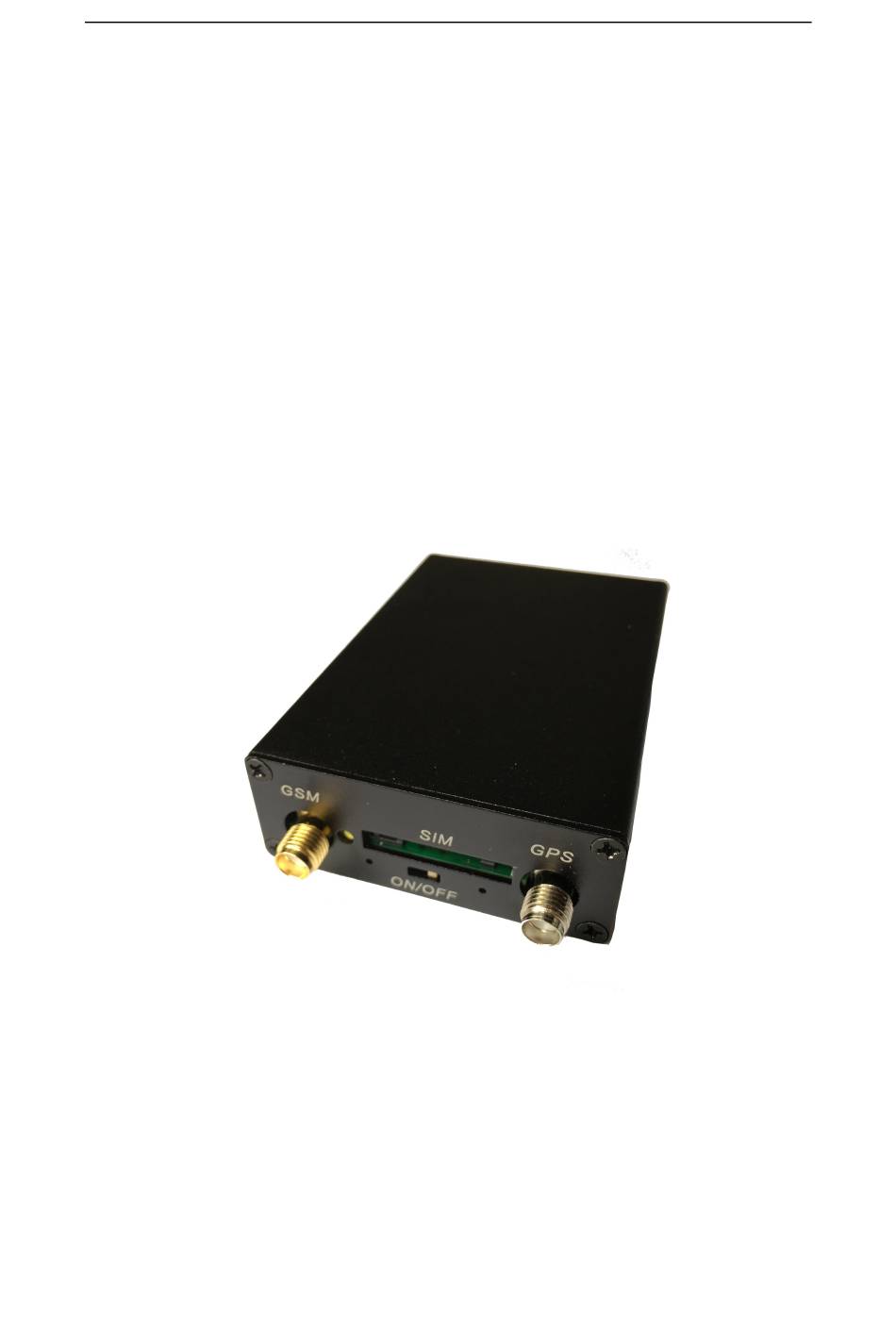

- Page 1 User Manual of GT103 GPS Tracker User Manual (Model: GT103) Please Read Carefully Before Operation - 1 -...
-
Page 2: Table Of Contents
5.6 Control fuel-cut (Output1 )....................6 5.7 Install GPS/GSM Antenna and microphone................. 7 6. Installation............................7 6.1 5-p wires instruction......................8 6.2 Standard accessories of GPS tracker GT103..............8 6.3 Recommended install place....................9 7. Set GT103 on GPRS01 Platform....................10 7.1 SMS command........................10 7.2 Set tracker on Topshine GPRS01 Platform.................13... -

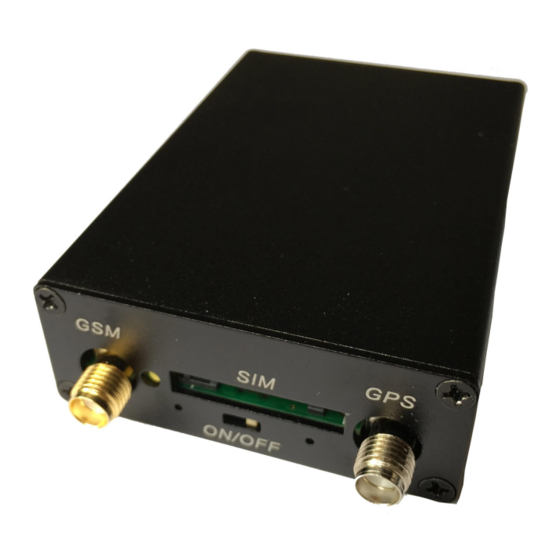

Page 3: Product Overview
User Manual of GT103 1. Product Overview GT103 is a kind of external GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. 2. Applications Vehicle Real Time Tracking Motorcycle/car Security Fleet Management 3. -
Page 4: Specifications
User Manual of GT103 * View mileage data via SMS or GPS web-based tracking centre system * Over speed alarm in the tracking platform 4. Specifications Items Specifications Dimension 75*50*20(mm) Weight Input voltage DC 9V~36V/1.5A Power Consumption 40mA standby current Operating -40°C~75°C... -
Page 5: Led Indications
User Manual of GT103 like car battery, LED light will flashing. 5.3 LED indications Push the power switch to turn on/off SLT01 GPS LED (Red) Flashing (every 0.1 second) Initializing or back-up battery power is low Flashing (0.1 second on and 2.9 seconds off) -
Page 6: Acc Detection
User Manual of GT103 (Red) wires to the battery of vehicle. 5.5 ACC Detection Example: Detecting vehicle engine on/off status 5.6 Control fuel-cut (Output1 ) - 6 -... -
Page 7: Install Gps/Gsm Antenna And Microphone
User Manual of GT103 5.7 Install GPS/GSM Antenna and microphone Note: Do not shield or cover the GPS Antenna with any objects containing metal. 6. Installation Please select experienced technicians to install this system. The installation should be carried in the working condition for this system. -
Page 8: 5-P Wires Instruction
Blue wire Digital Input 4 (positive triggering), E.g. detecting status of ACC on/off Output 1 Yellow wire E.g. Connect relay to cut off engine or fuel 6.2 Standard accessories of GPS tracker GT103 Accessories IMAGE FUNCTION Main unit 1 piece... -
Page 9: Recommended Install Place
User Manual of GT103 6.3 Recommended install place For automobile: For Motorcycle: - 9 -... -
Page 10: Set Gt103 On Gprs01 Platform
User Manual of GT103 7. Set GT103 on GPRS01 Platform 7.1 SMS command ① Check tracker ID Command: Tracker will reply message: 000000;68995039891033;internet;www.track-car.com,9700;TCP;00006;TK103 MC20 190314-4 Explain: 000000 is tracker’s password 68995039891033 is tracker ID (Default tracker ID, user cant change) internet is APN www.track-car.com is IP... - Page 11 User Manual of GT103 Description: Change user’s password. Note: ****** is user’s password and the default password is 000000. The tracker will only accept commands from a user with the correct password. Commands with wrong password will be ignored. ###### is the new password. Password should be 6 digits.
- Page 12 User Manual of GT103 ⑩ Set time zone via sms command or tracking platform SMS command: W000000,032,XX XX = 0, to disable this function XX = [ 1 , 65535 ] to set time difference in minutes to GMT. Default value is GMT+, not necessary for those ahead of GMT. For example, if time zone is +2, either +120 or 120 is acceptable.
-
Page 13: Set Tracker On Topshine Gprs01 Platform
User Manual of GT103 7.2 Set tracker on Topshine GPRS01 Platform ① Login Topshine GPRS01 Platform (Ask sales person to create one tracking account) Website: www.track-car.com Phone link: www.track-car.com/m User Name: *** Password: *** Note: Red box means the vehicle Online;... - Page 14 User Manual of GT103 Click System Click Team Management under Vehicle Manage. Click New. - 14 -...
- Page 15 User Manual of GT103 Put in Team Name and click Select Company. Find a company and double click to finish choosing. The chosen company will be showed in the blank. - 15 -...
- Page 16 User Manual of GT103 Decide how many vehicles you will add under this Team and put it in Max Count. Click Save it will show Operation Success! Important Notes: After a period of time, if you want to continue to add more vehicles into this Team, remember to add the number of new vehicles which you want to add to the max count.
-
Page 17: Add A New Vehicle
User Manual of GT103 Add a new vehicle The parts in the three circles parts are must part you need to put. - 17 -... - Page 18 User Manual of GT103 1. Click Vehicle Management and click New - 18 -...
- Page 19 User Manual of GT103 2. Put in Imei No.. The Imei No. = Tracker ID 2. Put Vehicle License Plate Number in Plate. 3. Click Select Team to choose a team you have added. - 19 -...
- Page 20 User Manual of GT103 After choose the team, it will show in the blank. Choose corresponding device model from Protocol drop-down list. Here we choose VT1000. - 20 -...
- Page 21 User Manual of GT103 6. Choose map. If your country is in the drop-down list, please choose it. It means there is local map of your country in our server, so you can see street name address automatically in Main Track and History.
- Page 22 User Manual of GT103 Other information, you can finish according to your information. Click Save to finish adding new vehicle. - 22 -...
- Page 23 User Manual of GT103 Enter Mobile Android Tracking APP 1) Enter web base tracking platform (www.track-car.com), scan QR code to download “ android APP” - 23 -...
-
Page 24: Troubleshooting
Unit is sleeping Cancel sleeping mode Wrong password in your SMS Insert the correct password The SIM in GT103 has run out of credit Replace or top up the SIM card No SIM card Insert working SIM card. Check in phone that the SIM can send SMS messages.
