Topshine MT01 User Manual

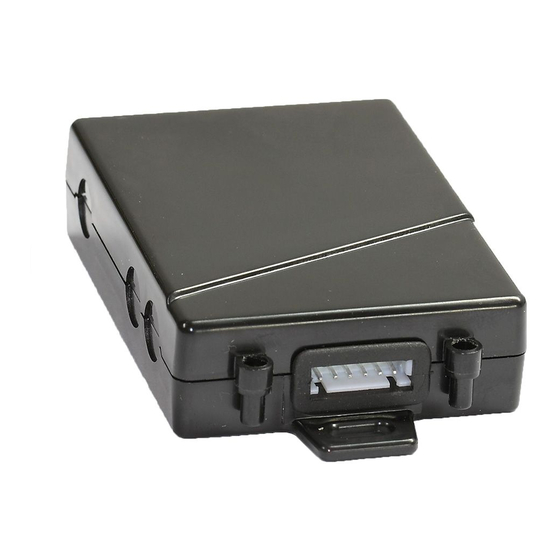

Gps vehicle tracker
Hide thumbs
Table of Contents

Advertisement

Quick Links

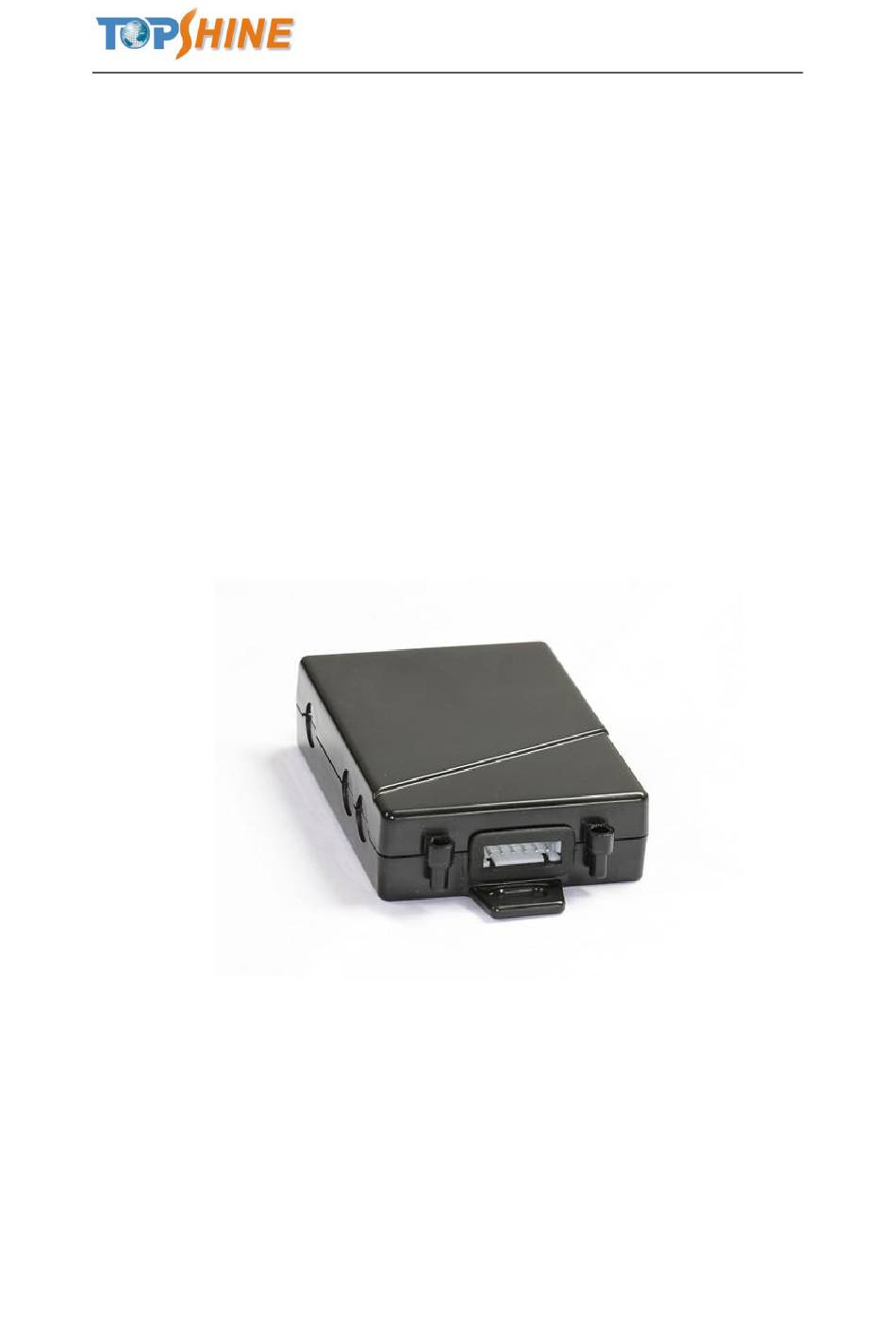

Guangzhou Topshine Information Technic Co., LTD
Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA
User manual of tracker MT01
GPS Vehicle Tracker
User Manual (Model: MT01)
2017-09-14
Please Read Carefully Before Operation
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Topshine MT01

Summary of Contents for Topshine MT01

  • Page 1 Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 GPS Vehicle Tracker User Manual (Model: MT01) 2017-09-14 Please Read Carefully Before Operation - 1 -...
  • Page 2 Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 - 2 -...

  • Page 3: Table Of Contents

    5.1 Install SIM Card........................6 5.2 Charging..........................6 5.3 LED indications........................6 6. Connect the tracker MT01 to GPRS01 Web Server Platform............7 Optional 1: Configure by Computer to set GPS tracker online..........7 Optional 2: SMS Commands to set GPS Tracker online............12 7.

  • Page 4: Product Overview

    User manual of tracker MT01 1. Product Overview MT01 is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, built-in antenna and waterproof designed, easy to be installed and concealed, with power voltage range from 9V~36V, therefore can satisfy tracking and security demands for all kinds of vehicles.

  • Page 5: Specifications

    Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 * Built-in motion sensor for power & GPRS flow saving mode (sleep mode) * I/O: 3 Inputs, 1 Output ,1 AD...

  • Page 6: First Use

    Connect the device with external power like car battery, and turn on its power switch and it will do charging automatically. 5.3 LED indications Push the power switch to turn on/off MT01 GPS LED (Red) Flashing (every 0.1 second) Initializing or back-up battery power is low Flashing (0.1 second on and 2.9 seconds off)

  • Page 7: Connect The Tracker Mt01 To Gprs01 Web Server Platform

    Device is connected to the GSM network Flashing (1 second on and 2 seconds off) Device is not connected to the GSM network 6. Connect the tracker MT01 to GPRS01 Web Server Platform Two Methods to set GPS tracker online: Configure by Computer or SMS Commands Optional 1: Configure by Computer to set GPS tracker online This part shows the basics of how to use the GPS tracker Parameter Editor.
  • Page 8 The USB port is virtual comm. Port (com3) in this example, 3. Open the GPS Tracker Parameter Editor ① Connect MT01 with PC by the configuration cable ② Confirm MT01is in the Power Off states ③ Double click GPS Tracker Parameter Editor.exe and Select the COM Port, following picture...
  • Page 9 4. Click Start button to open the COM port, 5. Turn on MT01 and it will connect with the Editor automatic, As soon as they connect successful, all the buttons are availability and the status bar will clue on’ Tracker Connect!’ , first click “Read”...
  • Page 10 Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 Instruction of parameter settings: Item Description GPRS Tick to enable GPRS function, select TCP or UDP mode...
  • Page 11 To set Mobile phone No. for SMS or Calling when Button Button C/IN3 C/Input 3 is triggered (alarm), it will call/SMS to this phone After write finished, click “Write” button to configure the MT01’s Parameters. It will pop-up a mini window, as below pictures: - 11 -...

  • Page 12: Optional 2: Sms Commands To Set Gps Tracker Online

    Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 Please click “Read” button again, confirm your write parameter. When you finished the GPS Tracker Parameter Editor, then turn off the tracker, pull up the USB cable.

  • Page 13: Installation

    Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 Description: APN name, APN username, APN password If no password required, just put in APN name only.

  • Page 14: Install I/O Cable

    Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 7.1 Install I/O Cable The I/O cable is a 6-pin cable including power, negative/positive input and output.

  • Page 15: Power/Gnd

    Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 PIN Number Color Description Input 1/SOS White wire Digital Input 1 (negative triggering), E.g. connect SOS panic...

  • Page 16: Digital Input 4

    Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 7.3 Digital Input 4 Example: Detecting vehicle engine on/off status 7.4 Output 1 Example: Control fuel-cut - 16 -...

  • Page 17: Install Gps/Gsm Antenna

    Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 7.5 Install GPS/GSM Antenna GSM & GPS are built-in antenna, do not need to install. Note: Do not shield or cover the GPS Antenna with any objects containing metal 8.

  • Page 18: Set Receiving Physical Address Name Via Sms

    Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 8.2 Set receiving physical address name via SMS Description: To know specific address of device, send an SMS and you receive an SMS with its location physical address name.

  • Page 19: Set Over Speed Alarm

    Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 If the output1 is connect to oil-cut relay, this command is to enable the engine-cut function, the engine oil pump line will be cut-off to immobilize the vehicle.

  • Page 20: Troubleshooting

    Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 Accessories IMAGE FUNCTION Main unit 1 piece MT01’s function Relay 1 piece To cut-off/restore the power/fuel supply...

  • Page 21: Appendix 1 Configure By Computer

    Unit is sleeping Cancel sleeping mode Wrong password in your SMS Insert the correct password The SIM in MT01 has run out of credit Replace or top up the SIM card No SIM card Insert working SIM card. Check in phone that the SIM can send SMS messages.

  • Page 22: Appendix 2: Command List

    Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 Password To set SMS command password, the default is 000000, Over Speed To set speed limit for over speed alarm...
  • Page 23 XX (set distance from current central point place ) =00, disable =01, 30m =02, 50m =03, 100m =04, 200m =05, 300m =06, 500m =07, 1000m =08, 2000m Extend Settings W******,008,ABCDEF A=0, disable position report function GHIJ### when a call is made to MT01 - 23 -...
  • Page 24 Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 A=1, enable position report function to get position SMS by Calling MT01 I=0, disable power failure alert I=1, enable power failure alert functions BCDEFGHJ remained for furthur use.
  • Page 25 Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 Set Time Interval for W******,014,XXXXX XXXXX should be in five Sending GPRS Packet digitals and in unit of 10 seconds.
  • Page 26 Guangzhou Topshine Information Technic Co., LTD Address: RM 605, #52 SHUI YIN RD, YUE XIU DIST, GUANGZHOU, CHINA User manual of tracker MT01 +120 or 120 is acceptable. -, required for those behind GMT. For example, -120. Set character for SOS alert W******,033,P,Char Char P is the button number.
