  • Page 1 User Manual of MT08B Bluetooth GPS Tracker User Manual (Model: MT08B) Please Read Carefully Before Operation - 1 -...
  • Page 2 User Manual of MT08B - 2 -...

  • Page 3: Table Of Contents

    8.5 How to set android authorized Bluetooth address.............. 20 8.6 How to set the Iphone Bluetooth address................21 8.7 Driver ID identify function....................21 9. Set tracker on Topshine GPRS01 Platform...................22 Add a new team..........................22 Add a new vehicle..........................26 10.

  • Page 4: Product Overview

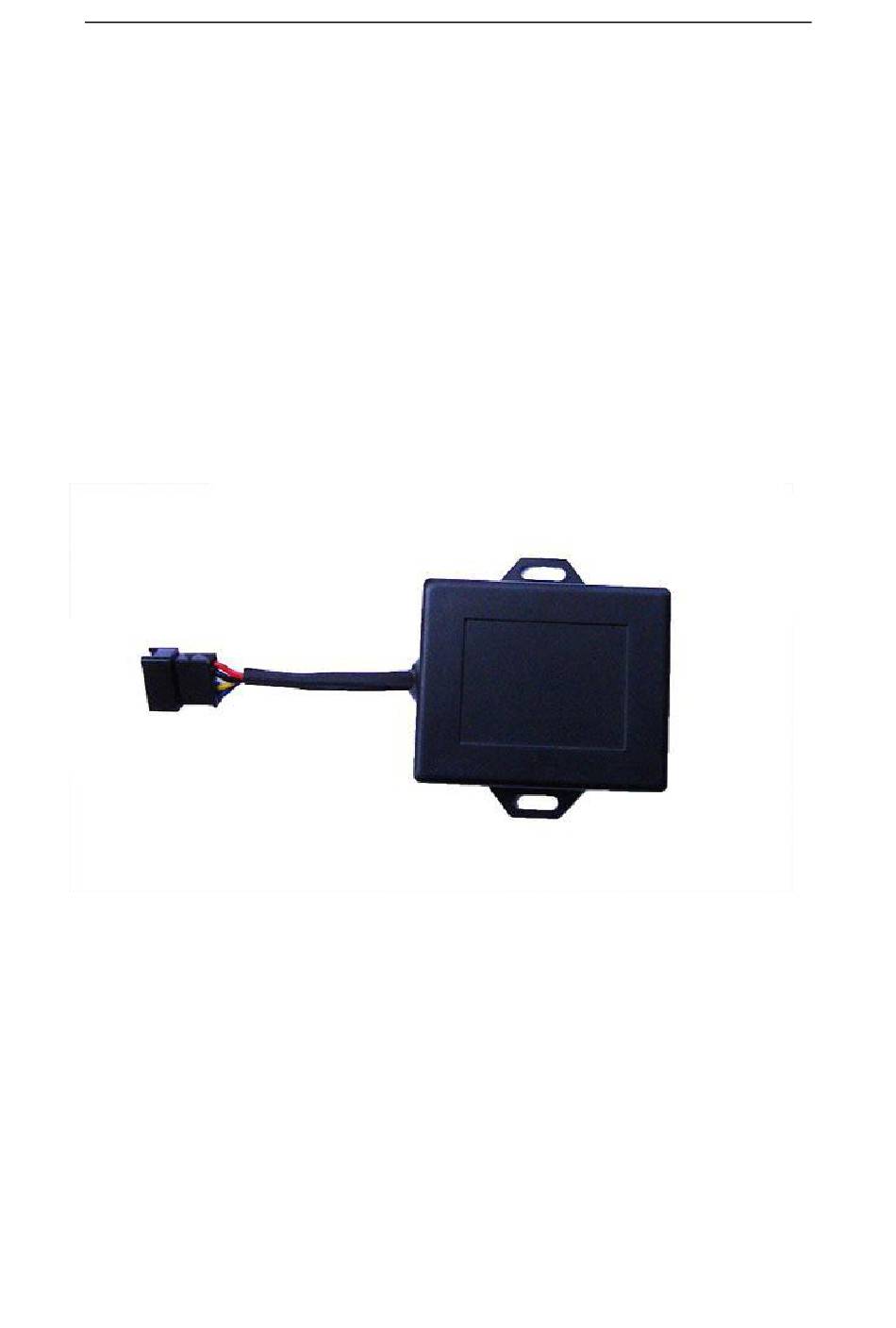

    User Manual of MT08B 1. Product Overview MT08B is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. It have built in Bluetooth module which can achieve smart car alarm and driver ID identify. Mini size, built-in antenna and...

  • Page 5: Specifications

    User Manual of MT08B Power failure/low power alert Doors detection (optional) SOS Panic button, SOS alert (optional) Accident alarm (need crash sensor support) (optional) Wiretapping/remote listening (optional) 4. Specifications Items Specifications Dimension 60*50*22mm Weight Input voltage DC 9V~24V/1.5A Back-up Battery 350mAh/3.7V...

  • Page 6: Charging

    5.2 Charging Connect the device with external power like car battery, LED light will flashing. 5.3 LED indications Push the power switch to turn on/off MT08B GPS LED (Red) Flashing (every 0.1 second) Initializing or back-up battery power is Flashing (0.1 second on and 2.9 seconds...

  • Page 7: Power/Gnd

    User Manual of MT08B 5.4 Power/GND Connect GND (Black) and power (Red) wires to the battery of vehicle. 5.5 ACC Detection Example: Detecting vehicle engine on/off status 5.6 Control fuel-cut (Output1 ) - 7 -...

  • Page 8: Antenna

    User Manual of MT08B 5.7 Antenna GSM & GPS are built-in antenna, do not need to install. Note: Do not shield or cover the GPS Antenna with any objects containing metal 6. Installation  Please select experienced technicians to install this system.
  • Page 9 User Manual of MT08B PIN Number Color Description Input 1/Input 2 White wire Digital Input 1 (negative triggering), E.g. connect SOS button or door detection Input 4/AD Blue wire Digital Input 4 (positive triggering), e.g. detecting the ACC or fuel monitoring Output 1 Yellow wire Output1.

  • Page 10: Standard/Optional Accessories Of Gps Tracker Mt08

    User Manual of MT08B 6.2 Standard/Optional accessories of GPS tracker MT08 Accessories IMAGE FUNCTION Main unit 1 piece MT08’s function Mainly used 5 PIN wire 1 piece connect vehicle Optional Image Function Accessories Relay To cut-off/restore the power/fuel supply Microphone...

  • Page 11: Sms Command Of Tracker Mt08

    User Manual of MT08B For Motorcycle: 7. SMS command of tracker MT08 - 11 -...
  • Page 12 User Manual of MT08B Check current parameters ① Command: Tracker will reply message: 000000;68995039891033;internet;www.track-car.com,9700;TCP;00001;00006; Explain: 000000 is tracker’s password 68995039891033 is tracker ID internet is APN www.track-car.com is IP 9700 is port TCP is GPRS 00001 is time interval of engine off...
  • Page 13 User Manual of MT08B SMS send: W000000,012,www.track-car.com,9700 Tracker will reply message: Set ok. Enable GPRS Function ⑥ W000000,013,X Command: Description: X=0,close GPRS(Default) X=1,enable TCP X=2,enable UDP Set Time Interval for Sending GPRS Packet ⑦ Command: W000000,014,XXXXX Command: W000000,044,XXXXX (Noted: 014 command is the time interval of engine off, 044 command is the time interval of engine on.)

  • Page 14: Extend Sms Command

    User Manual of MT08B P is the button number and should be 1,or 2, or 3. If SOS button is linked to IN1, then P=1. T: Preset phone number (T must be less than 16 digits) T1: When no T2, T1 for short message number or dial the number; when have T2, T1 for message number.

  • Page 15: Simplified Sms Command

    User Manual of MT08B Extend Settings W******,008,ABCDEF A=0, disable position report function when a GHIJ### call is made to VT1000 A=1, enable position report function to get position SMS by Calling VT1000 I=0, disable power failure alert I=1, enable power failure alert...
  • Page 16 User Manual of MT08B SMS Command: 000000MAP For example: Send SMS: 000000MAP Then you will get the SMS as below picture: Note: By click the link, you can get the location in Google map from your mobile phone. ○ 3 Position Report Description: To know the position of your car, send an SMS or make a telephone call directly to the device and you will receive an SMS with its location and other information.

  • Page 17: Set Time Zone Via Tracking Platform

    User Manual of MT08B ○ 4 Engine Stop/Vehicle Immobilize SMS command: 000000STP ○ 5 Engine Restore: SMS command: 000000RES 7.3 Set time zone via tracking platform vehicle control --> send command --> --> select vehicle --> choose time zone command --> write time zone value -- > click “ ok”...
  • Page 18 User Manual of MT08B Don’t need to install any APP on phone. After setting the authorized Bluetooth, if the Bluetooth of phone from driver is paired by the disarmed, and you can start the engine and open the car GPS tracker, then the vehicle is door normally.

  • Page 19: Enable Bluetooth Function

    User Manual of MT08B 8.2 Enable Bluetooth function Enable tracker Bluetooth: W000000,062,1 Disable tracker Bluetooth: W000000,062,0 Default setting is disable Bluetooth function. 8.3 Enable / disable immobilizing the car Enable immobilizing the car when start engine or open the door illegally,...

  • Page 20: How To Set Android Authorized Bluetooth Address

    User Manual of MT08B 3.1 set mobile phone number for alarm notification Command：W000000,003,F,P,T1,T2 F=0, disable this function F=1, only sending SMS F=2, only calling the preset phone numbers F=3, both SMS and call (default) P is the type of alert, P=1 is Input 1 alert, P=2 is input 2 alert and P=3 is input 3 alert.

  • Page 21: How To Set The Iphone Bluetooth Address

    User Manual of MT08B If you want to change the tracker ID, please send below SMS command W000000,010,XXXXXX Note: XXXXX are your new tracker ID number, it should less than 15 digits. 8.6 How to set the Iphone Bluetooth address 8.5.1 Find the Bluetooth address code in Iphone system...

  • Page 22: Set Tracker On Topshine Gprs01 Platform

    User Manual of MT08B 9. Set tracker on Topshine GPRS01 Platform ① Login Topshine GPRS01 Platform (Ask sales person to create one tracking account) Website: www.track-car.com Phone link: www.track-car.com/m User Name: *** Password: *** Note: Red box means the vehicle Online;...
  • Page 23 User Manual of MT08B Click Team Management under Vehicle Manage. Click New. - 23 -...
  • Page 24 User Manual of MT08B Put in Team Name and click Select Company. Find a company and double click to finish choosing. The chosen company will be showed in the blank. - 24 -...
  • Page 25 User Manual of MT08B Decide how many vehicles you will add under this Team and put it in Max Count. Click Save it will show Operation Success! Important Notes: After a period of time, if you want to continue to add more vehicles into this Team, remember to add the number of new vehicles which you want to add to the max count.

  • Page 26: Add A New Vehicle

    User Manual of MT08B Add a new vehicle The parts in the three circles parts are must part you need to put. - 26 -...
  • Page 27 User Manual of MT08B 1. Click Vehicle Management and click New - 27 -...
  • Page 28 User Manual of MT08B 2. Put in Imei No.. The Imei No. = Tracker ID 2. Put Vehicle License Plate Number in Plate. 3. Click Select Team to choose a team you have added. - 28 -...
  • Page 29 User Manual of MT08B After choose the team, it will show in the blank. Choose corresponding device model from Protocol drop-down list. Here we choose VT1000. 6. Choose map. If your country is in the drop-down list, please choose it.
  • Page 30 User Manual of MT08B automatically in Main Track and History. 1. Choose a vehicle icon. Pull the scroll bar to find the icon you like. Double click to finish choosing - 30 -...
  • Page 31 User Manual of MT08B Other information, you can finish according to your information. Click Save to finish adding new vehicle. - 31 -...
  • Page 32 User Manual of MT08B Enter Mobile Android Tracking APP 1) Enter web base tracking platform (www.track-car.com), scan QR code to download “ android APP” - 32 -...

  • Page 33: Gprs Command From Platform To Gps Tracker

    User Manual of MT08B 10. GPRS Command From platform to GPS Tracker 1. 4101 Request one single location report 2. 4102 Set time interval for continuous tracking 3. 4103 Set authorized phone number 4. 4105 Set speed limit for over speed alarm 5.
  • Page 34 User Manual of MT08B Wrong password in your SMS Insert the correct password The SIM in GT103 has run out of credit Replace or top up the SIM card No SIM card Insert working SIM card. Check in phone that the SIM can send SMS messages.
