- Page 1 User Manual of Personal Tracker PT90 GPS Personal Tracker User Manual (Model: PT90) Please Read Carefully Before Operation - 1 -...
-
Page 2: Table Of Contents
5.1 Install SIM Card--------------------------------------------------------------------------------------4 5.2 Charging-----------------------------------------------------------------------------------------------5 5.3 LED indications---------------------------------------------------------------------------------------5 6. Connect the tracker PT90 to GPRS01 Web Server Platform-----------------------------------------6 Optional 1: Configure by Computer to set GPS tracker online--------------------------------------6 Optional 2: SMS Commands to set GPS tracker online---------------------------------------------11 Settings on Topshine GPRS01 Platform---------------------------------------------------------------12... -
Page 3: Product Overview

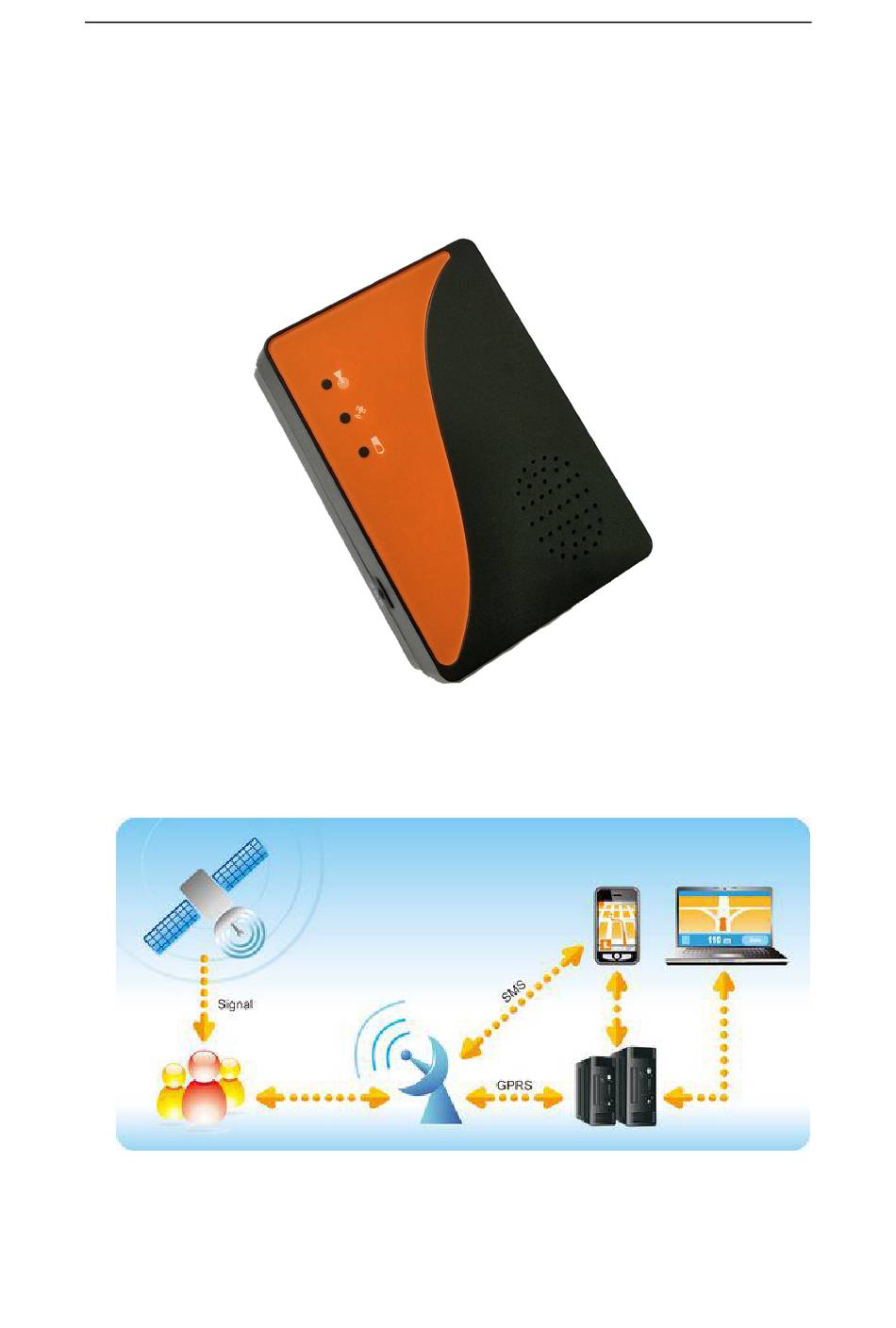

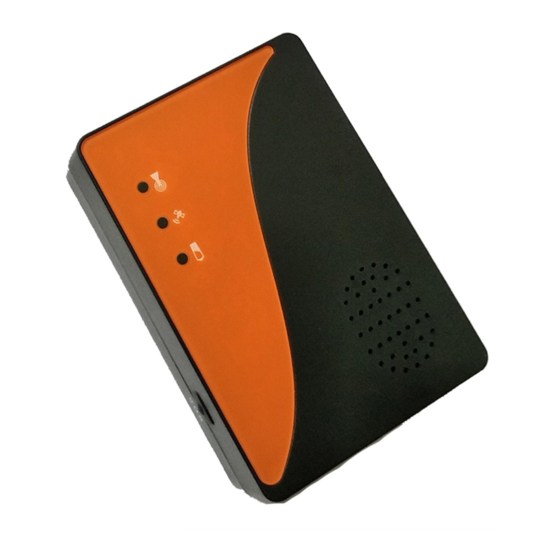

User Manual of Personal Tracker PT90 1. Product Overview PT90 is a personal remote position device, small size, build-in battery, easy to use. it can be used as an emergency cellular phone and locator. It allows speed dialing of 3 numbers for 2-way voice conversation. -
Page 4: Specifications
User Manual of Personal Tracker PT90 4. Specifications Items Specifications Dimension 60*43*25mm Weight Input voltage DC 4.5V~5.5V/400mA (mini USB port) Back-up Battery 2000mAh/3.7V Power Consumption 65mA standby current Operating Temperature -20°C~75°C Humidity 5%~95% Work Time 30 hours in power-saving mode and 19 hours in normal mode... -
Page 5: Connect The Tracker Pt90 To Gprs01 Web Server Platform
SMS to the preprogrammed phone number. Press it to reject a call, cancel calling or complete a conversation. 6. Connect the tracker PT90 to GPRS01 Web Server Platform Two Methods to set GPS tracker online: Configure by Computer or SMS Commands Optional 1: Configure by Computer to set GPS tracker online This part shows the basics of how to use the GPS tracker Parameter Editor. - Page 6 The USB port is virtual comm. Port (com3) in this example, 3. Open the GPS Tracker Parameter Editor ① Connect PT90 with PC by the configuration cable ② Confirm PT90 is in the Power Off states ③ Double click GPS Tracker Parameter Editor.exe and Select the COM Port, following picture...
- Page 7 4. Click Start button to open the COM port, 5. Turn on PT90 and it will connect with the Editor automatic, As soon as they connect successful, all the buttons are availability and the status bar will clue on’ Tracker Connect!’ , (PT90 lights is bright but no flash).
- Page 8 User Manual of Personal Tracker PT90 Instruction of parameter settings: Item Description GPRS Tick to enable GPRS function, select TCP or UDP mode Tracker ID Should be unique, in number, maximum 14 digits APN, Account, Put your local APN, APN username and password if necessary...
- Page 9 User Manual of Personal Tracker PT90 Tracker ID: You should change the tracker ID. Tracker ID can be set freely by user but less than 14 digits, such as 20131122001. Item Description SMS Call To set Mobile phone No. for SMS or Calling when SOS...
-
Page 10: Optional 2: Sms Commands To Set Gps Tracker Online
XXXXX =00000, to disable this function XXXXX =00001~65535, time interval for sending GPRS packet and in unit of 10 seconds Note: More GPRS01 Platform functions please check manual of Operation Instruction of Topshine web-based tracking platform GPRS01. - 10 -... -
Page 11: Settings On Topshine Gprs01 Platform
User Manual of Personal Tracker PT90 Next Step: Settings on Topshine GPRS01 Platform Turn on the tracker PT30, when it normal working (find the GSM & GPS signal), ① Login Topshine GPRS01 Platform Website: www.track-car.com User Name: *** Password: *** Note: Red box means the person Online;... - Page 12 User Manual of Personal Tracker PT90 Picture 2 Click the company name, e.g. in picture below: Click , then you can see picture below: - 12 -...
- Page 13 User Manual of Personal Tracker PT90 Input ‘demo123’ in the blank of Group Name Click ，then group ‘demo123’ is ready as below: ④ Set up information for a new person e.g. ‘Benz123’ Click the group name , and click , then you can see...
- Page 14 User Manual of Personal Tracker PT90 Input the correct Kind, GPRS ID and Plate No. and Customize Mark etc. necessary information, then click ,then you can see group ‘demo-device’ and Personal tracker ‘Personal tracker’ with tracker ID:20131119001 have been set ready as below.
-
Page 15: Basic Sms Commands
User Manual of Personal Tracker PT90 Once again into the main interface, select the little red box, you will see the tracker location. As following picture: 7. Basic SMS Commands: Note: ①The default password is 000000, you should change the password when use the device. -
Page 16: Set Receiving Physical Address Name Via Sms
User Manual of Personal Tracker PT90 59.31E latitude means North; “E” in longitude means East. Speed=0.00Km/h Speed information Odometer=0.013km/h Odometer information 2012-09-23,11:22 Date and time You can copy this coordinate get from the SMS into http//:maps.google.com and see its location as picture: 7.2 Set receiving physical address name via SMS... -
Page 17: Two Way Communication
User Manual of Personal Tracker PT90 Example: SMS send: W000000,005,10 SMS receive: SET OK! SPEED LIMIT:100Km/h Meaning: If your speed is over 100Km/h, an alarm SMS will send to your phone to warn you. 7.5 Two way communication Description: Call the device’s phone number, press the SOS button, it will automatically answer the phone, insert the earphone, realize two way communication.. -
Page 18: Troubleshooting
User Manual of Personal Tracker PT90 Note: More SMS Commands, please check Appendix 2: Command List Item Description SMS tracking No. Interval To put a mobile phone number for automatic tracking by SMS at certain time interval in minutes Password... -
Page 19: Appendix 1 Configure By Computer
User Manual of Personal Tracker PT90 Wrong password in your SMS Insert the correct password The SIM in PT90 has run out of credit Replace or top up the SIM card No SIM card Insert working SIM card. Check in phone that the SIM can send SMS messages. -
Page 20: Appendix 2: Command List
User Manual of Personal Tracker PT90 Appendix 2: Command List Description Command Remarks Get current location W******,000 Get current location of PT30 location W******,100 http://maps.google.com/map Google s?f=q&hl=en&q=22.542563 format via SMS ,114.077971&ie=UTF8&z= 16&iwloc=addr&om=1 Change user’s W******,001,###### ****** is old password password... - Page 21 User Manual of Personal Tracker PT90 one Geo-fence SMS =04, 200m to the =05, 300m SOS preset number. =06, 500m =07, 1000m =08, 2000m Extend Settings W******,008,ABCDEF A=0, disable position report function GHIJ### when a call is made to PT30...
- Page 22 User Manual of Personal Tracker PT90 Presetting by SMS for GPRS tracking Set ID for PT30 by SMS W******,010,ID Tracker ID must be less than 14 digits Set APN by SMS W******,011,APN,APN APN Name, APN Password If Name, APN Password...
- Page 23 User Manual of Personal Tracker PT90 sending out message until it is Example: activated by an SMS or an If XX=10, PT30 will enter incoming call) power saving mode in 10 minutes after it is immobile. Set phone number for...
- Page 24 User Manual of Personal Tracker PT90 number number of current firmware Get IMEI No. W******,601 To get device IMEI No. Reboot GPS and GSM Module W******,900### ### is the ending character. Initialization W******,990,099### ### is the ending character. To turn all the parameters /...
