1.1.2.2. Setting Up Work Space

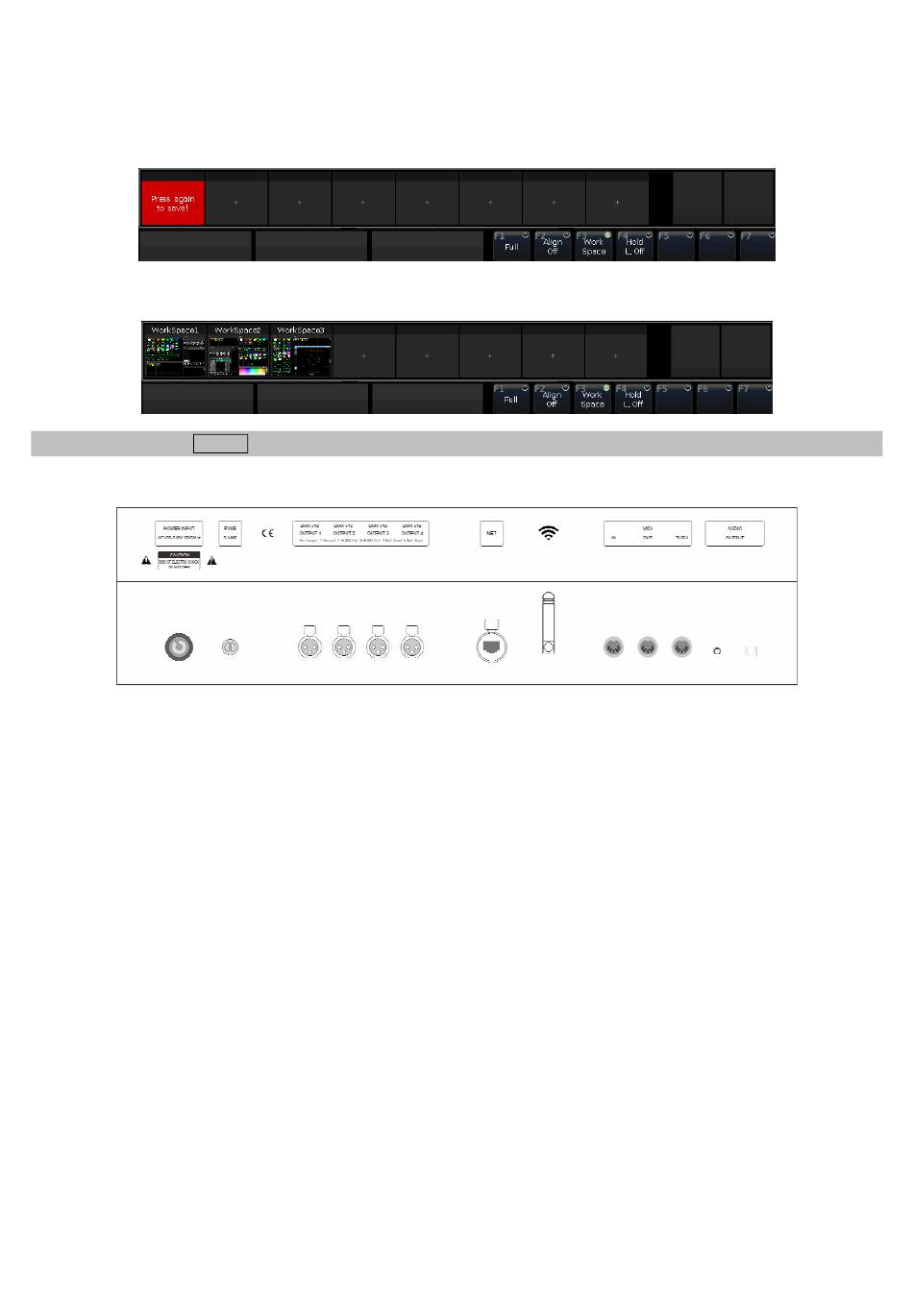

You can use the [Work Space] function to save different combinations for working windows, which can be switched
quickly when using.
1> Press key [Work Space] when finished setting up windows combinations on the screen;
2> Select an empty grid in the pop-up window;
3> Select the grid with highlight words 'Press again to save', to save the combination of workspace windows;
4> Press the saved backup to easily switch between different combinations of workspace windows.
Note: Please use the Delete key to delete the old backup first if you want to renew the backup of the workspace.

1.2. The Rear Panel

Audio Output --- one 3.5mm audio interface and one audio-optical interface allow you to connect with the audio
device.
MIDI Interface --- there are 3 MIDI interfaces, the 'In', 'Out', and 'Thru' for connecting with other MIDI devices.
Art-Net Interface --- offers network function to transmit maximums 2048 DMX channels under Ethernet protocol
over the Art-Net/DMX converter.
Wireless antenna --- provides WIFI signal for connecting App on mobile or tablet.
DMX Universes --- there are 4 DMX universes that sending out 512 DMX channels per output.
Power Supply --- the power supply offers quite a wide voltage range (100-240V AC, 50-60Hz). Thus, it can be used
worldwide. If you need to change the fuse, please cut off the power supply for safety operation.
