TLW K01-0102 Installation Manual

Product Name: Galaxy IP44 Rated COB LED Cabinet Light 2.6W
With Round Surface Mounting Spacer
Product Code: K01-0102

Kit Contents

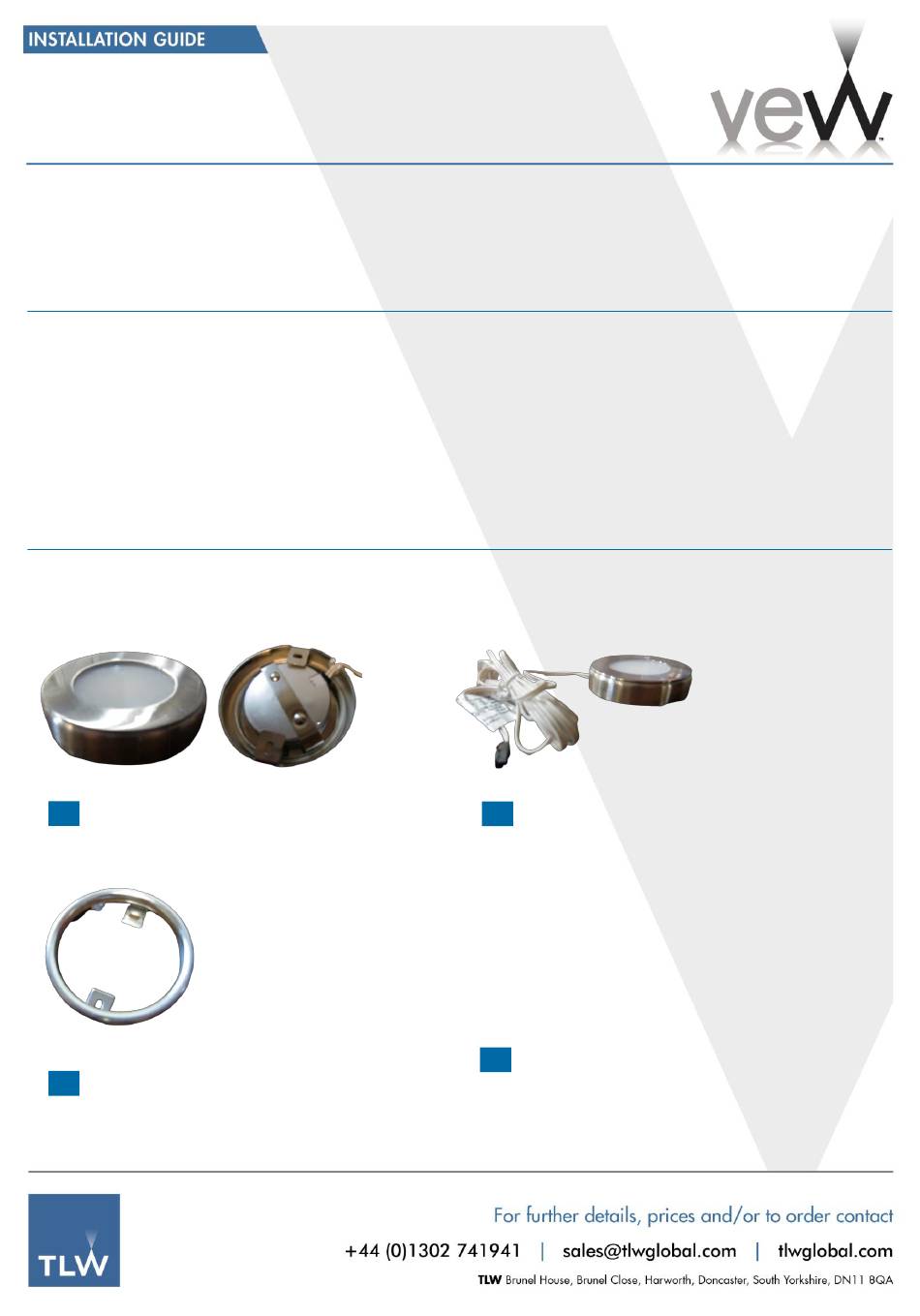

LED cabinet light with micro connector
▪
Round surface mounting spacer
▪
Screws for surface mounting spacer
▪

Important Safety Information

The rated inputting voltage must be 9 -16V DC. You should use a driver to convert the mains voltage to e 9-
16V DC.
The luminaire shall under no circumstances be covered with insulating material.
During normal use, the object lighted muse not exceed a temperature of 95ºC.
Installation should be carried out by a qualified electrician.
This product may contain substances that can be hazardous to the environment if not disposed of properly.
Electrical and electronic equipment should never be disposed of with household waste.

Installation

1
Cut out diameter is 56mm for cabinet
light.
3
Fix the round surface spacer B (see
diagram) on the mounting surface by
two screws.
If you are putting the cable through the
2
mounting surface, a 8mm diameter hole
is required for the plug and cable.
Alternatively you can use the cable groove
to surface mount the cable.
4 Lead the cable through the hole or
groove and fix the K01-0100 C into
the round surface spacer B (see
diagram).
