1、Introduction
Thank you for your choose and buy the Nanfone CB Radio. In order
to make your CB Radio to use in the best condition, please read this

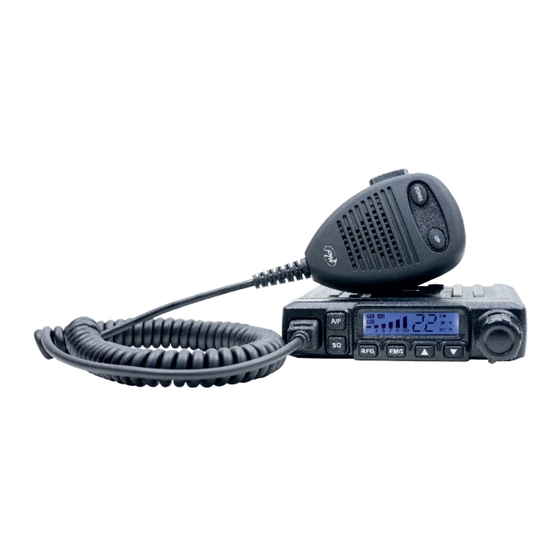

manual in detail.PNI Escort HP 6500 is a small, simple
and convenient vehicle CB Radio which has good
performance.
Feature：
Up/down keys on the microphone
Scan channel
LCD display
Auto ASQ/SQ adjustable
RF GAIN
External Speaker
2、Installation instructions
Check the materials before the installation, car charger is
connected to the car's 12 v power supply socket， the radio's positive
and negative electrode connected to the car charger's. Power
supply support 12 V to 13.8 V. Check all wiring are in good condition
before starting, ensure do not short circuit, ensure the radio can
boot running normally.
User Manual
Advertisement
Table of Contents
Related Manuals for PNI Escort HP 6500
Summary of Contents for PNI Escort HP 6500
- Page 1 Thank you for your choose and buy the Nanfone CB Radio. In order to make your CB Radio to use in the best condition, please read this manual in detail.PNI Escort HP 6500 is a small, simple operation and convenient vehicle CB Radio which has good performance.
- Page 2 3、Control panel function Front view Short Press Long Press Name Function Function Microphone ① socket AM/FM Mode Scan Function ② Switch LCD Display ③ Power On/Off ④ Volume...
- Page 3 Channel ⑤ UP/DOWN 、 select ⑥ EMG(Emergen 9/19 Channel ⑦ cy Channel ） Switch Enter RF GAIN ⑧ Model SQ/ASQ Enter SQ (ASQ) Switch To ASQ ⑨ Function Switch Level Switch Mode 4、Operation 4.1 Power On/Off the radio 1. Turn VOL switch clockwise to power on the radio, the LCD full screen display after spectrum model 1 s into the channel state.
- Page 4 2.Hold microphone 【UP】or【DOWN】to change working channel fast. 4.4 Squelch level control 1.Shortly press 【SQ】 ,until LCD shortly displays SQ and then display X.X。X.X stands for the SQ level SQ off Lowest SQ level … … Highest SQ level 2.Press microphone【UP】/【DOWN】shortly to change SQ level.
- Page 5 2. Shortly press microphone【UP】/【DOWN】to change ASQ level. 3. Hold microphone【UP】/【DOWN】to change ASQ level fast. 4. Hold【SQ】or wait for 3 seconds to store and exit. 4.6 Modulation Type Shortly press【A/F】key to switch between AM/FM mode and the LCD displays the selected mode. 4.7 RF GAIN control 1.Shortly press【RFG】key，LCD displays R and the present RF GAIN level flashes.
- Page 6 4.9 Key Lock 1.Hold【EMG】key for over 2 seconds to lock the keys, LCD displays “LC”. 2.Hold【EMG】for over 2 seconds again to unlock the keys, LCD displays “OF”. 4.10 Scan Function 1.Hold【A/F】to start scan function，LCD displays“SC”. 2.Press microphone【UP】/【DOWN】can choose scanning clockwise or counterclockwise. 3.Press【A/F】or【PTT】key to exit scan function.
- Page 7 40FM/40AM 26.960-27.400MHZ 34FM/34AM 26.965-26.865MHZ 40FM/40AM 26.965-27.405MHZ 80FM 26.565-26.955MHZ 27FM/27AM 26.965-27.275MHZ 4.12 Restore factory default 1.Hold【SQ】key while powering the radio on, until the LCD displays “rt”. 2. All channel and function setting will resume factory default after above operation. FCC Statement: This device complies with part 15 of the FCC Rules.
