1.17

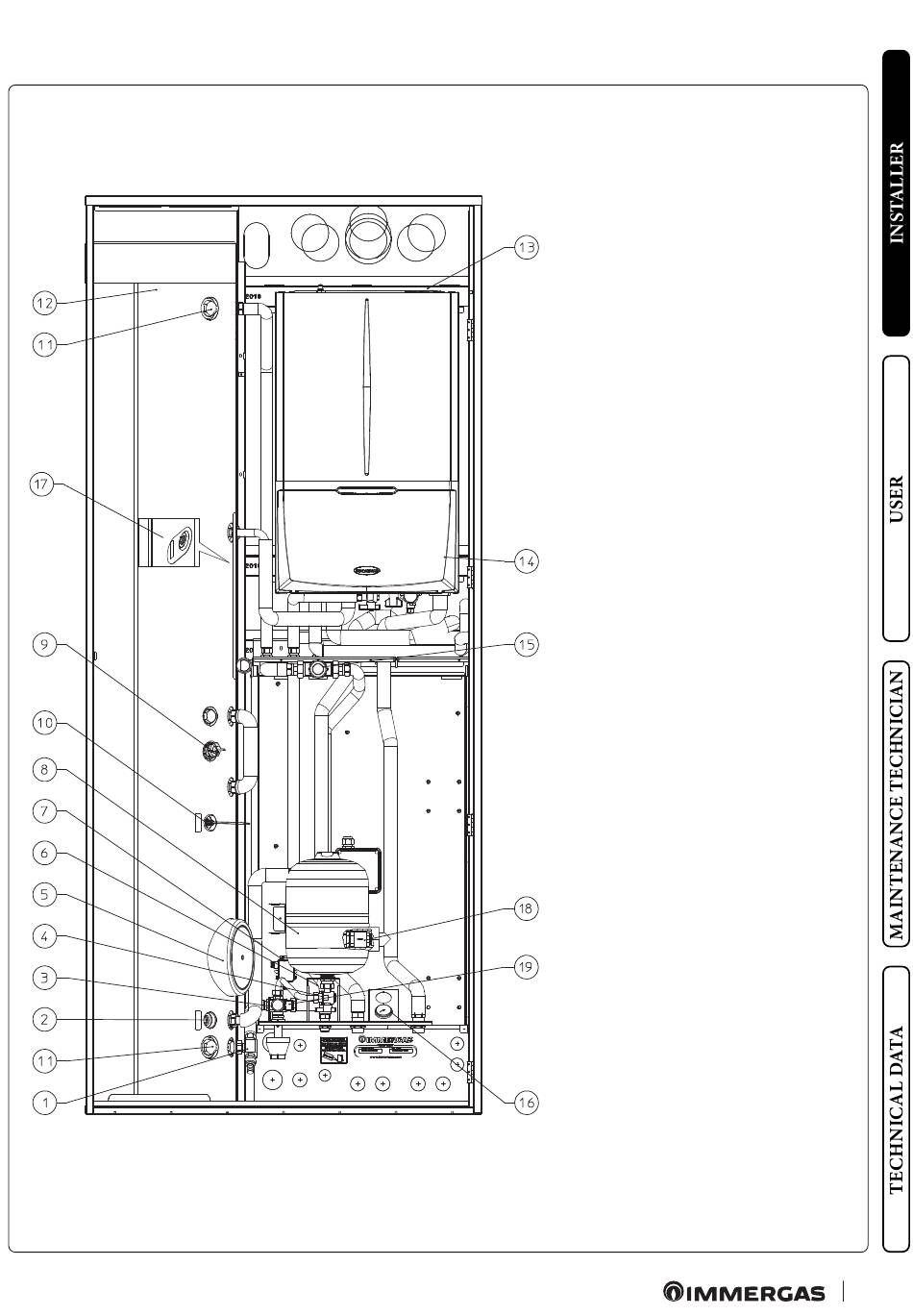

MAIN COMPONENTS BASIC MAGIS PRO WITH MAGIS PRO V2 (OPTIONAL)
Key:
1 - Storage tank unit draining tap
2 - Solar probe (optional)
3 - 8 bar safety valve
4 - DHW (Domestic hot water) vessel
interception cock
5 - Storage tank unit flange
6 - Antifreeze thermostat
7 - Antifreeze kit connection box
8 - 8 l domestic hot water expansion
vessel
9 - 1.5 kW Domestic hot water inte-
grative electric resistance
(optional)
10 - DHW probe
11 - Sacrificial anode
12 - Storage tank unit
13 - 3 kW system integrative electric
resistance (optional)
14 - Magis Pro V2 Indoor Unit
15 - DHW circuit mixing
valve
16 - Zone 2 flow temperature thermom-
eter (direct zone)
17 - DHW probe
(with DHW electrical resistance)
18 - By-pass
19 - One-way valve
N.B.: in the presence of DHW (Domestic
hot water) electrical resistance, position
the probe as indicated in point 17.
47
99
