Installation operations in Domus Container.
Before starting the installation of the product, it is necessary to
completely open the "Domus Container" disassemble the front
door (A) and the fixed casing (B) by unscrewing the appropriate

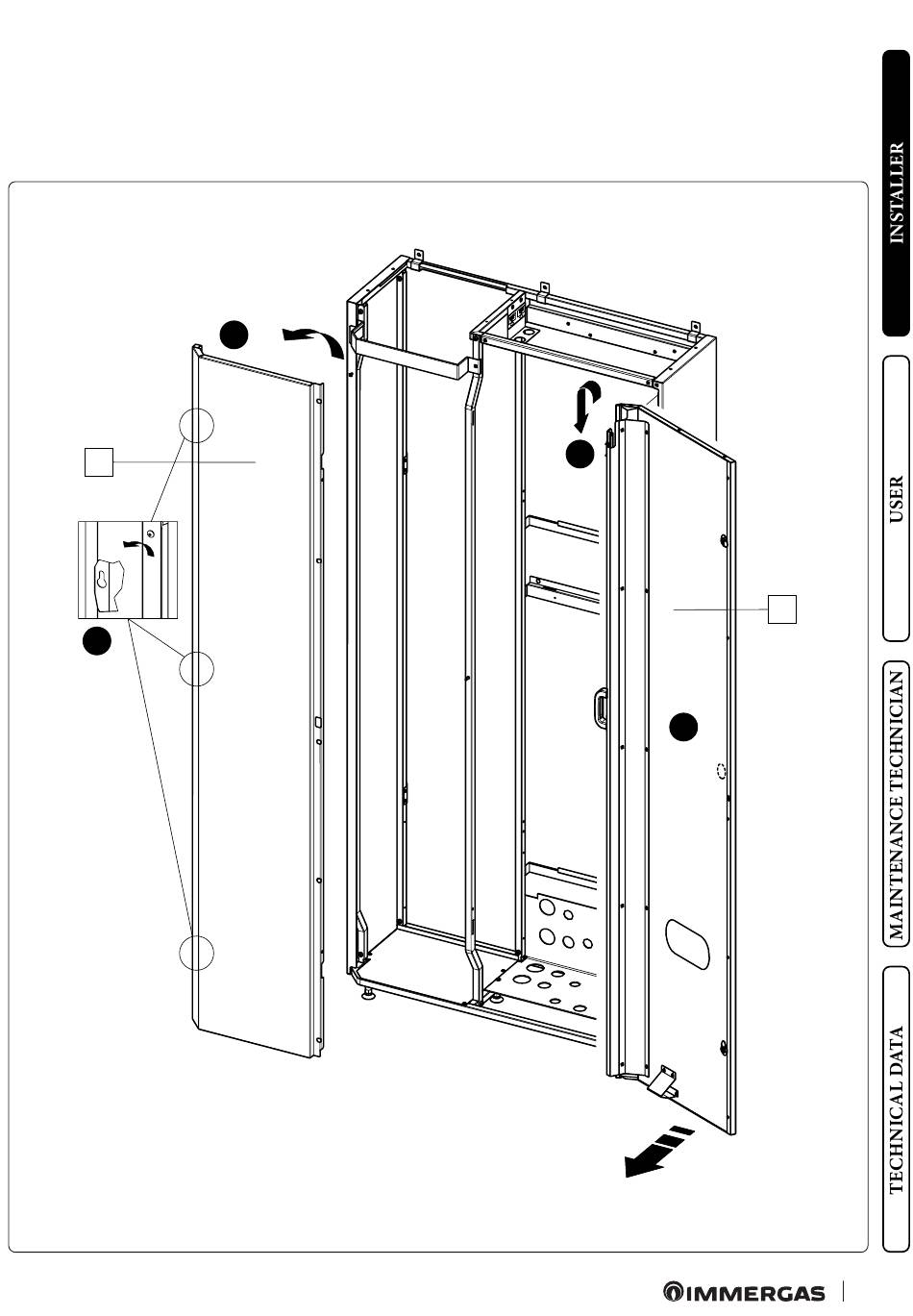

fixing screws (Fig. 26).
B
3
4
Temporarily remove the front plate of the appliance (C), the front
plate of the storage tank unit (D) and the front tube (E) (Fig. 27).
2
26
A
1
83
