Summary of Contents for infaco PW3

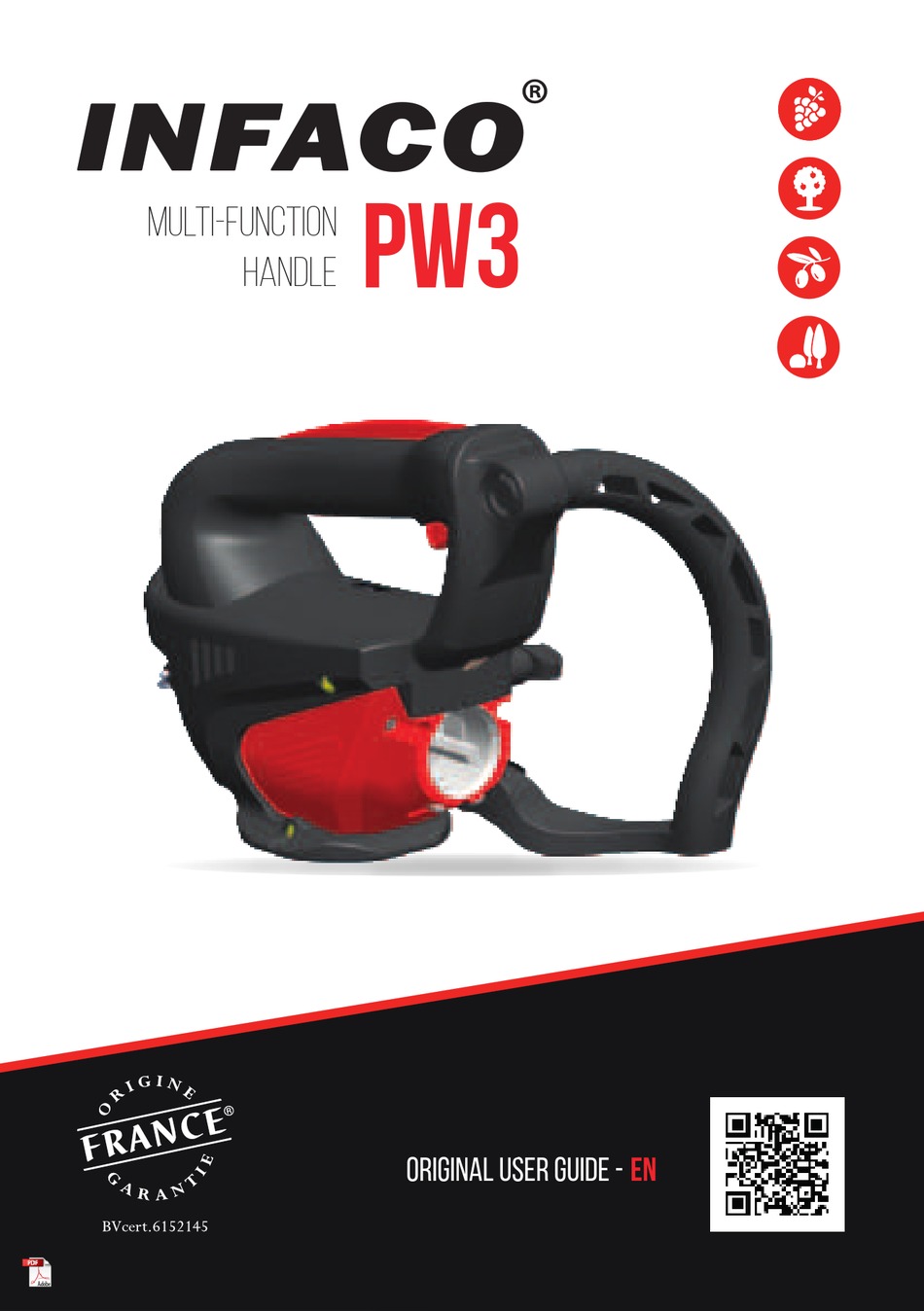

- Page 1 multi-function handle Original user guide -...
-
Page 2: Table Of Contents
PW3, a multi-function handle Compatible tools Precautions before use Personal protection equipment Protection of the environment General product view Specifications Compatible batteries User guide Tool gap adjustment User interface Precautions for use and safety Servicing and maintenance Safety instruction... - Page 3 Hand tools + TR9 + SC160P3 + PWMP3 + THD600P3 + THD700P3 + PWP36RB Pole tools + PW930P3 + PW930P3 + PW930P3 + PW930P3 SC160P3 + TR9 + THD600P3 + THD700P3 + PB100P3 (hoeing) PB150P3 (hoeing)
-
Page 4: Compatible Tools
compatible tools Reference Description THD600P3 Double hedge-trimmer, blade length 600mm. THD700P3 Double hedge-trimmer, blade length 700mm. Arborists chainsaw, maximum cutting capacity Ø150mm. SC160P3 Saw head, max cutting capacity Ø100mm. PW930p3 Carbon extension, length 930mm. Pw1830p3 Carbon extension, length 1830mm. PWT1650p3 Carbon extension, length 1650mm. -
Page 5: Precautions Before Use
> Power tools must not be disposed of with household refuse. > The device, accessories and packaging must be taken to a recycling centre. > Ask the approved INFACO dealer for up-to-date information on the eco- compatible elimination of waste. -

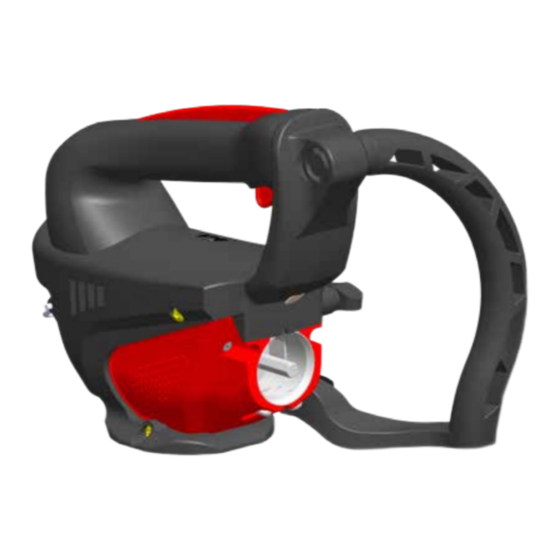

Page 6: General Product View
general product view motorised handle PW205P Lateral handle B400G Powercoup grease Box contents EP20L protection glasses Manual Operating trigger Safety trigger Tightening screw Shock Indicator / LED absorber Hooking ring Power supply socket Ventilation grid Removable handle specifications Reference 48VCC Power supply 260W to 1300W Power... -
Page 7: Compatible Batteries
compatible batteries Batterie 820Wh L850B Compatibilité câble L856CC 120Wh battery 831B Cable compatibility 825S 500Wh battery L810B Cable compatibility PW225S 150Wh battery 731B Cable compatibility PW225S (requires fuse replacement by 539F20). -
Page 8: User Guide
Installation and connection Only use INFACO brand batteries with a 48 Volt power supply. Any use with batteries other than INFACO batteries may lead to damage. The warranty on the motorized handle will be void if batteries other than those manufactured by INFACO are used. - Page 9 Using the machine > Fit the tool onto the handle > Check that the tool is properly inserted all the way in > Tighten the wing nut...
- Page 10 > Connect the power cable > Connect the battery > First power up & Exit from standby mode 2 short presses on the trigger ON > Starting up > Stop Press the trigger ON Release the trigger OFF...
-
Page 11: Tool Gap Adjustment
It is imperative to disconnect the machine. Do not connect the PW3 handle to the pole. > Check the tightening by exerting an alternative pressure. No movements GAP OK No movements GAP OK ADJUST ADJUST Presence of movements... -
Page 12: User Interface
user interface Bar graph status Display Descriptions Battery level Battery level between 100% and 80% Green steady Battery level Battery level between 80% and 50% Green steady Battery level Battery level between 50% and 20% Green steady Battery level Battery level between 20% and 0% Green flashing Connection 2 cycles when powering on, then... - Page 13 Precautions for use and safety The tool is fitted with an electronic protection system. As soon as the tool jams due to excessive resistance, the electronic system stops the motor. Restart the tool: see the “User manual” section. We also advise keeping the tool’s protective packaging for possible returns to factory customer service.
- Page 14 servicing and maintenance All servicing and maintenance operations must be carried out with the tool disconnected from all power sources: Adapt the servicing frequencies to your tool use. Occasional use, space out the frequency. Intensive use, increase the frequency. Visual inspection of its condition Complete machine Cleaning...
-
Page 15: Safety Instruction
safety instruction IMPORTANT. To reduce the risk of electric discharges, injuries and fire when using electric tools, follow the fundamental safety measures indicated below. Read and follow these instructions before using the tool, and keep the safety instructions! Outside operations related to the use of the tool, your tool and its accessories must be disconnected and stored in their relevant packaging. -
Page 16: Warranty Conditions
The warranty cannot entitle to compensation for: The possible immobilisation of the tool during repairs. All work carried out by a person other than approved INFACO agents will cancel the tool warranty. The repair or replacement during the warranty period does not extend or renew the initial warranty. -
Page 17: Advice
Advice Keep your work area tidy. Clutter in work areas increases risks of accidents. Take into account the work zone. Do not expose electric tools to rain. Do not use electric tools in a damp or wet environment. Make sure the work area is properly lit. Do not use electric tools near inflammable liquids or gases. -
Page 18: Troubleshooting
troubleshooting Disruptions Causes Solutions Machine not powered Reconnect it Fault D01 Recharge the battery. Battery discharged Restart by pressing the trigger Fault D02 once. Too heavy strain If the problem persists, contact Mechanical jam your dealer. The machine will not start With the chain saw, check that Fault D14 the chain brake handle is present... - Page 19 To be returned to infaco To validate the warranty, REGISTER IMMEDIATELY ONLINE ON : www.infaco.com, your warranty declaration or send this form filled out IN BLOCK CAPITALS AS SOON AS THE TOOL IS PURCHASED. Name > ............Prénom > ..........
- Page 20 Serial number dealer To be kept by the dealer for the customer file customer file INFACO S.A.S. Bois de Roziès 81140 CAHUZAC-SUR VERE France...
-
Page 21: Technical Information
Technical information or customer service INFACO S.A.S. Bois de Roziès 81140 CAHUZAC-SUR VERE France Phone: (+33) 05 63 33 91 49 - Fax: (+33) 05 63 33 95 57 Email: electrocoup@infaco.fr Technical videos available on the website: www.infaco.com... - Page 22 » (order of 18 march 2002) modified by the directive 2005/88/EC (order of 22 may 2006). La personne autorisée à constituer le dossier technique au sein d’INFACO est M. ALVAREZ The person authorized to compile the technical file within the company INFACO is Grégory.
- Page 24 . i n f a c o . c o m NOT_PW3_EN_09_21 EN - User manual. Multi-function handle PW3...
