Summary of Contents for infaco EP1700p3

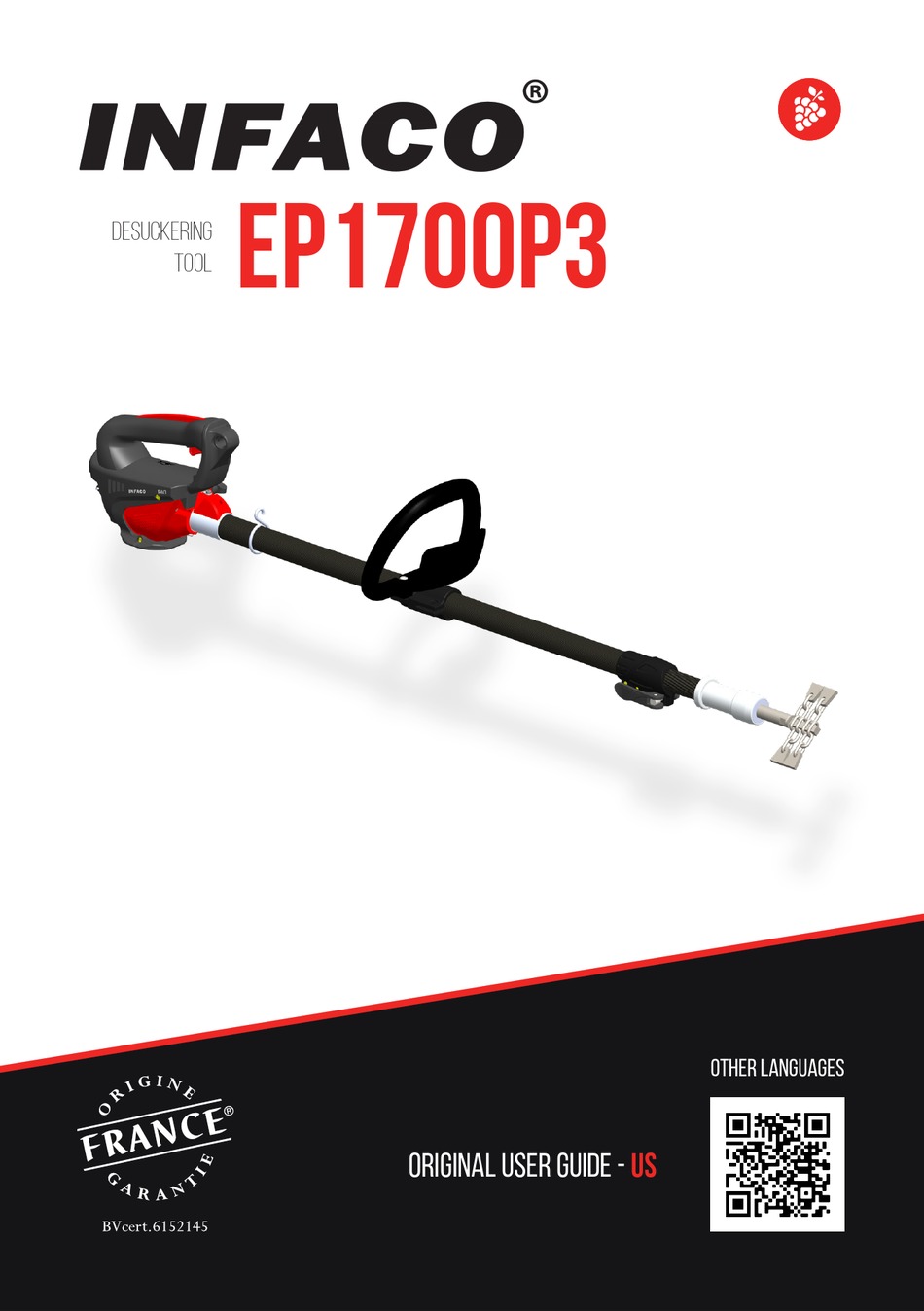

- Page 1 EP1700p3 Desuckering tool other languages original user guide -...
-
Page 3: Table Of Contents
Contents PW3, a multi-function handle Compatible tools Precautions before use Personal protection equipment Protection of the environment General product view Specifications Compatible batteries User guide Speed adjustment Tool gap adjustment Precautions for use and safety Servicing and maintenance Safety instruction Warranty conditions Advice Troubleshooting... -
Page 4: Pw3, A Multi-Function Handle
+ PWMP3 + THD600P3 + THD700P3 + PWP36RB Pole tools + PW930P3 + PW930P3 + PW930P3 + PW930P3 SC160P3 + TR9 + THD600P3 + THD700P3 + PB100P3 (hoeing) PB150P3 (hoeing) PB220P3 (hoeing) EP1700P3 PN370P3 (sweeping) PS1P3 (sarclage) EC1700P3 V5000P3EF V5000P3ET V5000P3AF... -
Page 5: Compatible Tools
Fixed sweeping pole 1430mm Brush Ø370mm. PWMP3 + PWP36RB De-cankering tool (mill diameter 36mm) PWMP3 + PWP25RB De-cankering tool (file diameter 25 mm) EP1700P3 Desuckering tool (telescopic pole 1200mm to 1600mm). EC1700P3 Blossom thinner (telescopic pole 1500mm to 1900mm). V5000p3ef Olive harvester (fixed pole 2500mm). -
Page 6: Precautions Before Use
> Power tools must not be disposed of with household refuse. > The device, accessories and packaging must be taken to a recycling centre. > Ask the approved INFACO dealer for up-to-date information on the eco- compatible elimination of waste. -
Page 7: General Product View
Specifications Reference EP1700P3 Voltage 250 W Weight PW3 + EP1700P3 2870g Lenght 1,19 m to 1,59 m Speed ajustable from 200 to 1900 tr/min These specifications are given as an indication only. Under no circumstances may they be considered as contractually binding. -
Page 8: Compatible Batteries
Compatible batteries Batterie 820Wh L850B Cable compatibility L856CC 120Wh battery 831B Cable compatibility 825S 500Wh battery L810B Cable compatibility PW225S 150Wh battery 731B Cable compatibility PW225S (requires fuse replacement by 539F20). -
Page 9: User Guide
User guide First use The first time you use the equipment, we strongly recommend you to ask the advice of your dealer, who is qualified to give you all the advice you need for correct use and optimum performance. It is imperative to carefully read the tool and accessory user manuals before handling or powering up the tool. - Page 10 Installation and connection Only use INFACO brand batteries with a 48 Volt power supply. Any use with batteries other than INFACO batteries may lead to damage. The warranty on the motorized handle will be void if batteries other than those manufactured by INFACO are used.
- Page 11 > Tighten the wing nut > Connect the power cable > Connect the battery > First power up & Exit from standby mode 2 short presses on the trigger ON > Start-up mode 1 long press on the trigger = ON Release the trigger = OFF...
-
Page 12: Speed Adjustment
Speed adjustment 10 speed settings configurable > When powering on > To switch to speed adjustment mode, press the trigger until the machine starts > Required speed is selected using successive short trigger presses. There are 10 available speed settings. Short presses to access the ten settings (1 press = 1 setting ) >... -
Page 13: Tool Gap Adjustment
Tool gap adjustment It is imperative to disconnect the machine. No movements GAP OK Presence of movements ADJUST THE GAP... -
Page 14: Precautions For Use And Safety
Precautions for use and safety The tool is fitted with an electronic protection system. As soon as the tool jams due to excessive resistance, the electronic system stops the motor. Restart the tool: see the “User manual” section. We also advise keeping the tool’s protective packaging for possible returns to factory customer service. -
Page 15: Servicing And Maintenance
Servicing and maintenance All servicing and maintenance operations must be carried out with the tool disconnected from all power sources: Adapt the servicing frequencies to your tool use. Occasional use, space out the frequency. Intensive use, increase the frequency. Visual inception Complete tool Cleaning Have check by dealer... - Page 16 Changing the rotor For transportation, storage, maintenance, tool maintenance or any other operation outside of using the tool, you must unplug the tool. Using an open-ended spanner (15), block the transmission shaft of rotor ( Release rotor turning anticlockwise by hand. If the rotor cannot be released by hand, use a pair of pliers.
- Page 17 Changing the flyweights For transportation, storage, maintenance, tool maintenance or any other operation outside of using the tool, you must unplug the tool. Remove rotor from the desuckering head (see instructions above). Remove joint, washer and then the 4 worn flyweights ( Replace the flyweights in the original position ( Put washer into position and then joint.
-
Page 18: Safety Instruction
Safety instruction IMPORTANT. To reduce the risk of electric discharges, injuries and fire when using electric tools, follow the fundamental safety measures indicated below. Read and follow these instructions before using the tool, and keep the safety instructions! Outside operations related to the use of the tool, your tool and its accessories must be disconnected and stored in their relevant packaging. -
Page 19: Warranty Conditions
The warranty cannot entitle to compensation for: The possible immobilisation of the tool during repairs. All work carried out by a person other than approved INFACO agents will cancel the tool warranty. The repair or replacement during the warranty period does not extend or renew the initial warranty. -
Page 20: Advice
Advice Keep your work area tidy. Clutter in work areas increases risks of accidents. Take into account the work zone. Do not expose electric tools to rain. Do not use electric tools in a damp or wet environment. Make sure the work area is properly lit. Do not use electric tools near inflammable liquids or gases. -
Page 21: Troubleshooting
Troubleshooting Perturbations Causes Solutions Démonter et remonter la lame en Bad brush clamp suivant la procédure Significant abnormal vibrations Régler le jeu de lame en suivant la Faulty Tool Detection procédure et contacter le reventeur si nécessaire Flyweight breakage Wear Remplacer la masselotte cassée Noise in the extension Extension guide damaged... - Page 23 To be returned to infaco To validate the warranty, REGISTER IMMEDIATELY ONLINE ON : www.infaco.com, your warranty declaration or send this form filled out IN BLOCK CAPITALS AS SOON AS THE TOOL IS PURCHASED. Name > ............Prénom > ..........
- Page 24 Serial number dealer To be kept by the dealer for the customer file customer file...
-
Page 25: Technical Information
Technical information or customer service INFACO S.A.S. Bois de Roziès 81140 CAHUZAC-SUR VERE France Phone: (+33) 05 63 33 91 49 - Fax: (+33) 05 63 33 95 57 Email: contact@infaco.fr Technical videos available on the website: www.infaco.com... - Page 26 Messunsicherheit // Incerteza 1,5 m/s • The person authorized to compile the technical file within the company INFACO is Mr. Gregory ALVAREZ. Die für die Erstellung der technischen Unterlagen bei INFACO berechtigte Person ist ALVAREZ Grégory. A pessoa autorizada a compilar o processo técnico na INFACO é o Sr. Gregory ALVAREZ.
- Page 28 . i n f a c o . c o m US - User manual - Desuckering tool EP1700P3 NOT_EP1700P3_US_05_22...
