Summary of Contents for Becker TLF 2.250

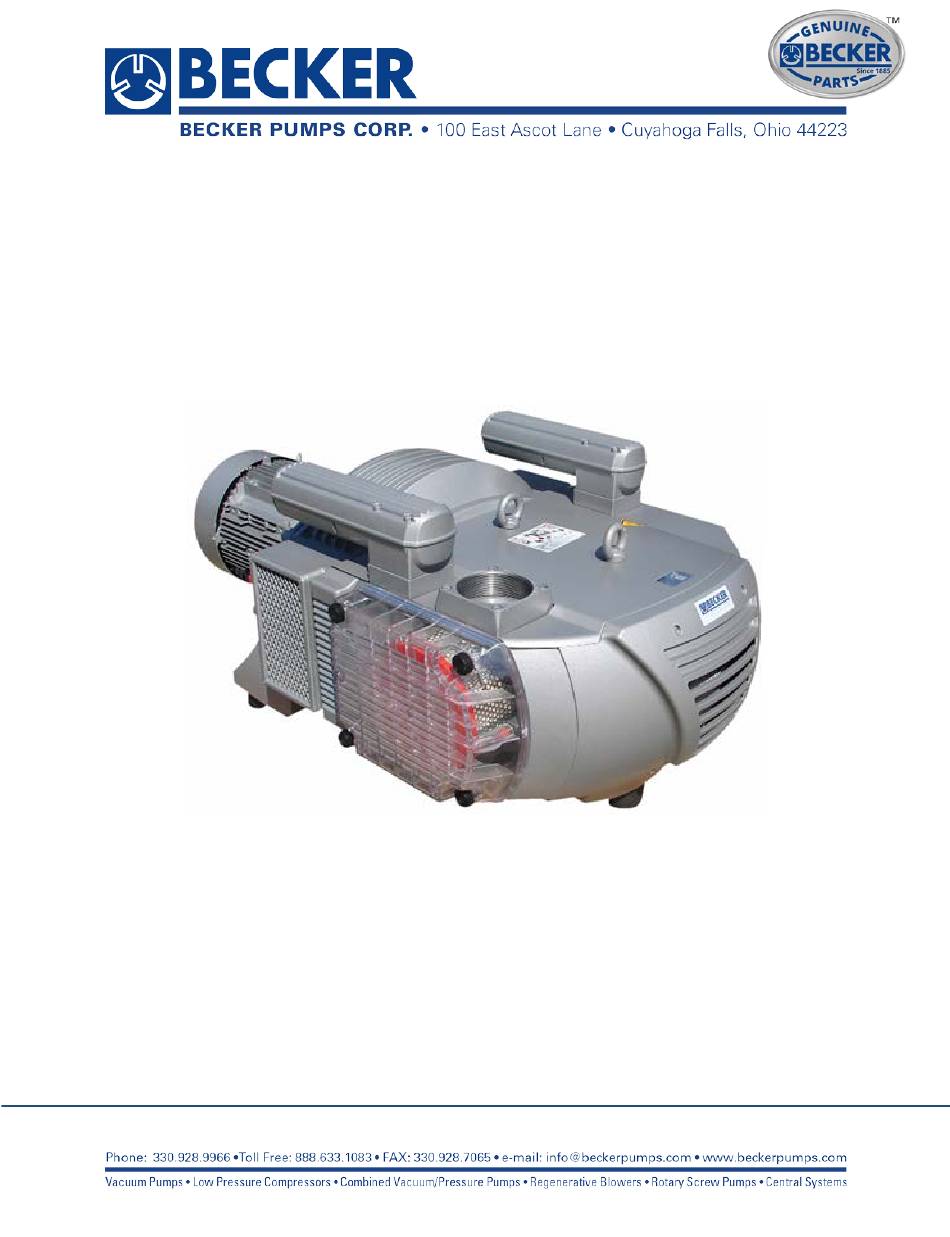

- Page 1 Maintenance Walkthrough TLF 2.250...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PREVENTATIVE MAINTENANCE SCHEDULE ......................1 PUMP OVERVIEW ................................2 CHANGING FILTERS ..............................3 CHANGING FILTERS ..............................4 GREASING ..................................5 CHECKING AND CHANGING VANES ..........................6 CHECKING AND CHANGING VANES ..........................7 CHECKING AND CHANGING VANES ..........................8 CHECKING AND CHANGING VANES .......................... -
Page 3: Preventative Maintenance Schedule
Maintenance: Preventative Maintenance Schedule: Every 40 to 200 Hours • o Check and clean air intake filter. Every 4 filter cleanings a new filter should be installed and minimally every year. o Blow dust and debris off outside of pump Every 3000 Hours •... -
Page 4: Pump Overview
Pump Overview VTLF 2.200-3.60 *(SK) VTLF 2.400-2.500... -
Page 5: Changing Filters
Changing filters Every 40-200 Hours: • o If installed Check and clean air intake filter. o Max of 4 blast air filter cleanings. A new filter should be installed if clogged. A new filter should be installed annually. Remove the 4 hand knobs SK Version has two smaller filters below main filter chamber... -
Page 6: Changing Filters
Changing filters o Remove all air filters and check for contamination. o Blowing out the air filter with compressed air is not always enough. o Use a flashlight or hold up to a light source. You should be able to see light coming through the filter. -
Page 7: Greasing
Greasing Grease Bearings Every 3000 Hours: • o Place the filter back over the non-return valve. o Remove the plastic caps covering the grease ports. o 25 times in each fitting o Grease while running Grease gun part number = 74330500000... -
Page 8: Checking And Changing Vanes
Checking and Changing Vanes 1. Remove the air guide cover. 2. Remove all of the M13 end-shield bolts. 13mm socket... -
Page 9: Checking And Changing Vanes
Checking and Changing Vanes 3. Use 2 of the removed M5 bolts found on the air guide cover and thread them into the empty threaded jack holes. 4. Tighten bolts to pull off the end-shield. -
Page 10: Checking And Changing Vanes
Checking and Changing Vanes 1. Remove the vanes. Tip: 2.400-2.500 units have 2 vanes per slot. Gently remove the back sets with long pliers. 2. Measure the height and compare the value against the min spec listed on the maintenance sticker. 3. -
Page 11: Checking And Changing Vanes
Checking and Changing Vanes 1. Wipe away any grease from the rotor, clean up the end-shield and vane slots. 2. Use Scotch Brite™ to clean surfaces. Do not remove large amounts metal. (No machining.) 3. Brake Cleaner can be used to clean with. 3. -
Page 12: Checking And Changing Vanes
Checking and Changing Vanes... -
Page 13: Checking And Changing Vanes
Checking and Changing Vanes 1. Align the guide pins back up and insert them into the tolerance holes. 2. Take care when installing. If the pins are not inserted correctly, the internal components may contact! Incorrect! 3. Insert all of the End-shield bolts back and fasten the end-shield onto the housing. 4. -
Page 14: Vane Breakage
Pump was not configured for altitude. Too much discharge plumbing. Rotor has swelled due to overheating and contacted the end-shields. If you see signs of contact, call your Local Becker representative. • Rotor - contact End-Shield - contact Cupping Chipping... -
Page 15: Vane Breakage
Vane Breakage Cleaning: 1. Remove all side covers and open the working chamber. 2. Use compressed air and clean out all broken pieces of vanes. 3. Clean out the discharge side and blow off valve. 4. Wipe clean with Brake Cleaner. 5. -
Page 16: Spare Parts Overview
Spare Parts Overview Maintenance Kits VTLF 2.200/250 Non SK 338038M0000 VTLF 2.250 SK 338037M0000 VTLF 2.400/2.500 338068M0000 Included in Kit: o Carbon Vanes o Grease o Filters Click the Becker Logo for Operation instructions and Spare parts lists Visit www.Beckerpumps.com... -
Page 17: Accessories
Accessory Options 1. Digital Vacuum Gauge: a. Becker Digital 0-30” Vacuum Gauge. 2. Liquid Fill Vacuum Gauge: a. Becker Liquid Fill 0-30” Vacuum Gauge. 3. Cyclonic Filter: a. Relief Valve Filter 4. External Filter Assembly with Check Valve and Gauge: a. -
Page 18: Accessories
Input = 230V, 460V, 575V 3-Phase. 7. Manual Motor Starter: a. Protects the motor from overload. 8. Zerk Fitting Conversation kit W/ Industrial Grease Gun: 9. Spin Meister for extreme filtration: Click the Becker Shop Logo below or visit www.Beckerpumps.com/shop...
