Hanna Instruments HI8314 Instruction Manual

Portable pH/mV/ºC meter
1.800.561.8187
Instruction Manual
HI8314
www.
Dear Customer,
Thank you for choosing a Hanna Instruments product. This
manual will provide you with the necessary information for the
correct operation of the meter. Please read it carefully before
using the meter. If you need additional technical information,
do not hesitate to e-mail us at tech@hannainst.com.
The instrument is in compliance with CE directives.
PRELIMINARY EXAMINATION
Remove the instrument from the packing material and examine
it carefully to make sure that no damage has occurred during
shipment. If there is any damage, please contact your local
Hanna Instruments Office.
The meter is supplied complete with:
• HI1217D pH electrode
• calibration and cleaning solution sachets
• 9 V battery, calibration screwdriver and instructions
• quality certificate
Note: Conserve all packing material until the instrument
has been observed to function correctly. Any defective item
must be returned in its original packing.
GENERAL DESCRIPTION

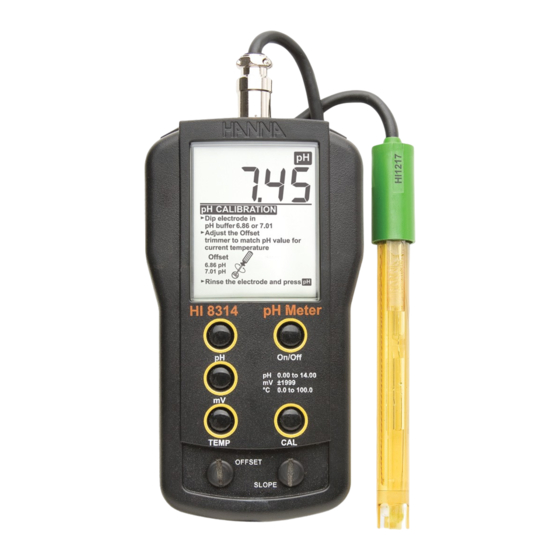

HI8314 is an hand-held pH/ mV/ temperature meter designed
to be rugged, easy-to-use, reliable and practical.
It is ideal for education and for measurements on the field.
The pH, mV and temperature ranges are easily selected using
the rubber keyboard on the front panel.
Calibration procedure is very simple with clear help messages
displayed on LCD and adjustments are easily made with two
trimmers on the front panel.
The built-in temperature sensor in the pH electrode allows
automatic temperature compensation of pH readings.
Moreover, HI8314 features a low battery indicator that alerts
the user when the battery needs to be replaced.
