WARNING: Risk of Electric Shock
• If you are not experienced with proper wiring practices, consult a qualified electrician.
• All wiring must comply with local and national electrical codes.
• Before wiring ensure power is turned off at the fuse box or circuit breaker panel.
Technical Specifications
Housing Size (H x W x D)
Supply Voltage
Switching Capacity
Detection Angle of Sensor
Sneak-by Guard
Swiveling range of sensor
Range over which detection is
adjustable
"On" time:
Sensor Range
Type of enclosure
Lamps (not included)
Installation

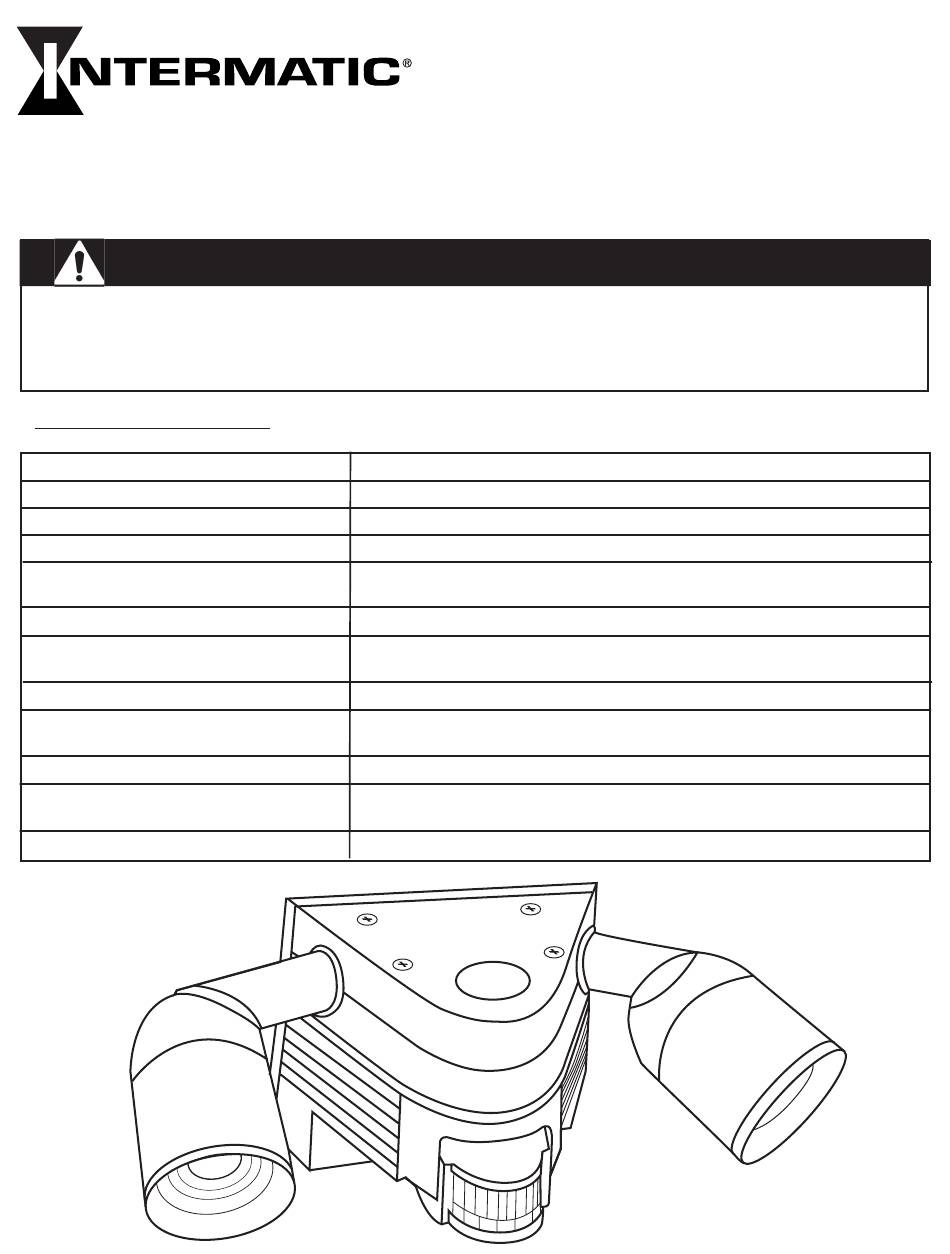

FL300MSW Instruction Manual
Two Head Flood Light with Motion Sensor
3 1/2" X 2 4/5" X 4 1/2"
120 V / 60Hz
Maximum 300 Watts
140˚ Horizontal / Plane A (10 zones)
90˚ Horizontal / Plane B (6 zones)
8˚ Vertical
130˚ Horizontal, 65˚ Vertical
270˚ Horizontal
10 seconds to 15 Minutes, adjustable
Minimum 40' in front, 23 Feet at sides (based on 10'
Rain tight
Maximum 150 Watt Par 38 or Quartz flood lamps
PL fluorescent flood with low temp start
Wall mount or soffit/eave mount applications
