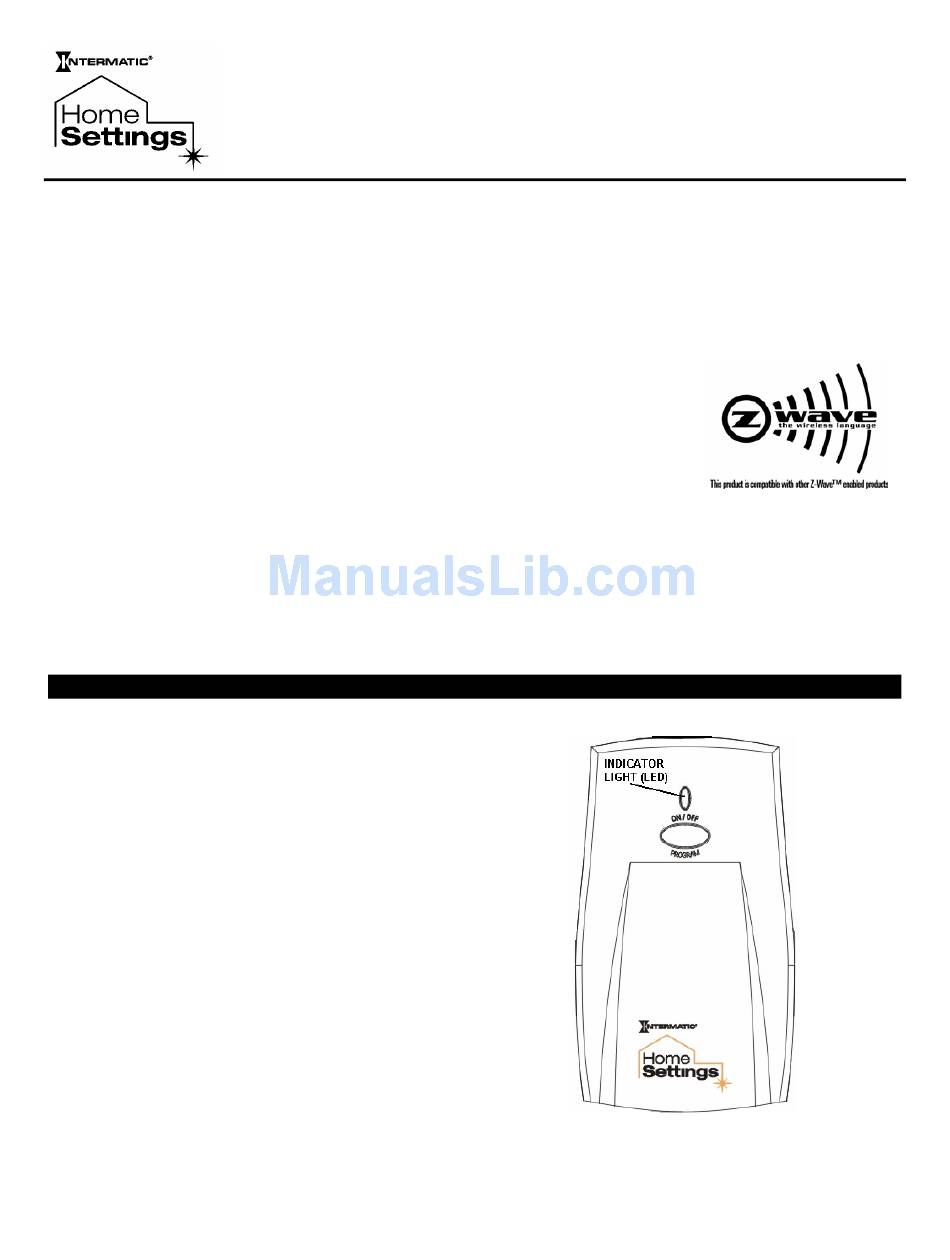

Intermatic HA04 Supplementary Manual

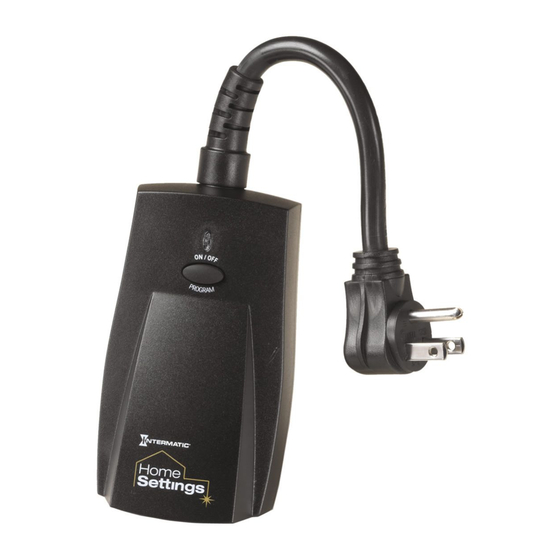

OUTDOOR APPLIANCE MODULE
Thank you for purchasing Intermatic's HomeSettings devices. With the HomeSettings program you
can reliably and remotely control lighting and appliances.
The outstanding features of the HomeSettings HA04 Outdoor Appliance Module includes:
•
Feedback that will allow you to see whether your device has received the ON/OFF (you cannot
DIM with this module) signal.
•
RF signal reliability – each HomeSettings product has a special feature that virtually
guarantees that RF signals are received
•
Ease of installation
•
Manual override
•
Weather resistant
•
Compatible with other Z-wave™ enabled devices
The HA04 Outdoor Appliance Module is a Z-wave™ enabled device and is fully compatible with any
Home Settings network and any Z-wave™ enabled network. Z-wave™ enabled devices displaying the
Z-wave™ logo can also be used with Home Settings modules and controllers regardless of the
manufacturer, and Home Settings modules and controllers can also be used in other manufacturer's
Z-wave™ enabled networks
repeater. Repeaters will re-transmit the RF signal to ensure that the signal is received by its intended
destination by routing the signal around obstacles and radio dead spots.
1. Plug the HA04 Outdoor Appliance Module into a
120VAC, 60Hz outlet.
2. Plug a lamp or appliance into the module.
3. Turn the knob or switch on the lamp or appliance to the
ON position.
4. To manually turn ON the HA04 Outdoor Appliance
Module, press and release the ON/OFF/PROGRAM
button. The green indicator LED will turn ON, and the
lamp or appliance plugged into the HA04 Outdoor
Appliance Module will also turn ON.
5. To manually turn OFF the HA04 Outdoor Appliance
Module, simply
ON/OFF/PROGRAM button. The green indicator will
turn OFF and the lamp or appliance plugged into the
HA04 Outdoor Appliance Module will also turn OFF.
If the lamp does not turn ON, check to make sure that the power switch for your lamp is turned to the
"ON" position, and check to make sure that your lamp is operating properly.
NOTE: This module must be mounted in a vertical position with the receptacle facing
downward and with the receptacle not reaching ground level.
Intermatic, Inc. Spring Grove, IL 60061 www.intermatic.com
MODEL HA04
. Each module in a Home Settings network is designed to act as a

INSTALLATION

press and release
Suitable for Indoor & Outdoor Use
in Dry, Damp, & Wet Locations
