Intermatic HA03 Supplementary Manual

Thank you for purchasing Intermatic's HomeSettings devices. With the HomeSettings program you
can reliably and remotely control lighting and appliances.
The outstanding features of the HomeSettings HA03 Plug-in Lamp Dimmer Module includes:
•
Feedback that will allow you to see whether your device has received the ON/OFF/DIM signal.
•
RF signal reliability – each HomeSettings product has a special feature that virtually
guarantees that RF signals are received
•
Ease of installation
•
Manual override
•
Compatible with other Z-wave™ enabled devices

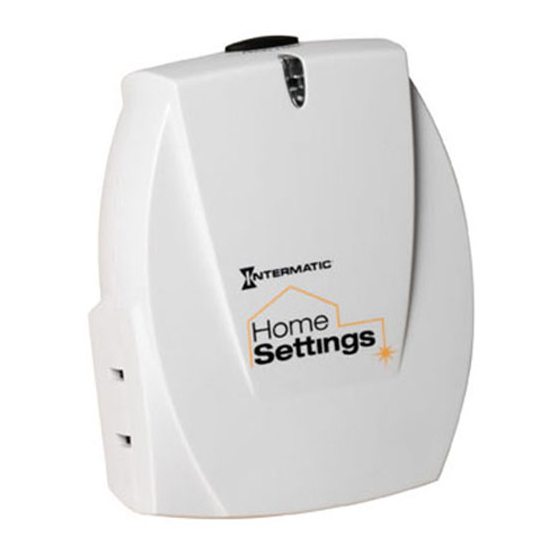

The HA03 Lamp Module is a Z-wave™ enabled device and is fully compatible with any Home Settings
network and any Z-wave™ enabled network. Z-wave™ enabled devices displaying the Z-wave™ logo
can also be used with Home Settings modules and controllers regardless of the manufacturer, and
Home Settings modules and controllers can also be used in other manufacturer's
networks
. Each module in a Home Settings network is designed to act as a repeater. Repeaters will
re-transmit the RF signal to ensure that the signal is received by its intended destination by routing the
signal around obstacles and radio dead spots.
1. Plug the HA03 Lamp Module into a 120VAC, 60Hz
outlet.
2. Plug a lamp into the module. (Not for use with
fluorescent lights, motor loads, or magnetic or
electronic transformers.)
3. Turn the knob or switch on the lamp to the ON position.
4. To manually turn ON the HA03 Lamp Module, press
and release the Program/ON/OFF/DIM button. The
green indicator LED will turn ON, and the lamp plugged
into the HA03 Lamp Module will also turn ON.
5. To manually turn OFF the HA03 Lamp Module, simply press and release the
Program/ON/OFF/DIM button. The green indicator will turn OFF and the lamp plugged into the
HA03 Lamp Module will also turn OFF.
6. To manually dim the HA03 Lamp Module, press and hold the Program/ON/OFF/DIM button until
the desired lighting level has been reached.
If the lamp does not turn ON, check to make sure that the power switch for your is turned to the "ON"
position, and check to make sure that your lamp is operating properly.
Intermatic, Inc. Spring Grove, IL 60061 www.intermatic.com
MODEL HA03
LAMP MODULE

INSTALLATION

For Indoor Use Only
Z-wave™ enabled
