Intermatic HA05 Supplementary Manual

Thank you for purchasing Intermatic's HomeSettings devices. With the HomeSettings program you can reliably
and remotely control lighting and appliances.
The outstanding features of the HomeSettings HA05 Screw-in Lamp Module includes:
•
Feedback that will allow you to see whether your device has received the ON/OFF (you cannot DIM with
this module) signal.
•
RF signal reliability – each HomeSettings product has a special feature that virtually guarantees that
RF signals are received
•
Ease of installation
•
Manual override
•
Weather resistant housing
•
Controls compact fluorescent lights up to 42 Watts
•
Compatible with other Z-wave™ enabled devices
The HA05 Screw-in Lamp Module is a Z-wave™ enabled device and is fully compatible with any Home Settings
network and any Z-wave™ enabled network. Z-wave™ enabled devices displaying the Z-wave™ logo can also
be used with Home Settings modules and controllers regardless of the manufacturer, and Home Settings
modules and controllers can also be used in other manufacturer's Z-wave™ enabled networks. Each module in a
Home Settings network is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that
the signal is received by its intended destination by routing the signal around obstacles and radio dead spots.
1. Screw the HA05 Screw-in Lamp Module into a
medium base lampholder that supplies 120VAC,
60Hz.
2. Screw a lightbulb (up to 300 Watts open-air
installation) or a compact fluorescent bulb
(up to 42 Watts) into the module.
3. To manually turn ON the HA05 Screw-in Lamp
Module, press and release the Program/ON/OFF
button. The green indicator LED will turn ON, and
the lightbulb screwed into the HA05 Screw-in Lamp
Module will also turn ON.
4. To manually turn OFF the HA05 Screw-in Lamp
Module, simply press and release the
Program/ON/OFF button. The green indicator will
turn OFF and the lightbulb screwed into the HA05
Screw-in Lamp Module will also turn OFF.
If the lightbulb does not turn ON, check to make sure that the lightbulb is seated properly, and check to make
sure that your lightbulb is not broken or defective.

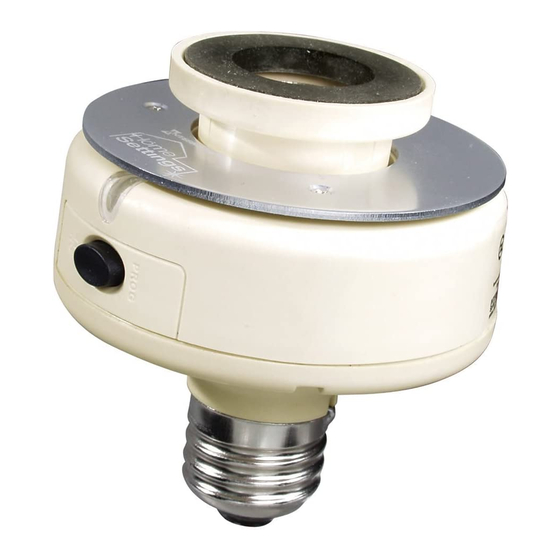

MODEL HA05
SCREW-IN LAMP MODULE
Intermatic Inc., Spring Grove, IL 60081- 9698 www.intermatic.com

INSTALLATION

For use in dry, damp or
wet locations.
